Description

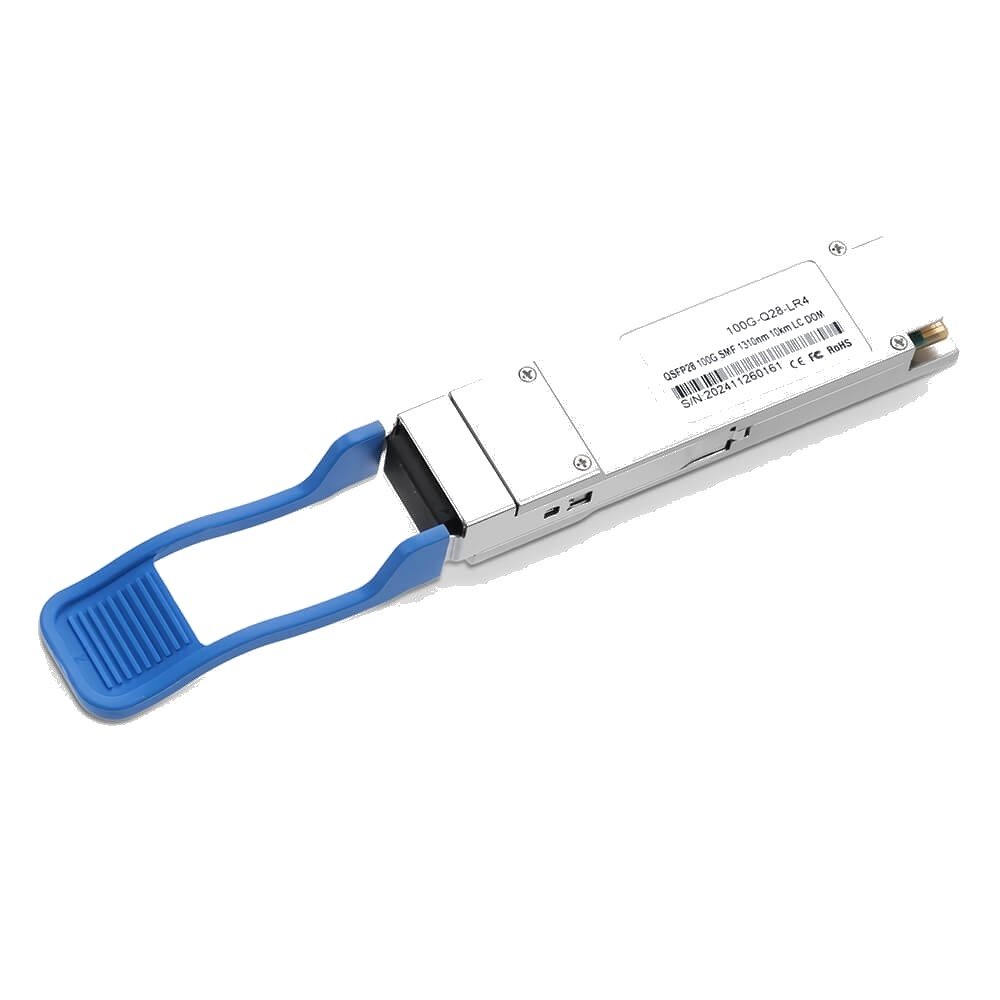

The ABPTEL QSFP-100G-LR4 optical transceiver is a high-performance and cost-effective solution for 100G Ethernet long-reach applications. Designed in QSFP28 form factor, this module supports the 100GBASE-LR4 IEEE 802.3ba standard and provides reliable data transmission over single-mode fiber (SMF) up to 10 kilometers.
With a 1310nm wavelength and duplex LC connector, the module ensures stable optical interfacing for large-scale data center interconnects, carrier networks, and cloud infrastructure. Its low power consumption of ≤3.5W makes it an energy-efficient choice for demanding high-speed environments.
The ABPTEL QSFP-100G-LR4 is compliant with QSFP28 MSA, SFF-8636, SFF-8665, and features Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of operating parameters. Fully compatible with Cisco and other major vendors’ networking equipment, it offers flexibility and scalability for modern optical networking needs.
Specifications
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 103.125 Gbps |
| Wavelength | 1310nm |
| Max Distance | 10km (SMF) |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | LWDM DFB |
| Receiver Type | PIN |
| TX Power | -4.3 ~ -4.5 dBm |
| Receiver Sensitivity | < -8.6 dBm |
| Power Consumption | ≤3.5W |
| Temperature Range | 0 ~ 70°C (32 ~ 158°F) |
| Relative Humidity | 5% ~ 85% |
| Protocols | QSFP28 MSA, SFF-8636, SFF-8665, IEEE 802.3bm, RoHS |
| Applications | 100G Ethernet, Data Center Interconnect, Carrier Networks |
Key Benefits
- 🚀 High-Speed Performance – Supports 100GBASE-LR4 with up to 103.125Gbps throughput.
- 🌐 Long-Distance Reach – Delivers up to 10km transmission over single-mode fiber (SMF).
- 🔌 Broad Compatibility – Cisco compatible and interoperable with multiple vendors.
- ⚡ Energy Efficient – Low power consumption ≤3.5W, reducing operational costs.
- 🛠 Easy Integration – Standard QSFP28 form factor with LC duplex interface for seamless deployment.
- 📊 Enhanced Monitoring – Supports DOM/DDM for real-time diagnostics and network reliability.
