Description

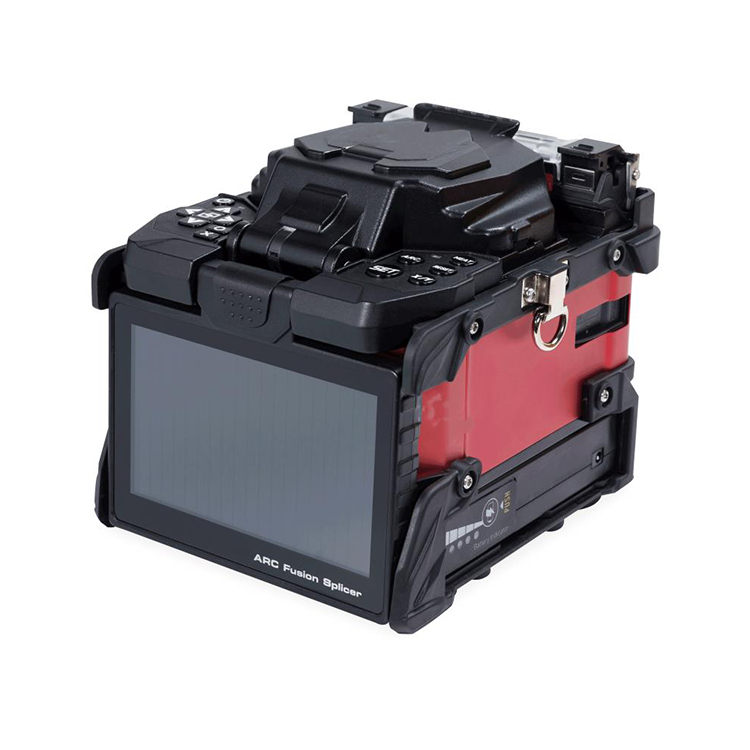

Fttx Active Cladding Alignment Fusion Splicer FST-16S 4 Motors Ftth Optical Fiber Fusion Splicer Machine | Fiber Optic Fusion Splicer | ABPTEL by ABPTEL.
Professional grade product for telecom and data center applications.
Specifications
| Number of Fiber | Single |
| Appicable Fibers | SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) |
| Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable |
| Cleaved Length | Diameter: 0.125-1mm/Cleave Length:8-16mm |
| Cladding Diameter | 80- 150 μm |
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes |
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
| Typical Splice Loss | SM: 0.03dB 1 MM: 0.02dB/ DS: 0.05dB 1 NZDS: 0.05 dB/ G.657: 0.03dB (ITU-T Standard) |
| Return Loss | ≥60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode: 6s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20-60mm |
| Heating Time | Quick heating time: 13s, typical heating time: 30s |
| Results Storage | 20000 latest records & 200 images |
| Tension Test | 1.96 – 2.25N |
| Display | 90° bi-directional view, 5.0″ Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y: 400X Magnification |
| Power Supply | AC Input 100 – 240V, DC Input 12- 15V |
| No. of Splice/Heating with Battery | 5200mAh Battery Capacity, Typical 250 times (Splice + Heat) |
| Operating Methods | Button/Touch Screen |
| Automatic Calibration | Automatic ARC calibration by air pressure and temperature |
| Electrode Life | 5000 arcs |
| Terminal | Mini USB 2.0 |
| Weight | 2.2 KG (with battery)/ 1.8 KG (without battery) |
| Dimension | 130W*160L*145H (excluding rubber bumper) / 140W*165L*145H (including rubber bumper) |
| Operating Condition | Operating Altitude 0-5000m above sea level, 0-95% relative humidity,-10~50℃, max wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80℃ |
Features
- Fiber Optic Fusion Splicer
- Fiber Fusion Splicer
- Fusion Splicer
- Fiber Fusion Splicer Machine
- Optical Fiber Fusion Splicer
Contact ABPTEL for specs, bulk pricing, and OEM solutions.
