Description

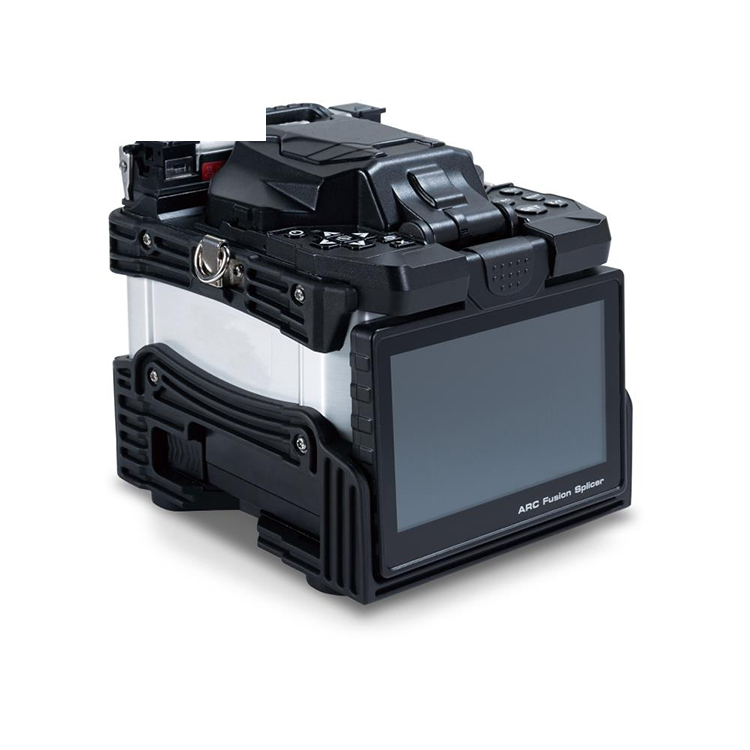

High Precise 6 Motors Backbone Fusion Splicer FST-V9 Ftth Optical Fiber Fusion Splicer Machine | Fiber Optic Fusion Splicer | ABPTEL by ABPTEL.
Professional grade product for telecom and data center applications.
Specifications
| Number of Fiber | Single |
| Appicable Fibers | SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) |
| Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable |
| Cleaved Length | Diameter: 0.125-1mm/Cleave Length:8-16mm |
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes |
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
| Typical Splice Loss | 0.01-0.05dB |
| Return Loss | ≥60dB |
| Lighting | 3 high-power LED white light |
| Splicing Time | 6-12s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20-60mm |
| Heating Time | Quick heating time: 13s, typical heating time: ≥20s |
| Results Storage | 2000 latest records |
| Tension Test | 1.5 – 2.0N |
| Display | 90° bi-directional view, 5.0″ Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y: 500X Magnification |
| Power Supply | AC Input 100 – 240V, DC Input 12- 15V |
| No. of Splice/Heating with Battery | 5200mAh Battery Capacity, Typical 280 times (Splice + Heat) |
| Operating Methods | Button/Touch Screen |
| Automatic Calibration | Automatic ARC calibration by air pressure and temperature |
| Electrode Life | 3000 arcs |
| Terminal | Mini USB 2.0 |
| Weight | 2.3 KG (with battery) |
| Dimension | 140W*165L*160H |
| Operating Condition | Operating Altitude 0-5000m above sea level, 0-95% relative humidity,-10~50℃, max wind 15m/s |
| Storage Condition | Relative humidity 0-95%, -40~80°C, battery storage: -20~30°C long-term |
Features
- Fiber Optic Fusion Splicer
- Fiber Fusion Splicer
- Fusion Splicer
- Fiber Fusion Splicer Machine
- Optical Fiber Fusion Splicer
Contact ABPTEL for specs, bulk pricing, and OEM solutions.
