Description

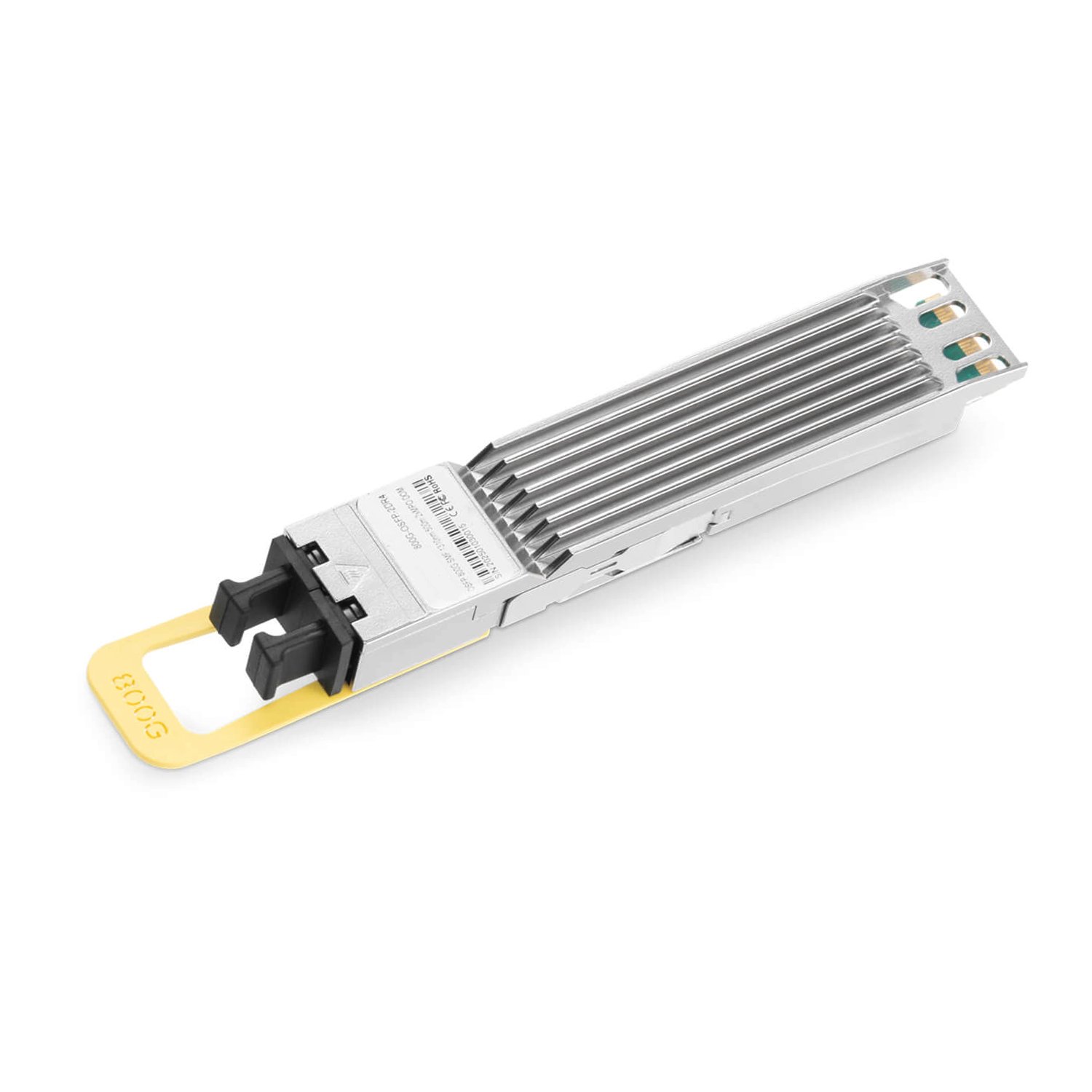

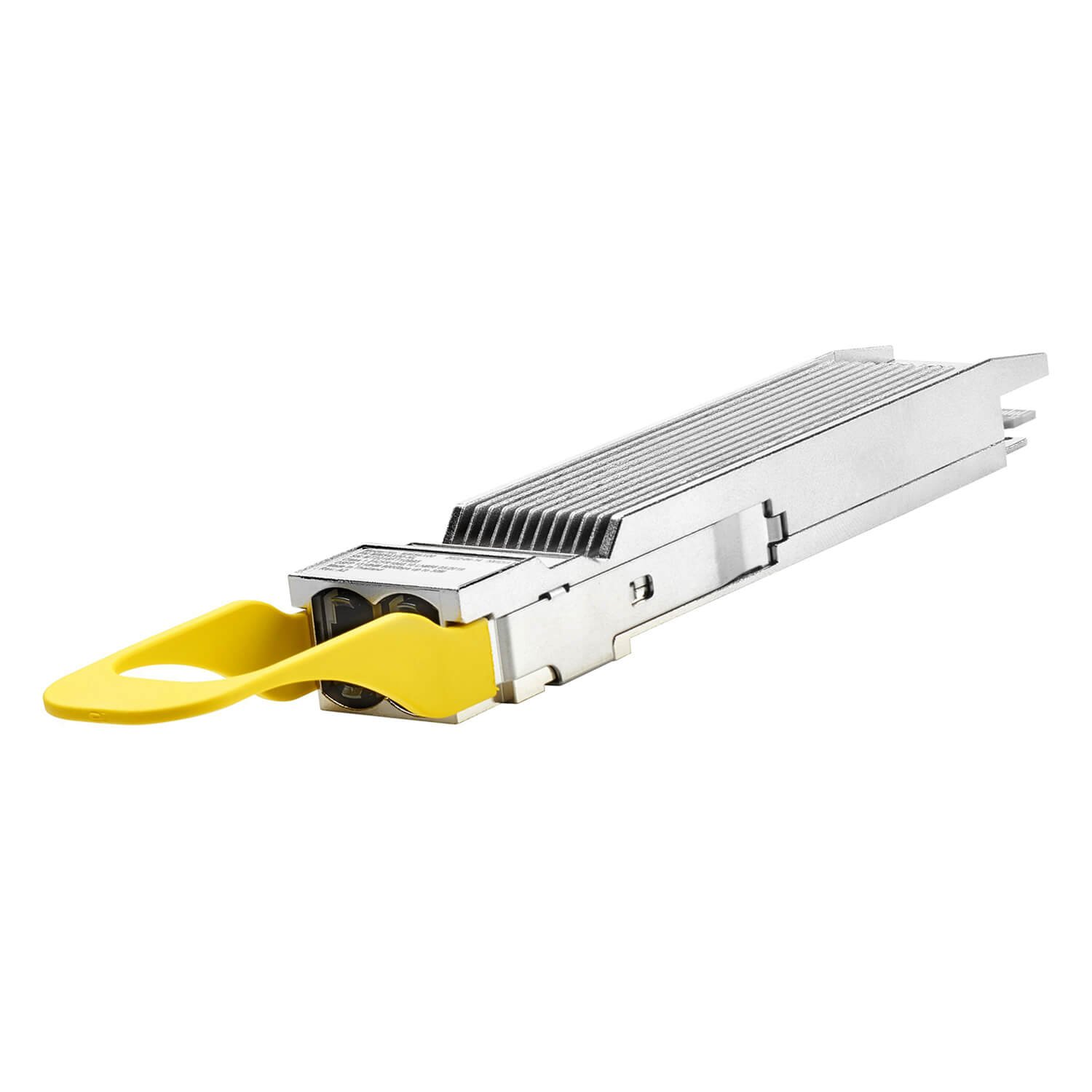

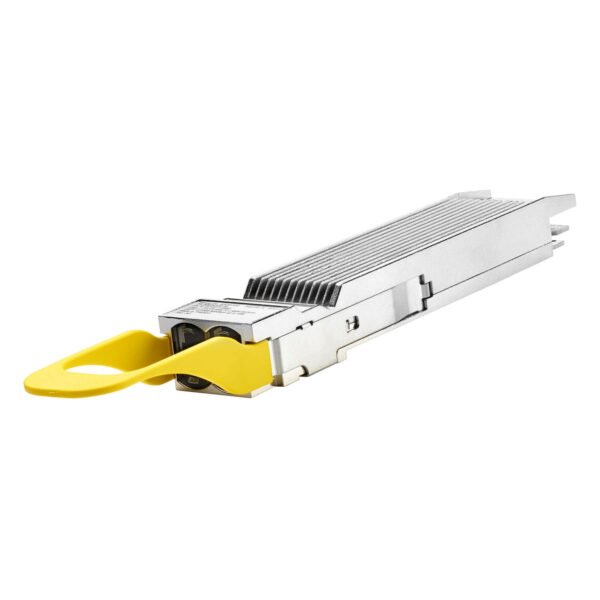

The ABPTEL 800G-OSFP-2DR4 is a high-performance, cost-effective optical transceiver module designed for 800 Gigabit Ethernet applications in advanced data communication networks.
Compliant with the OSFP Multi-Source Agreement (MSA), this module is optimized for deployment in switches, routers, and high-density data center environments, supporting optical links up to 500m over single-mode fiber (SMF).
It converts eight electrical lanes (106.25Gb/s each) into eight parallel optical lanes at 106.25Gb/s using PAM4 modulation, achieving an aggregate bandwidth of 850Gbps. With EML transmitters, PIN receivers, and ≤16.5W power consumption, the 800G-2DR4 ensures efficient, low-latency, and reliable bidirectional transmission.
Fully compliant with OSFP MSA, CMIS 5.1, and RoHS standards, the ABPTEL 800G OSFP 2xDR4 is ideal for AI/HPC clusters, InfiniBand NDR, and cloud data centers requiring ultra-high-bandwidth connectivity across medium-reach links.
Specifications
Parameter | Specification |
---|---|
Form Factor | OSFP |
Max Data Rate | 850Gbps |
Wavelength | 1310nm |
Media | SMF |

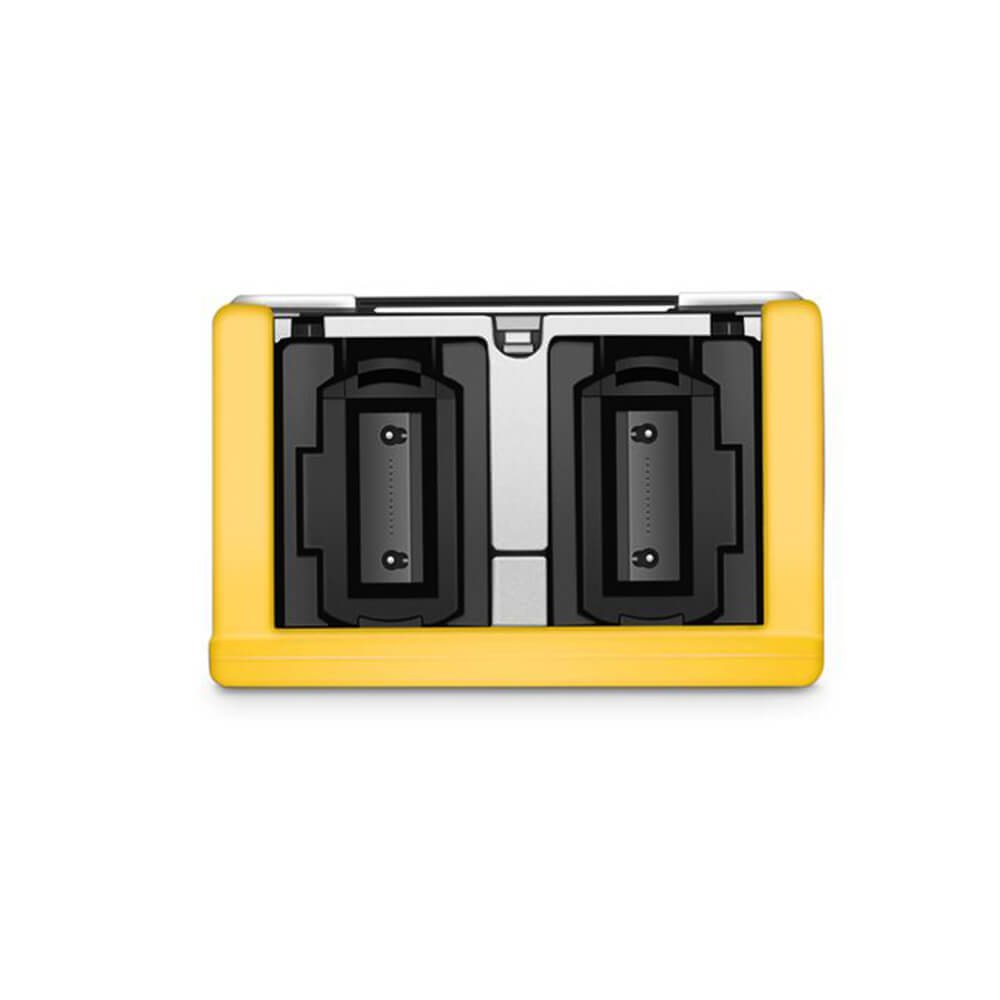

Connector | Dual MPO-12 APC |
Transmitter Type | EML |
Receiver Type | PIN |
TX Power | –2.9 ~ 4dBm |
Receiver Sensitivity | < –5.9dBm |
Electrical Modulation | 8 × 106.25Gb/s PAM4 |
Optical Modulation | Twin port 4 × 106.25Gb/s PAM4 |
Power Consumption | ≤16.5W |
CBit Error Ratio (BER) | 1.0E-12 |
Temperature Range | 0 ~ 70°C (32 ~ 158°F) |
Operating Humidity | 5% ~ 85% |
Host FEC | Supported |
DDM/DOM | Supported |
Protocols | OSFP MSA, CMIS 5.1, RoHS |
Max Cable Distance | 500m |
Main Applications | 800G Ethernet, InfiniBand NDR, Data Center Interconnect, AI/HPC Networks |
Key Benefits
- High-speed 800G OSFP 2xDR4 for 500m SMF medium-reach interconnects
- Operates at 1310nm with Dual MPO-12 APC connectors for parallel optical links
- Advanced PAM4 modulation for efficient data transmission and low BER
- Low-latency design optimized for AI/HPC and cloud data center applications
- Fully compliant with OSFP MSA, CMIS 5.1, RoHS
- Compatible with Juniper, Arista, Cisco, NVIDIA, Dell, HPE platforms

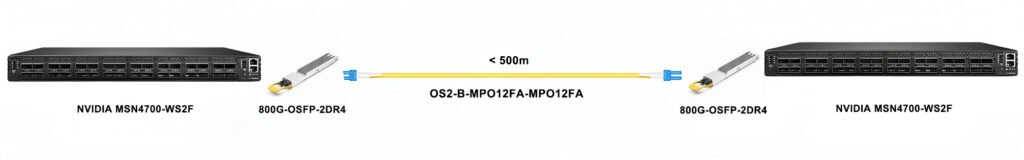

Application Scenarios
