Description

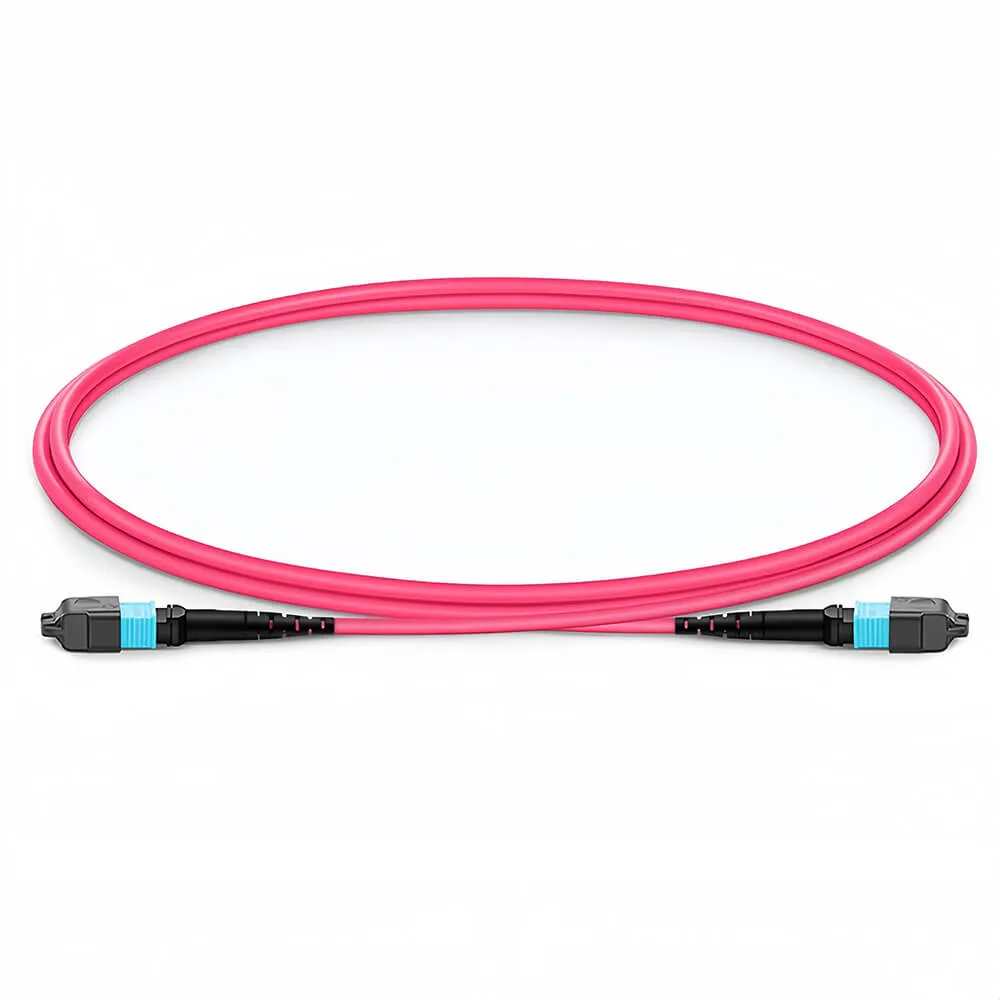

The ABPTEL 1m (3ft) MTP®-12 UPC Female to Female Jumper OM4 Multimode, 12 Fibers, Type B, Magenta, Plenum (OFNP) is designed for high-density fiber patching in modern data centers.
MTP/MPO jumpers offer a cost-effective and efficient alternative to traditional field terminations, enabling quick installation and simplified cable management. Typically used for in-cabinet patching, they also ensure a smooth migration path to higher data rates when combined with MTP® trunk cables.
Thanks to its MTP-12 design (also backward-compatible with MTP-8 systems), this jumper supports parallel optical transceiver applications such as 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4.
Equipped with US Conec MTP® connectors, the cable is fully compliant with MPO standards, delivering enhanced precision, patented performance features, and proven reliability compared to generic MPO alternatives. With ≤0.35dB low insertion loss and plenum-rated (OFNP) magenta jacket, it ensures superior performance, safety, and space savings in high-density environments.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | MTP®-12 UPC (Female to Female) Jumper Cable |
| Brand | ABPTEL |
| Fiber Count | 12 Fibers |
| Fiber Type | OM4 Multimode, 50/125µm |
| Connector Type | MTP®-12 UPC Female to MTP®-12 UPC Female (US Conec) |
| Polarity | Type B (Straight-through) |
| Jacket Material | Plenum (OFNP), Magenta |
| Cable Diameter | 3.0mm |
| Length | 1m (3ft), customizable |
| Insertion Loss | ≤0.35dB (Typical ≤0.15dB) |
| Return Loss | ≥20dB |
| Operating Temperature | -10 to 60°C (14 to 140℉) |
| Storage Temperature | -10 to 70°C (14 to 158℉) |
| Compliance | TIA/EIA-568, IEC 61754-7, RoHS, REACH |
Key Benefits
- High-Density Solution – Optimized for cabinet patching and structured cabling.
- Future-Ready – Supports 40G QSFP+ and 100G QSFP28 SR4 parallel optics.
- Superior Optical Performance – ≤0.35dB low insertion loss ensures stable data transmission.
- US Conec MTP® Connectors – Enhanced precision, patented features, and proven durability.
- Space-Saving Design – Reduces cable congestion in high-density racks.
- ABPTEL Assurance – Factory-terminated and 100% tested for reliability and compliance.
