Polarity is the most common reason a freshly cabled data center link doesn’t work on day one.
The fiber is good. The transceivers are good. The cable insertion loss tests fine. But signal won’t pass — because transmit on one end connects to transmit on the other. I’ve seen this on projects ranging from a 12-port test lab to a 10,000-port hyperscale deployment. Every time, the root cause is the same: MPO polarity wasn’t specified before cables were ordered.
Polarity Types at a Glance
| Type | Key Orientation | Fiber Mapping (12F) | Use Case |
|---|---|---|---|
| Type A | Key-up → Key-down | 1→1, 2→2 … 12→12 (straight) | Cassette-based structured cabling (most common) |
| Type B | Key-up → Key-up | 1→12, 2→11 … 12→1 (fully reversed) | Direct-attach (no cassette), 40G/100G/400G SR |
| Type C | Key-up → Key-down | 1→2, 2→1, 3→4, 4→3 … (pair-flipped) | Legacy — rarely specified in new designs |
Why MPO Polarity Matters
Every optical link needs transmit (Tx) on one end connected to receive (Rx) on the other. With MPO connectors carrying 12, 16, or 24 fibers, the fiber-to-fiber mapping becomes critical. The polarity method defines how you achieve the Tx-to-Rx crossover across your entire channel — trunk cables, cassettes, and jumpers all play a role.
The critical rule: polarity must be consistent and documented end-to-end. Mixing polarity types in a single channel without compensation is the most common cause of link failure.
The Basics: How MPO Fiber Numbering Works
MPO connectors have a key (tab) on the body. Fiber position numbering is defined relative to the key:
- Key-up orientation: Position 1 is at the left, position 12 at the right
- Key-down orientation: Position 1 is at the right, position 12 at the left
When two MPO connectors mate face-to-face through an adapter, whether the key is up or down on each side determines whether the fiber mapping is straight or reversed. This is the physical foundation for all three polarity types.
Polarity Type A — Straight-Through
An MPO Type A cable has key-up on one end and key-down on the other. Position 1 at End A connects to position 1 at End B — straight-through mapping: 1→1, 2→2 … 12→12.
When to use: Cassette-based structured cabling where the cassette handles the Tx/Rx crossover. This is the most widely deployed type in modern data centers. The trunk is straight-through; the crossover happens at the cassette.
Identifying a Type A cable: One connector key-up, the other key-down. Often printed “Type A” on the jacket, or a yellow dot on the key-up end.
Polarity Type B — Reversed
An MPO Type B cable has key-up on both ends. Because both connectors face each other through an adapter, position 1 at End A connects to position 12 at End B — fully reversed: 1→12, 2→11 … 12→1.
When to use: Direct cable connections without intermediate cassettes. In most duplex-pair-based transceivers, the full reversal naturally crosses Tx positions to Rx positions.
Critical caution: Type B and Type A look almost identical. The key orientation difference is subtle and easy to miss under installation pressure. Always mark cables clearly and test before buttoning up.
Polarity Type C — Pair-Flipped
Type C is similar to Type A in key orientation (key-up → key-down), but adjacent fiber pairs are swapped: 1→2, 2→1, 3→4, 4→3 … 11→12, 12→11. It’s rarely specified in new designs — most modern cassette-based systems handle polarity compensation at the cassette, making Type C trunk cables unnecessary.
Which Polarity Type to Use: Decision Framework
| System Design | Recommended Trunk Type | Notes |
|---|---|---|
| Cassette-based structured cabling | Type A | Cassette handles Tx/Rx crossover internally |
| Direct-attach (MPO-to-MPO, no cassette) | Type B | Full reversal crosses Tx→Rx at channel level |
| Breakout harness (MPO to LC pigtails) | Depends on harness design | Verify Tx/Rx lane assignment in harness spec |
| Extending existing infrastructure | Match existing type | Identify current type before ordering; see troubleshooting section |

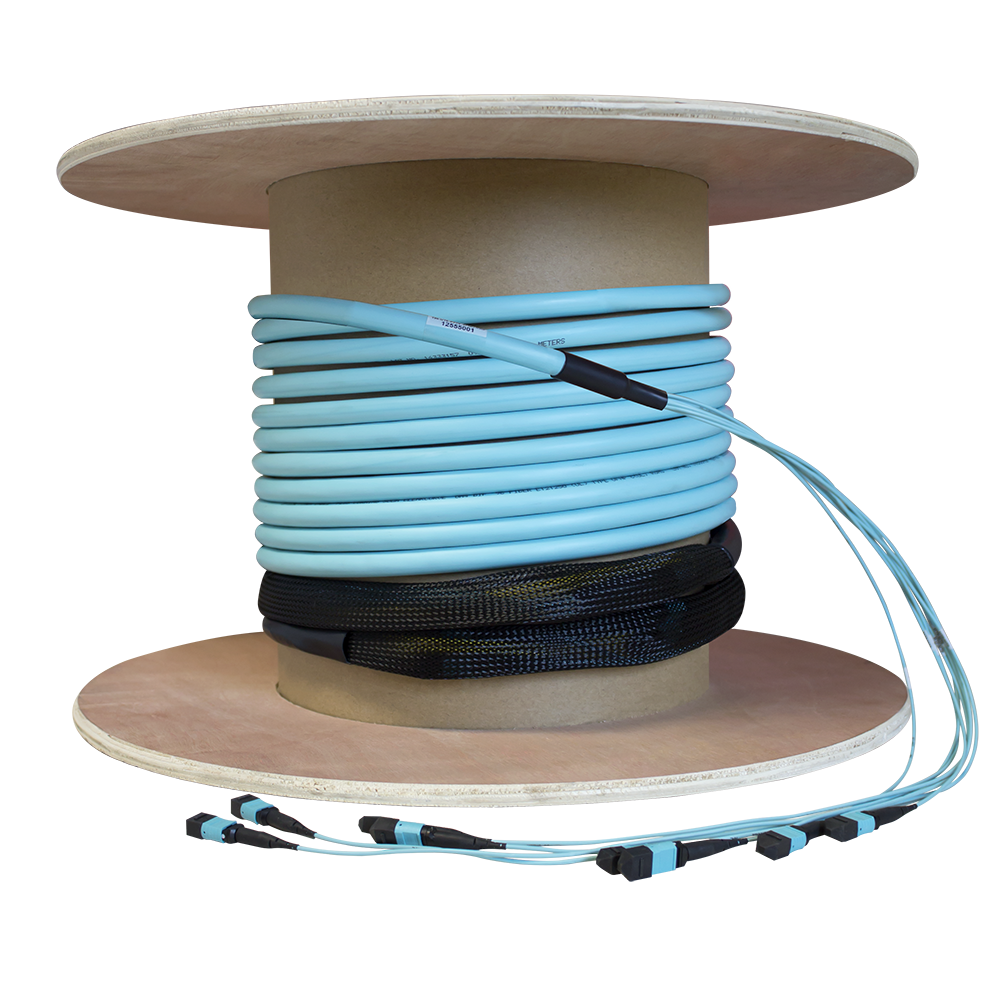

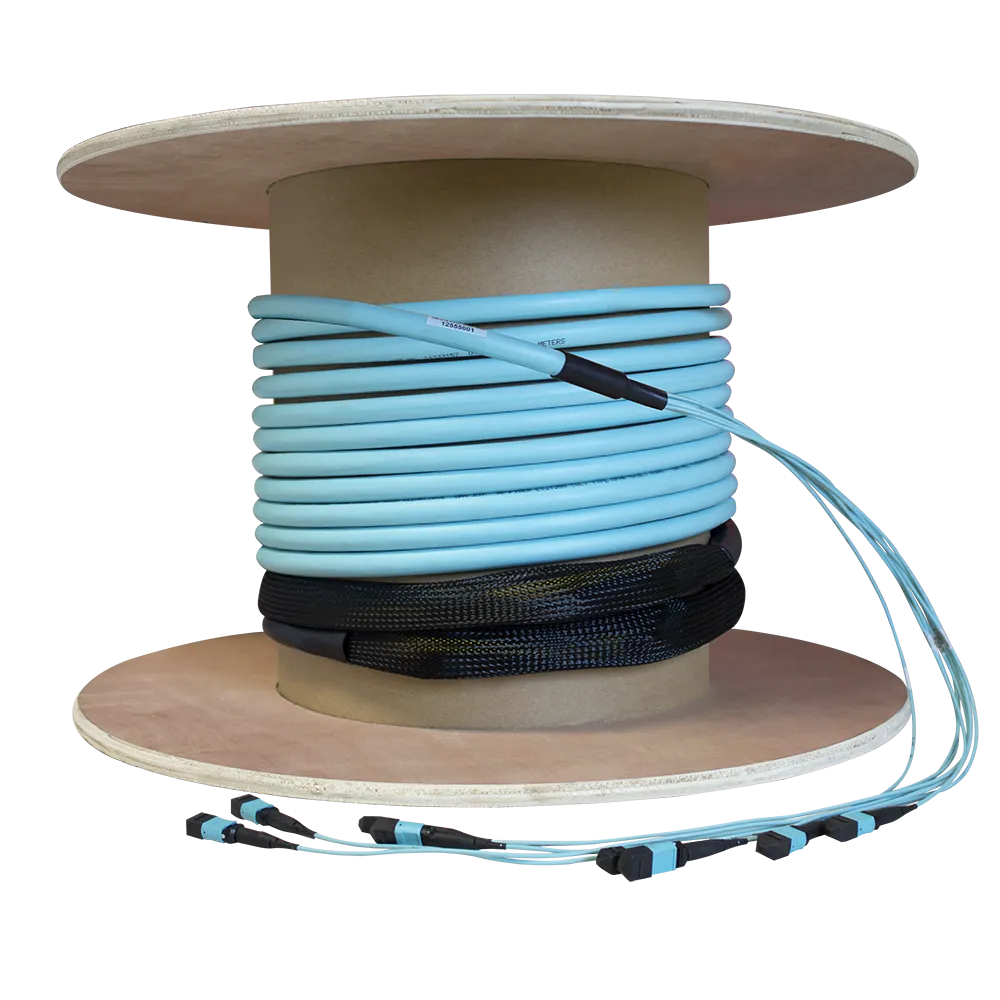

Polarity in Cassette-Based Systems
Cassettes accept one or two MPO trunk cables on the back and present LC duplex ports on the front. The cassette handles the Tx/Rx crossover internally.
Key rule: cassettes designed for Type A trunks are different from those designed for Type B. Using a Type B cassette with a Type A trunk inverts your polarity unexpectedly. Specify trunk type when ordering cassettes.
ABPTEL’s MTP/MPO cassettes are available in Type A and Type B configurations — specify at order time.
💬 Not sure what your transceivers require? Send Candy your transceiver part numbers on WhatsApp — polarity recommendation within 24 hours.
The 3 Questions to Confirm Before You Order
| # | Question | What It Determines |
|---|---|---|
| 1 | Direct-attach or cassette-based system? | Type B for direct-attach; Type A for cassette-based |
| 2 | What does the switch/transceiver vendor specify? | Confirms Tx/Rx lane assignments; prevents guessing |
| 3 | Are you matching existing infrastructure? | Determines whether to match or compensate for existing polarity type |
Troubleshooting: My Link Is Down After Installation
| Step | Action | What You’re Checking |
|---|---|---|
| 1 | Use optical power meter at Rx port | Is any signal reaching Rx? If yes → attenuation issue. If no light → polarity or break. |
| 2 | Insert VFL into Tx at End A; check illuminated fiber at End B | Is illuminated fiber at the remote Tx position? If yes → polarity mismatch (Tx-to-Tx). |
| 3 | Verify cable type vs. system design (check jacket print) | Does the cable type match the design? Type A vs. B vs. C mismatch found? |
| 4a | Quick fix: Swap cable end-for-end at one adapter | Changes effective polarity without replacing cable — emergency only |
| 4b | Proper fix: Replace with correct polarity type; update cable schedule | Permanent fix with documentation |
FAQs
What is the most common MPO polarity type used in data centers?
Type A trunk cables with Type A cassettes is the most widely deployed configuration in structured cabling. For direct-attach (no cassette) 40G/100G/400G SR systems, Type B is common. Type C is mostly legacy.
Can I use Type A and Type B cables in the same installation?
Yes, if intentional and documented — for example, Type A trunks in the backbone and Type B in direct-attach horizontal runs. What you cannot do is accidentally mix them in the same channel without compensation.
Does polarity affect insertion loss?
No. Polarity is a positional issue (which fiber connects to which), not an optical quality issue. Always test insertion loss separately from polarity verification.
Do I need to worry about polarity with single-mode MPO cables?
Yes. Single-mode MPO transceivers (100G-PSM4, 400G-DR4) have specific Tx/Rx lane assignments. The polarity method must match the system design — the risk of Tx-to-Tx mating exists equally on single-mode links.
Pre-order polarity checklist:
- ☐ Direct-attach or cassette-based? → determines trunk polarity type
- ☐ Transceiver vendor polarity spec confirmed?
- ☐ Cassette polarity type matches trunk type?
- ☐ Matching existing infrastructure? Existing type confirmed?
- ☐ Cable jacket print / test report requested?
