What Are MTP/MPO Connectors and Why Are They Critical in Data Center Cabling?
Data centers today demand speed, density, and scalability. Traditional single-fiber connectors no longer meet the requirements of 40G/100G/400G Ethernet. This is where MTP/MPO connectors come in. They allow multiple fibers to be terminated in a single ferrule, reducing cabling complexity and enabling parallel optics for high-speed networks.
MTP/MPO connectors are critical in data center cabling because they deliver high-density, low-loss connections that simplify structured cabling and support seamless migration to higher bandwidths.
When I first supported a 100G migration project, the biggest challenge was messy patching with hundreds of duplex jumpers. Switching to MTP/MPO solutions with trunks and cassettes reduced rack congestion and ensured easier management.
How does an MPO connector work in multi-fiber cabling systems?

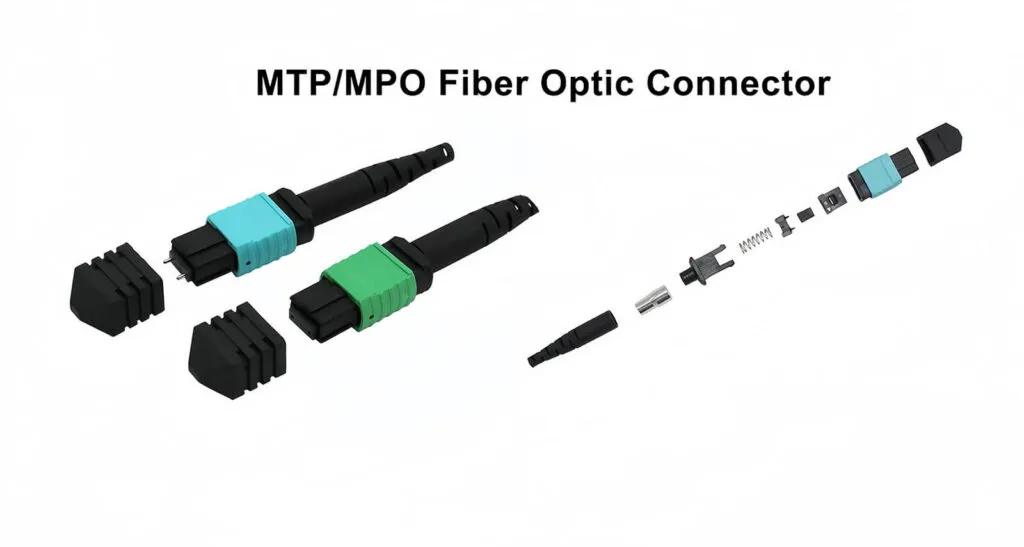

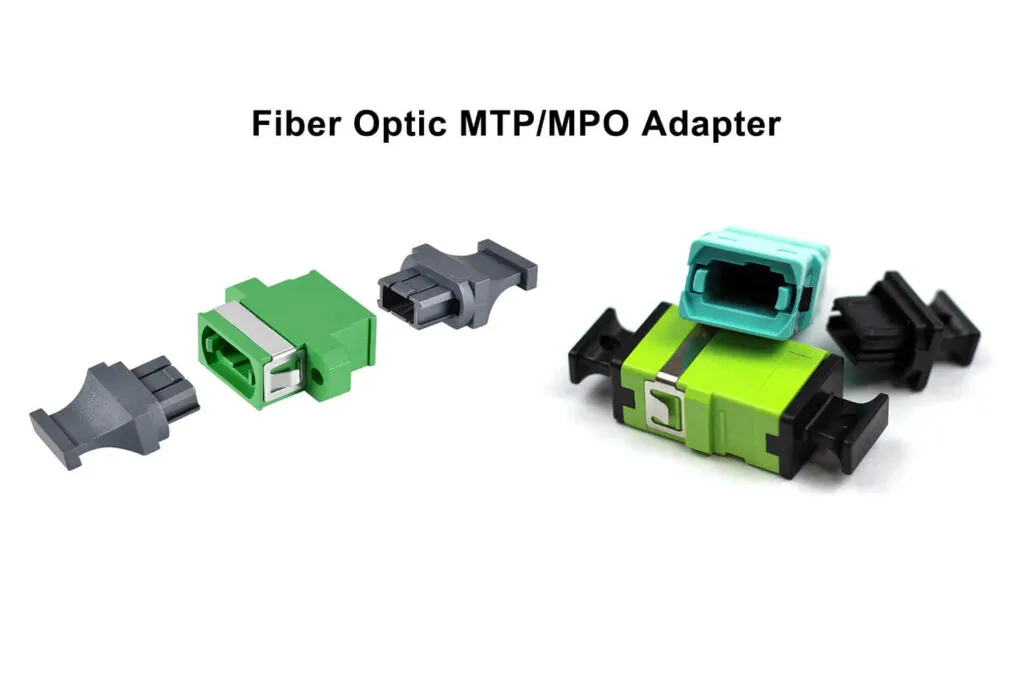

At its core, the MPO connector is designed to house multiple fibers in a single ferrule. Instead of connecting one fiber at a time, an MPO connector can handle 8, 12, 16, or even 24 fibers simultaneously. This design makes it ideal for high-density structured cabling systems.
An MPO connector works by aligning multiple fibers in a linear array within a precision ferrule, enabling parallel optical transmission for applications such as 40G QSFP+ and 100G/400G1 Ethernet.
MPO Connector Fiber Counts
| Fiber Count | Typical Application | Notes |
|---|---|---|
| 8 Fibers | 40G QSFP+ (4x10G) | One row of fibers |
| 12 Fibers | Legacy 40G/100G | One row, center key |
| 16 Fibers | 400G DR4/FR4 | Single row, offset key |
| 24 Fibers | 100G/400G Ethernet | Dual-row, high-density |
Data centers often deploy MPO connectors in backbone cabling where space is limited but bandwidth is critical.
For example:
- MTP/MPO Trunks are factory-terminated cables using MPO connectors at both ends.
- MTP/MPO Jumpers provide short patching between equipment and panels.
MPO connectors are also standardized under IEC 61754-7 and TIA-604-5 (FOCIS 5)2, ensuring global interoperability.
What are the key differences between MPO male and female connectors?
One of the first things to know about MPO connectors is the distinction between male and female. Male connectors have alignment pins, while female connectors do not. This design ensures that fibers align correctly during mating.
The key difference is that MPO male connectors have pins to align fibers, while female connectors have holes; every MPO cable connecting to equipment must use a female connector to mate with the male port.
MPO Male vs Female Connectors
| Type | Features | Use Case |
|---|---|---|
| Male | Pins included | Equipment side ports |
| Female | No pins | Cable side to equipment |
- All MPO equipment ports are male, so any trunk or breakout cable must have a female MPO connector.
- Male-to-male connections risk damage, while female-to-female cannot align.
For example:
- MTP/MPO Breakouts (MPO to LC fan-out) typically use a female MPO to connect to switch ports.
- MTP/MPO Cassettes often have a male MPO on the backplane for trunk connections.
Choosing the right connector gender is critical to avoid costly mistakes during installation. Leading MPO connector manufacturers3 such as US Conec emphasize proper pin configuration in their design guides.
Why is polarity important when installing MTP/MPO connectors?
Polarity ensures that the transmit (Tx) fiber at one end connects to the correct receive (Rx) fiber at the other. With multiple fibers, maintaining polarity is more complex.
Polarity in MPO connectors is critical because it ensures correct signal alignment across fibers, preventing cross-talk and signal loss.
MPO Polarity Types
| Type | Fiber Routing | Use Case |
|---|---|---|
| Type A | Straight-through | Simple one-to-one mapping |
| Type B | Reversed | Common for 40G/100G parallel optics |
| Type C | Pair-wise flip | Legacy duplex applications |
A simple way to identify polarity is the white dot marking the first fiber position. Engineers must also check key-up/key-down orientation during installation.
Many structured cabling design guides recommend Type B for data centers because it supports direct QSFP+ to QSFP+ connections4.
When I worked on a Latin American ISP project, using the wrong polarity type caused delays and re-termination. Switching to pre-tested MTP/MPO Trunks and factory-verified cassettes eliminated the risk.
Where are MTP/MPO connectors used in real-world data center applications?
MPO connectors are now standard in many industries. From hyperscale cloud providers to regional ISPs, these connectors simplify cabling and support rapid scaling.
MTP/MPO connectors are used in data centers, telecom networks, enterprise backbones, and FTTA deployments to support high-density, low-loss connectivity.
Common Applications of MTP/MPO Connectors
| Application | Example Product | Benefit |
|---|---|---|
| Data Center Backbone | MTP/MPO Trunks | High-density, low-loss cabling |
| Switch-to-Server | MTP/MPO Jumpers | Quick patching, less clutter |
| Rack Consolidation | MTP/MPO Cassettes | Modular patching to LC/CS |
| TOR Breakouts | MTP/MPO Breakouts | Fan-out for TOR switches |
Real-world deployments include:
- Telecom Operators: Using MPO connectors for metro backbones.
- Cloud Data Centers: Migrating to 400G using MPO-16 and MPO-24.
- Financial Enterprises: Using MPO cassettes for high-density trading networks5.
According to a MarketsandMarkets report6, demand for MPO connectors is expected to grow significantly, driven by AI and cloud expansion.
Conclusion
MTP/MPO connectors are no longer optional—they are essential for building modern, high-speed, and high-density networks. From male vs female configurations to polarity types and real-world applications, understanding these connectors ensures smooth deployments and future scalability.
For project managers, engineers, and procurement teams, integrating MTP/MPO Jumpers, MTP/MPO Trunks, MTP/MPO Breakouts, and MTP/MPO Cassettes into your design guarantees a reliable structured cabling system.
Whether you’re upgrading to 100G or preparing for 400G, the right connector choice will save time, reduce costs, and support long-term growth.
