Description
One Terminal. Any Scenario.
The Problem: Different deployment zones require different densities. A rural pole might only need 4 ports, while a suburban street corner needs 12. Stocking different brands for each is a nightmare.

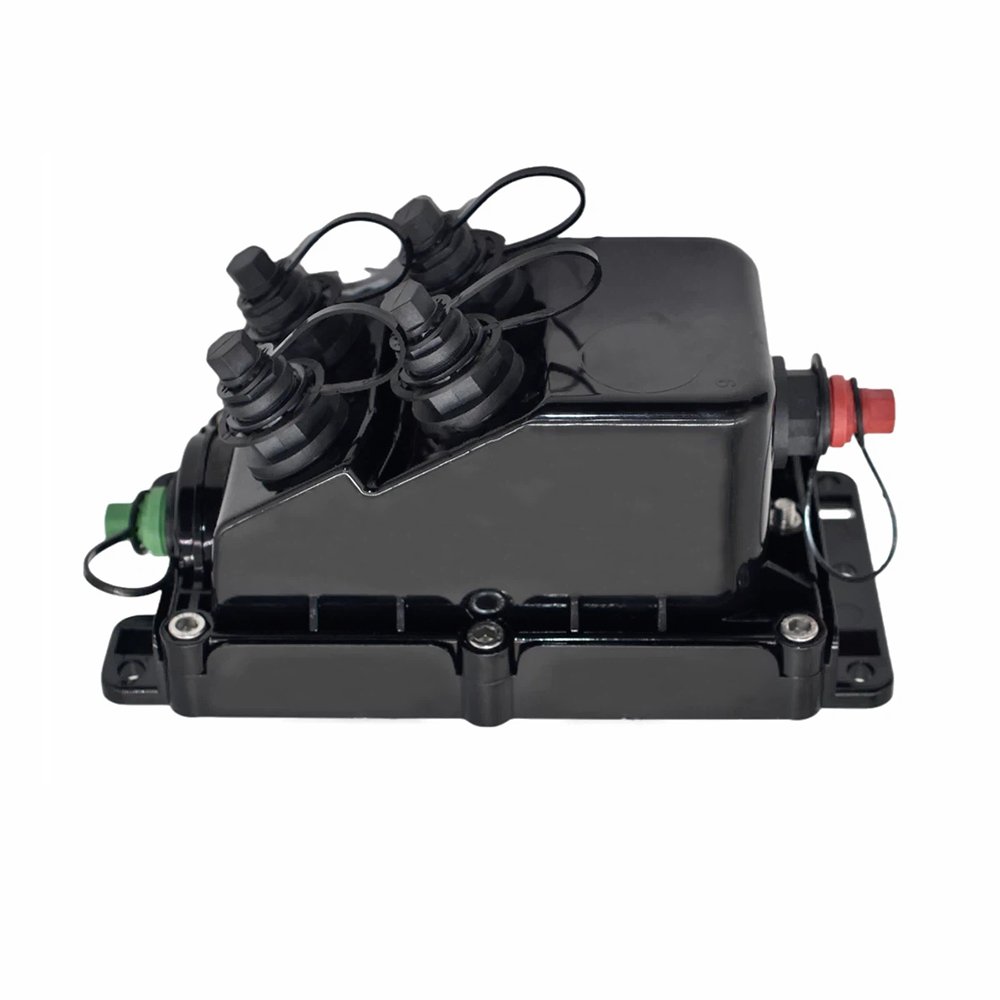

The ABPTEL Solution: Our MST Series covers every scenario with a single, unified platform. From the compact 4-Port Mini to the high-density 12-Port Hub, every unit features the same IP68 ruggedization and Plug-and-Play OptiTap® compatibility.
Engineered for Speed & Scalability
1. Splitter vs. Pass-Through Logic
With Splitter (1:4 / 1:8): Best for distribution points. One feeder fiber in, multiple drops out. Reduces fiber usage in the main ring.
Pass-Through (No Splitter): Best for fiber indexing. Each external port corresponds directly to a fiber in the stub tail.

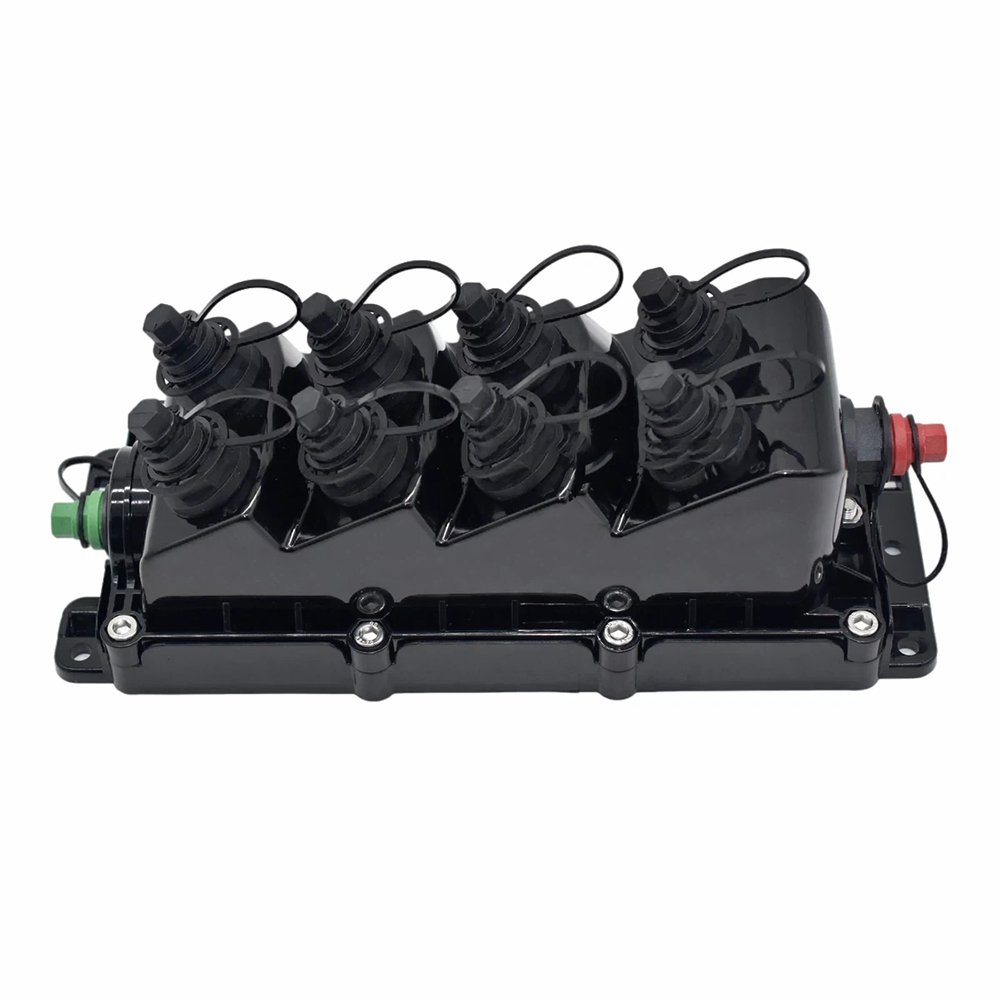

2. 100% OptiTap® Compatible
Features industry-standard Hardened SC/APC (H-Connector) ports. Fully inter-mateable with Corning OptiTap® drops and CommScope terminals. No proprietary lock-in.
3. Factory-Sealed IP68
Every unit undergoes a strict Air-Tightness & Water Immersion Test. Rated for 3 meters of water submersion for 7 days. Ideal for flood-prone manholes or handholes.
4. Flexible Stub Tails
Comes with a factory-installed SST Flat Drop stub. Available in Dielectric (aerial) or Toneable (direct burial) versions.
Model Selection Matrix
| Model | Ports | Splitter Option | Typical Insertion Loss | Application |
|---|---|---|---|---|
| MST-04 | 4 Ports | 1:4 PLC / None | 7.5dB (Splitter) / 0.3dB (No Splitter) | Rural Drops / Pole Mount |
| MST-08 | 8 Ports | 1:8 PLC / None | 10.8dB (Splitter) / 0.3dB (No Splitter) | Street Distribution |
| MST-12 | 12 Ports | Pass-Through Only | 0.3dB (Pass-through) | High Density Hubs |
General Specifications
| External Connector | Hardened SC/APC (Green) – IP68 |
| Internal Fiber | Corning SMF-28e Ultra (G.657.A1) |
| Stub Tail Cable | SST Flat Drop (Dielectric or Toneable) |
| Operating Temp | -40°C to +75°C (-40°F to 167°F) |
| Mounting Kit | Universal Bracket (Wall/Pole/Pedestal) Included |
| Compliance | Telcordia GR-3120-CORE, GR-771-CORE, RoHS |
Engineering FAQ
Q: Can I daisy-chain these terminals?
A: Yes. Choose the “Pass-Through” model with a stub tail. You can splice the stub into your main fiber ring and drop specific fibers at each terminal location (Fiber Indexing).
Q: Is the mounting bracket included?
A: Yes. Every ABPTEL MST ships with a universal mounting bracket kit suitable for wall, pole, or handhole mounting at no extra cost.
