Description
The ABPTEL MTP/MPO-LC Cassette Module (OS2 Singlemode, 24 LC Duplex, LGX, Method A) is designed for carrier networks, large-scale data centers, and long-haul enterprise deployments requiring reliable singlemode fiber connectivity.

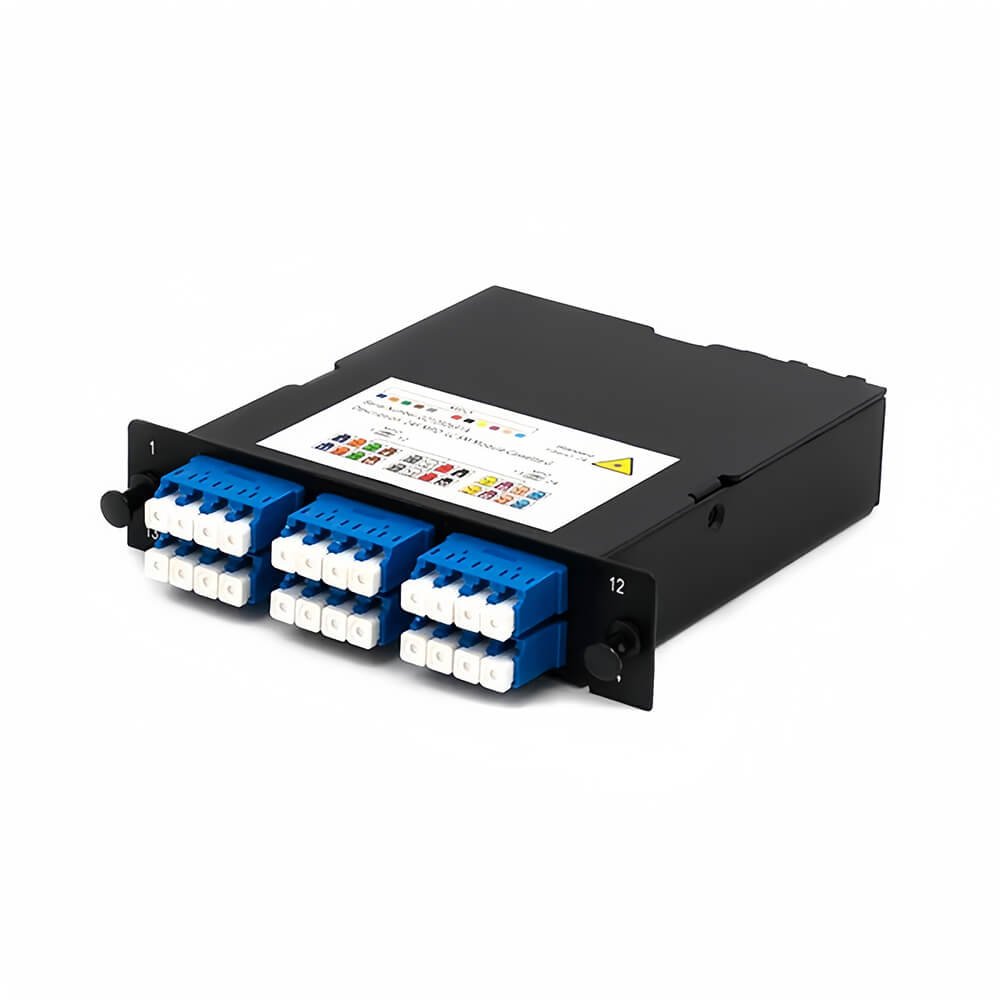

Equipped with two MPO-12 connectors at the rear and 24 LC Duplex adapters at the front, this cassette enables seamless transition from backbone MTP/MPO trunk cables to LC patch cords, accommodating up to 48 fibers. Built on OS2 singlemode 9/125µm fiber, it supports 10G/40G/100G/400G Ethernet transmission over long distances with low insertion loss.

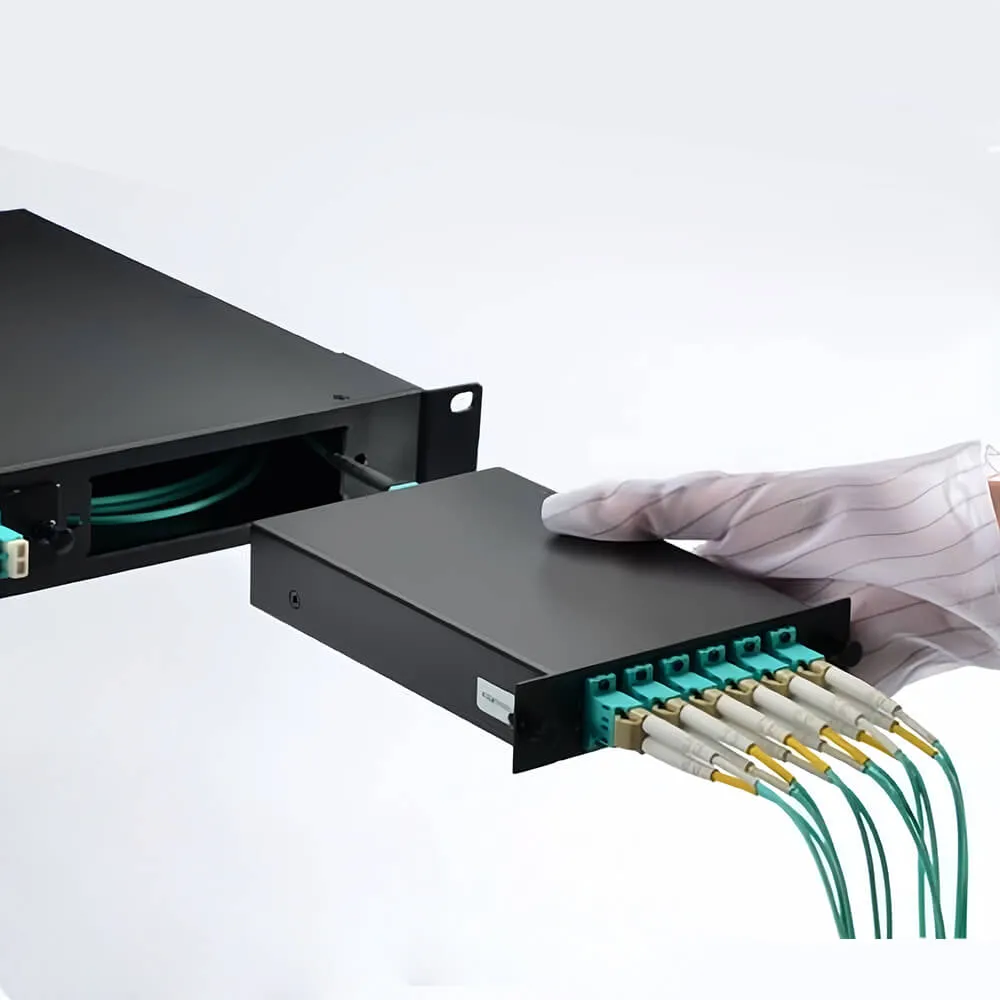

The LGX footprint allows easy integration into standard 19” rack-mount enclosures and patch panels, while Method A polarity ensures proper optical routing. Each cassette is factory-terminated and 100% tested, guaranteeing high return loss, low insertion loss, and long-term network reliability.
The plug-and-play modular design reduces installation time and labor costs, providing a flexible and scalable solution for modern network infrastructures.
🔹 Specifications
| Parameter | Specification |
|---|---|
| Product Type | MTP/MPO-LC Fiber Optic Cassette Module |
| Fiber Type | OS2 Singlemode, 9/125µm |
| Supported Applications | 10G / 40G / 100G / 400G Ethernet, Long-Distance Telecom & Data Center Networks |
| Front Panel | 24 × LC Duplex (48 fibers) |

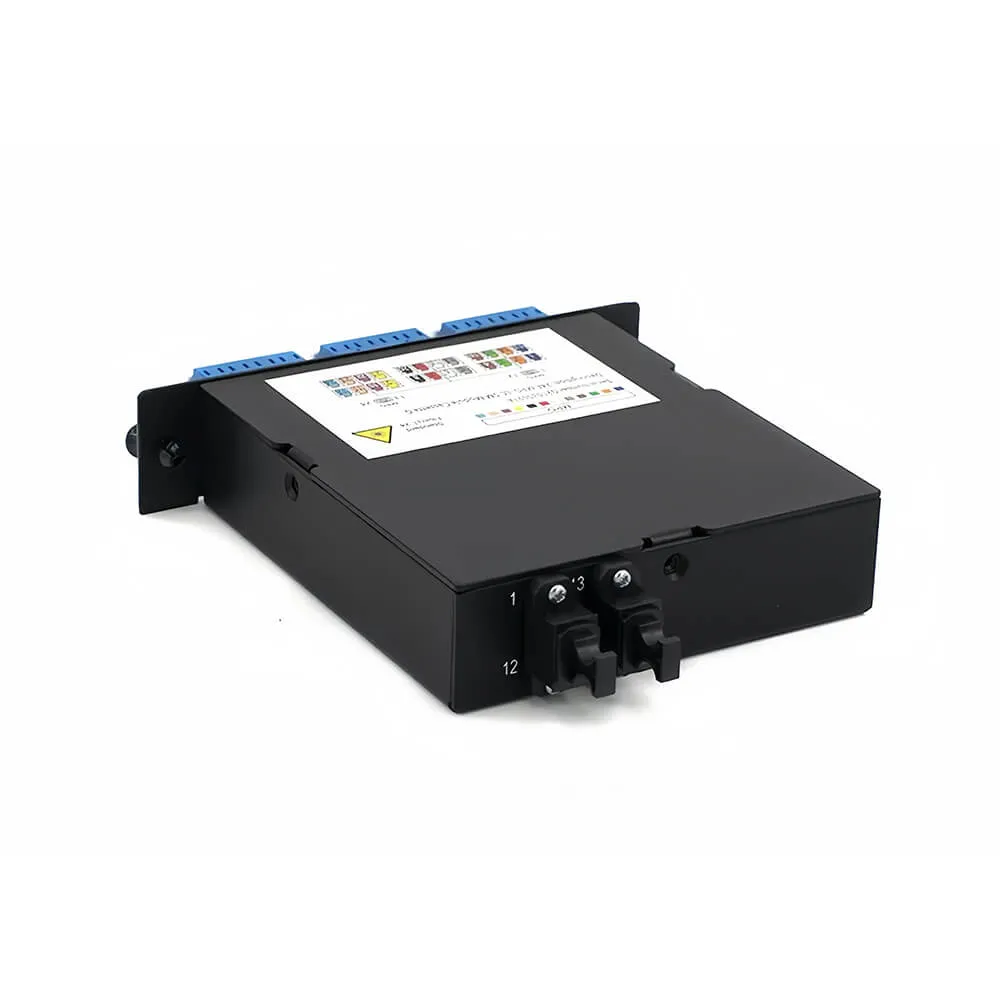

| Rear Panel | 2 × MTP/MPO-12 Female Connectors |
| Fiber Count | 24 Fibers (2×12F MPO) |
| Polarity Method | Method A (Straight-through) |
| Housing Standard | LGX Footprint, fits 19” rack-mount fiber enclosures |
| Insertion Loss (MPO) | ≤ 0.35dB (Elite) |
| Insertion Loss (LC) | ≤ 0.20dB |
| Return Loss | ≥ 55dB |
| Cable Jacket Type | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | TIA/EIA-568-C.3, IEC 61754-7, RoHS, REACH |
| Brand | ABPTEL |
🔹 Key Benefits
- Ultra-High Density – Provides 24 LC Duplex (48 fibers) in a single compact LGX cassette, saving rack space.
- Carrier-Grade Singlemode – OS2 9/125µm fiber supports long-distance, high-speed transmission up to 400G.
- Seamless Backbone Transition – MPO rear connectors simplify structured cabling from trunk to LC patch cords.
- Plug-and-Play Design – Pre-terminated and factory-tested to ensure fast installation and consistent performance.
- Reliable ABPTEL Quality – Low insertion loss, high return loss, and compliance with international standards.
- Scalable & Modular – LGX design supports easy integration into rack enclosures and patch panels for flexible network growth.
