Description

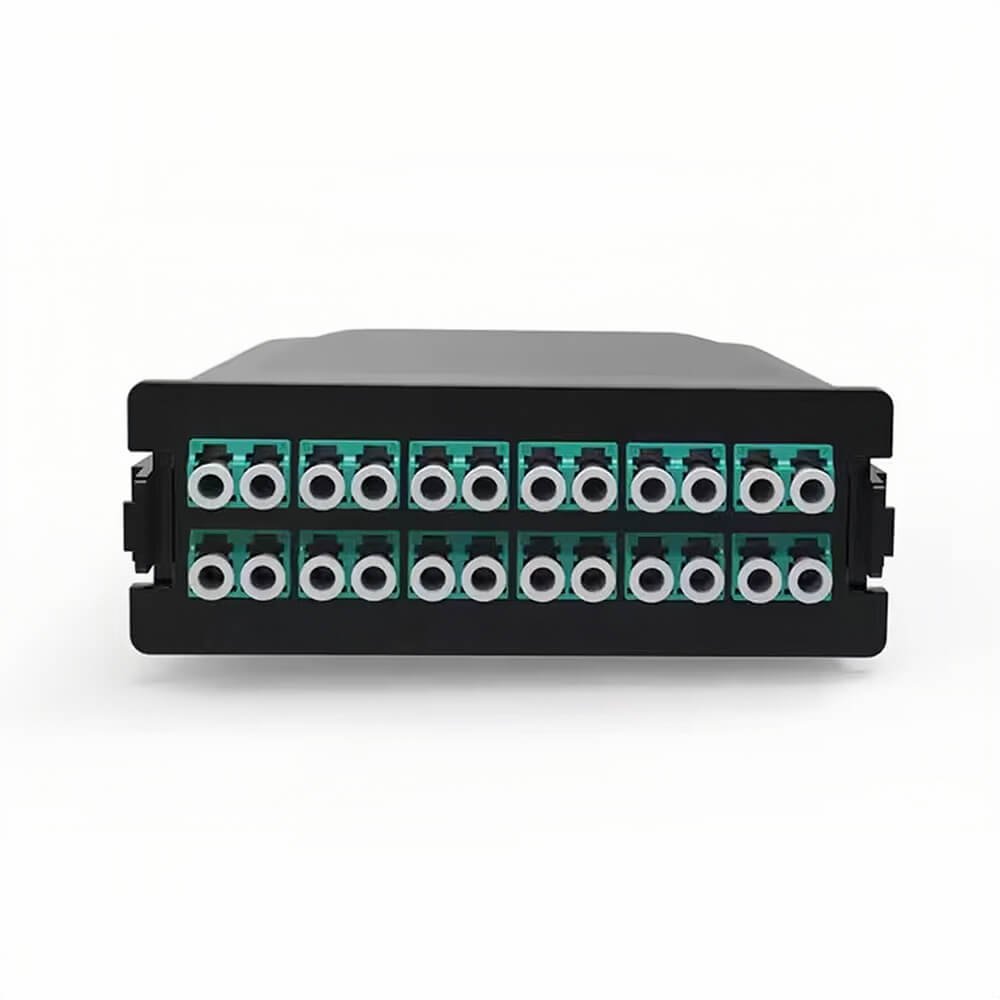

The ABPTEL MTP/MPO-LC Cassette Module (OM3 Multimode, 24 LC Duplex, Type A, LGX footprint) is a plug-and-play fiber solution that simplifies structured cabling in data centers, enterprise IT environments, and cloud networks.
With two rear MTP/MPO connectors and 24 LC Duplex adapters on the front panel, this cassette enables efficient transition between MTP/MPO trunk cables and LC patch cords. Built on OM3 multimode 50/125µm fiber, it supports Ethernet speeds up to 10G/40G/100G, making it an ideal choice for short-to-medium distance backbone connections.
The LGX standard footprint allows seamless integration into 19” rack-mount fiber enclosures, supporting high-density modular deployment. Featuring Type A polarity, it ensures correct optical mapping for consistent performance.
Each cassette is factory-terminated and tested, guaranteeing low insertion loss, stable return loss, and long-term durability. The ABPTEL OM3 cassettes are perfect for organizations seeking cost-effective, scalable, and easy-to-deploy fiber interconnects.
🔹 Specifications
| Parameter | Specification |
|---|---|
| Product Type | MTP/MPO-LC Fiber Optic Cassette Module |
| Fiber Type | Multimode OM3, 50/125µm |
| Supported Applications | 10G / 40G / 100G Ethernet, Data Center, Enterprise Networks |
| Front Panel | 24 x LC Duplex (48 fibers) |
| Rear Panel | 2 x MTP/MPO Female Connectors (12F each) |
| Polarity Method | Type A (Straight-through) |
| Housing Standard | LGX Footprint, fits 19” rack-mount fiber enclosures |
| Insertion Loss (MPO) | ≤ 0.35dB (Elite) |
| Insertion Loss (LC) | ≤ 0.20dB |
| Return Loss | ≥ 50dB |
| Cable Jacket Type | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | TIA/EIA-568-C.3, IEC 61754-7, RoHS, REACH |
| Dimensions | Standard LGX module size (1/3U, customizable) |
| Brand | ABPTEL |
🔹 Key Benefits
- High-Density Connectivity – Supports 24 LC Duplex ports in a compact LGX module, optimizing rack space for large-scale data centers.
- Plug-and-Play Deployment – Simplifies cabling with factory-terminated MPO/MTP connections, reducing installation time and ensuring consistent performance.
- OM3 Multimode Performance – Designed for 10G/40G/100G Ethernet applications, delivering reliable short-to-medium distance transmission.
- Modular & Scalable – LGX footprint design enables seamless integration into enclosures and patch panels for flexible structured cabling.
- Reliable ABPTEL Quality – Each cassette is 100% tested for low insertion loss and high return loss, guaranteeing long-term network stability.
- Future-Proof Solution – Ideal for data centers, enterprise IT networks, and cloud environments requiring cost-effective scalability.
