Description
The ABPTEL MTP/MPO to 6×LC Duplex Cassette Module (OS2 Singlemode, 12 Fibers, Type A) is designed for telecom operators, enterprise backbones, and long-haul network applications requiring reliable singlemode fiber connectivity.

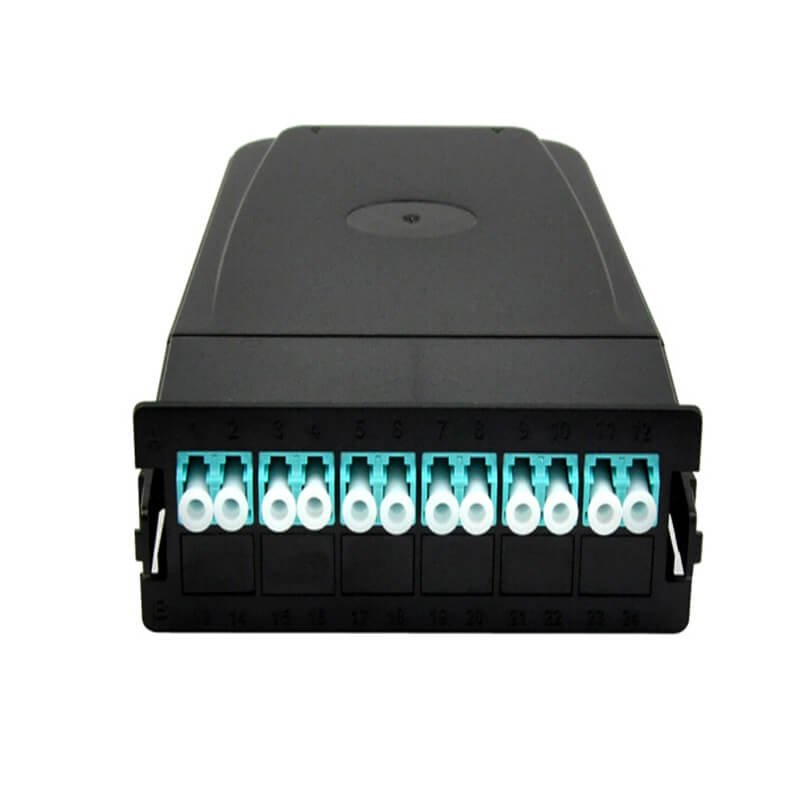

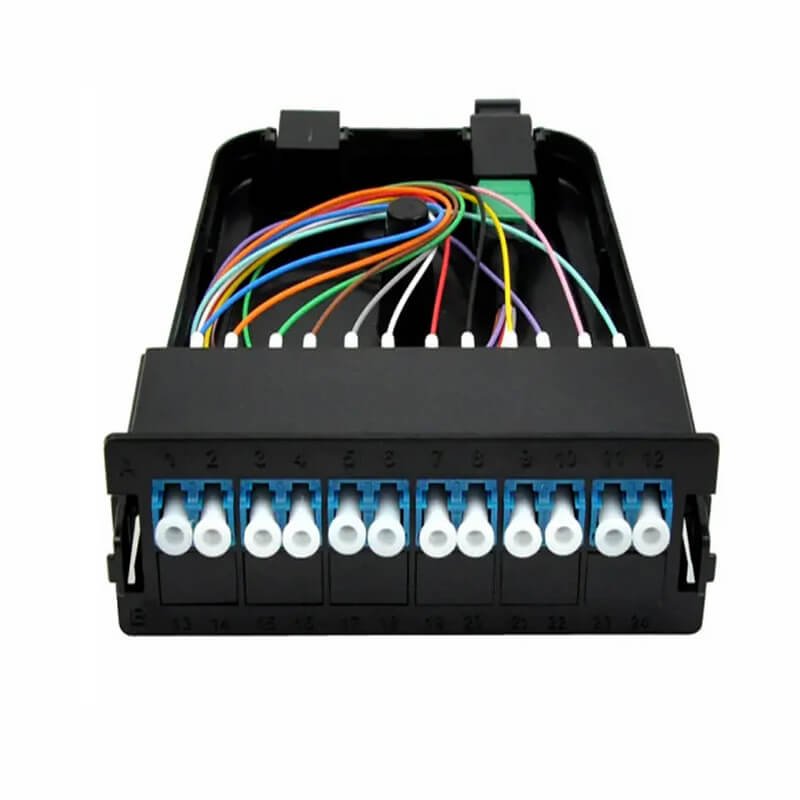

With one MPO-12 connector at the rear and 6 LC Duplex adapters on the front, this cassette simplifies the transition from MTP/MPO trunk cables to LC patch cords, supporting up to 12 fibers (OS2, 9/125µm).
Built with OS2 singlemode fiber, the cassette supports 10G/40G/100G/400G Ethernet and long-distance optical transmission with minimal signal loss. Its Type A polarity ensures proper signal routing, while the compact design fits seamlessly into LGX patch panels and 19” rack-mount enclosures.
Each ABPTEL cassette is factory-terminated and 100% tested for insertion loss and return loss, ensuring long-term performance stability. With its plug-and-play modular structure, it reduces deployment time and provides flexibility for future network upgrades.
🔹 Specifications
| Parameter | Specification |
|---|---|
| Product Type | MTP/MPO to LC Duplex Fiber Optic Cassette Module |
| Fiber Type | OS2 Singlemode, 9/125µm |
| Supported Applications | 10G / 40G / 100G / 400G Ethernet, Telecom Backbones, Enterprise Networks |
| Front Panel | 6 × LC Duplex (12 fibers) |
| Rear Panel | 1 × MTP/MPO-12 Female Connector |
| Fiber Count | 12 Fibers |
| Polarity Method | Type A (Straight-through) |
| Housing Standard | LGX Footprint, compatible with 19” rack enclosures |
| Insertion Loss (MPO) | ≤ 0.35dB (Elite) |
| Insertion Loss (LC) | ≤ 0.20dB |
| Return Loss | ≥ 55dB |
| Cable Jacket Type | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | TIA/EIA-568-C.3, IEC 61754-7, RoHS, REACH |
| Brand | ABPTEL |
🔹 Key Benefits
- Optimized for Long-Distance Transmission – OS2 singlemode fiber supports high-speed data over extended distances.
- Compact & Efficient – Provides 6 LC Duplex ports (12 fibers) in a small LGX module, saving rack space.
- Seamless MPO Backbone Transition – Simplifies MPO trunk-to-LC patching for structured cabling.
- Plug-and-Play Installation – Factory-terminated design reduces deployment time and guarantees reliable performance.
- High Optical Performance – Low insertion loss and high return loss ensure stable connectivity.
- ABPTEL Quality Assurance – 100% tested for compliance with TIA/EIA and IEC standards.
