Description
Product Overview

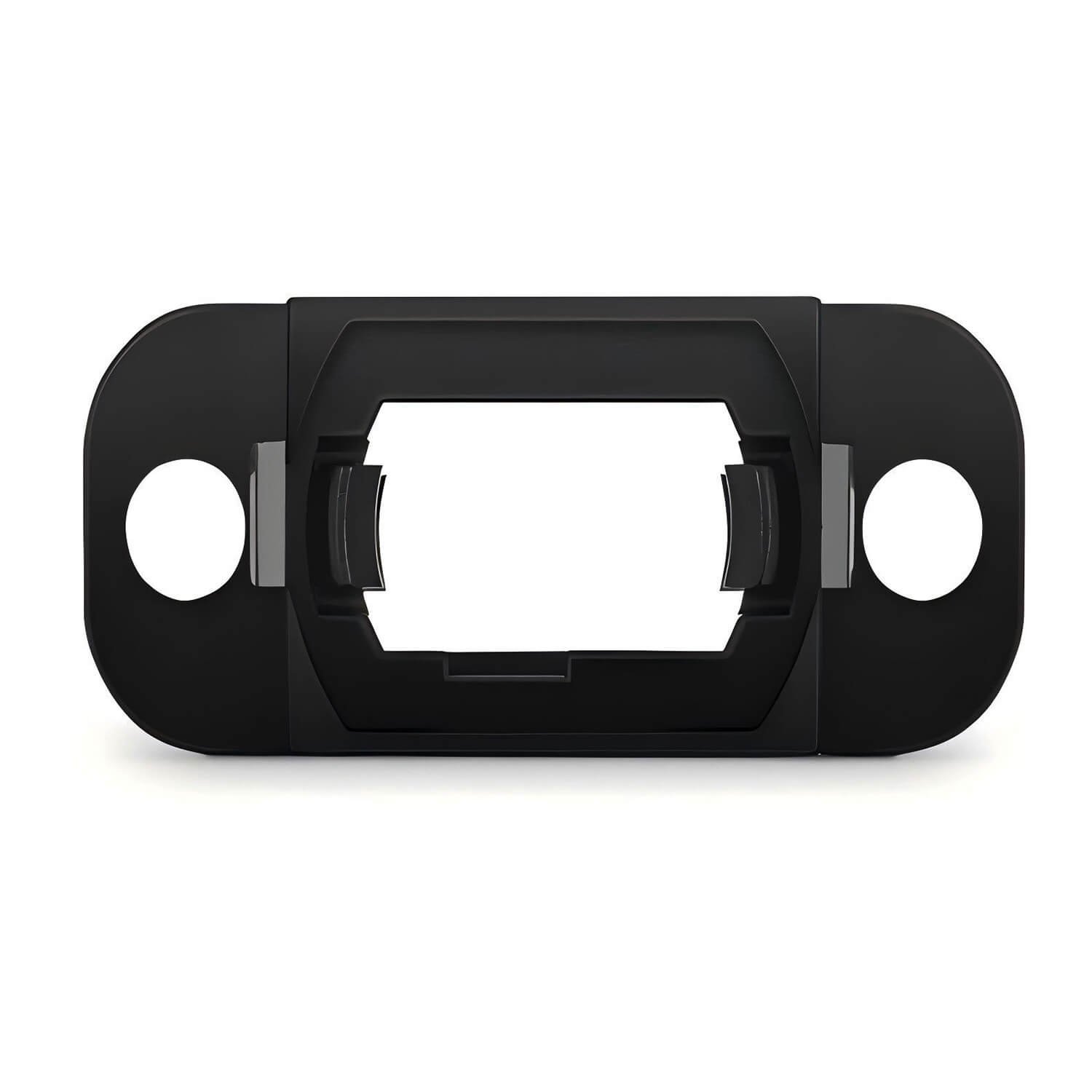

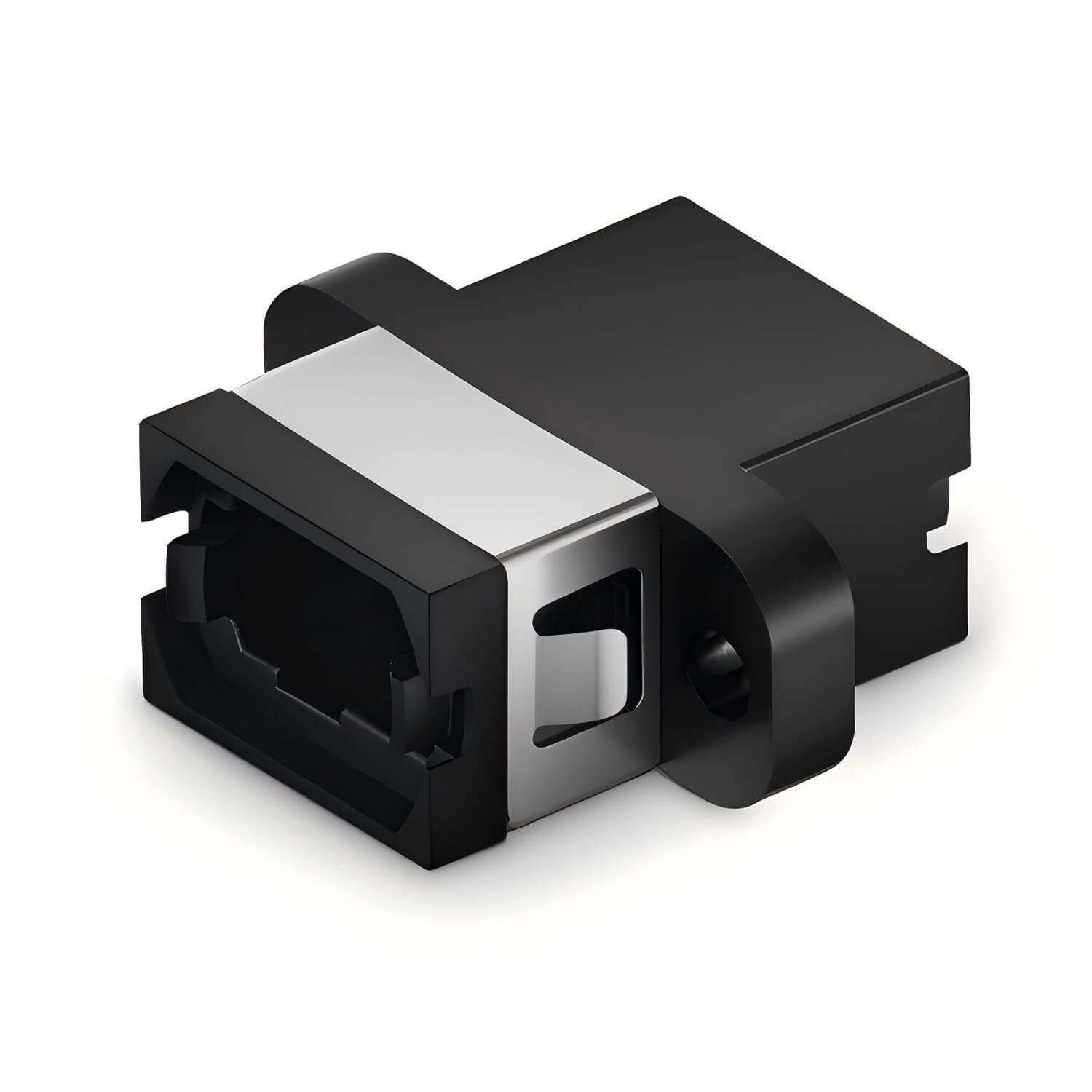

The MTP®/MPO-16 Black Fiber Optic Adapter by ABPTEL provides high-precision connectivity for MTP®/MPO cables in data centers and telecommunication systems.

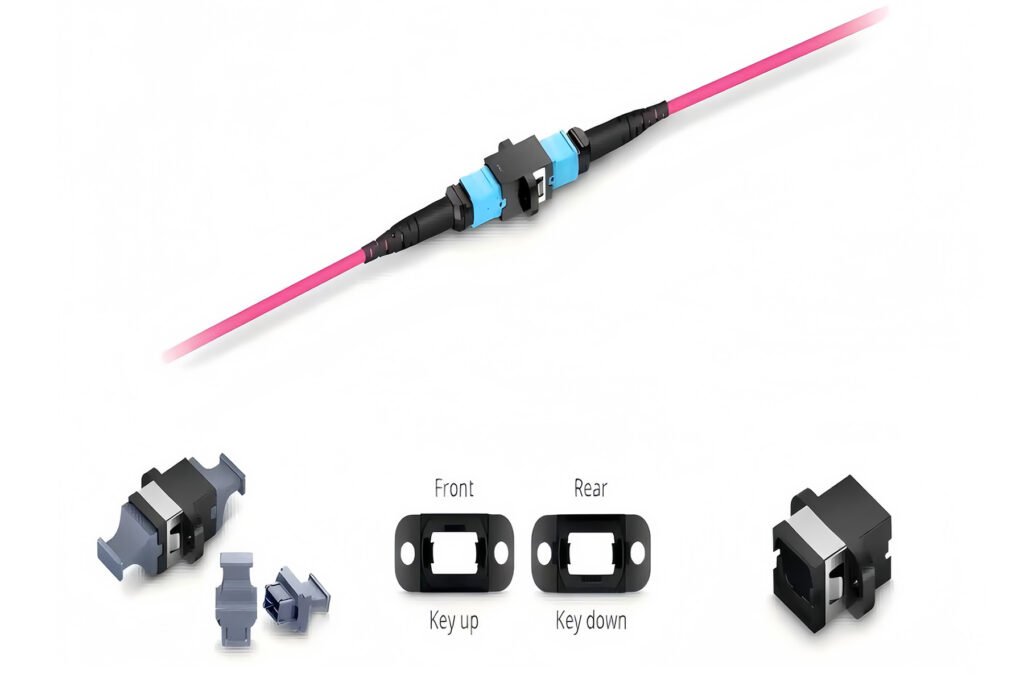

With key-up to key-down (opposed) orientation, it ensures secure and stable alignment between two MTP®/MPO connectors, minimizing signal loss and ensuring efficient parallel optical transmission.
Its compact SC-footprint and UL 94V-0 flammability rating make it a dependable solution for high-density cabling environments.
⚙️ Features
- Connector Type: US Conec MTP®/MPO
- Keyway: Opposed (Key Up to Down)
- Footprint: SC type with flange
- Insertion Loss: ≤0.35 dB
- Durability: 1000 times mating cycles
- Working Temperature: -25°C to +70°C
- Flammability Rate: UL 94V-0
- Adapter Port: Single
- Color: Black
🏢 Typical Applications

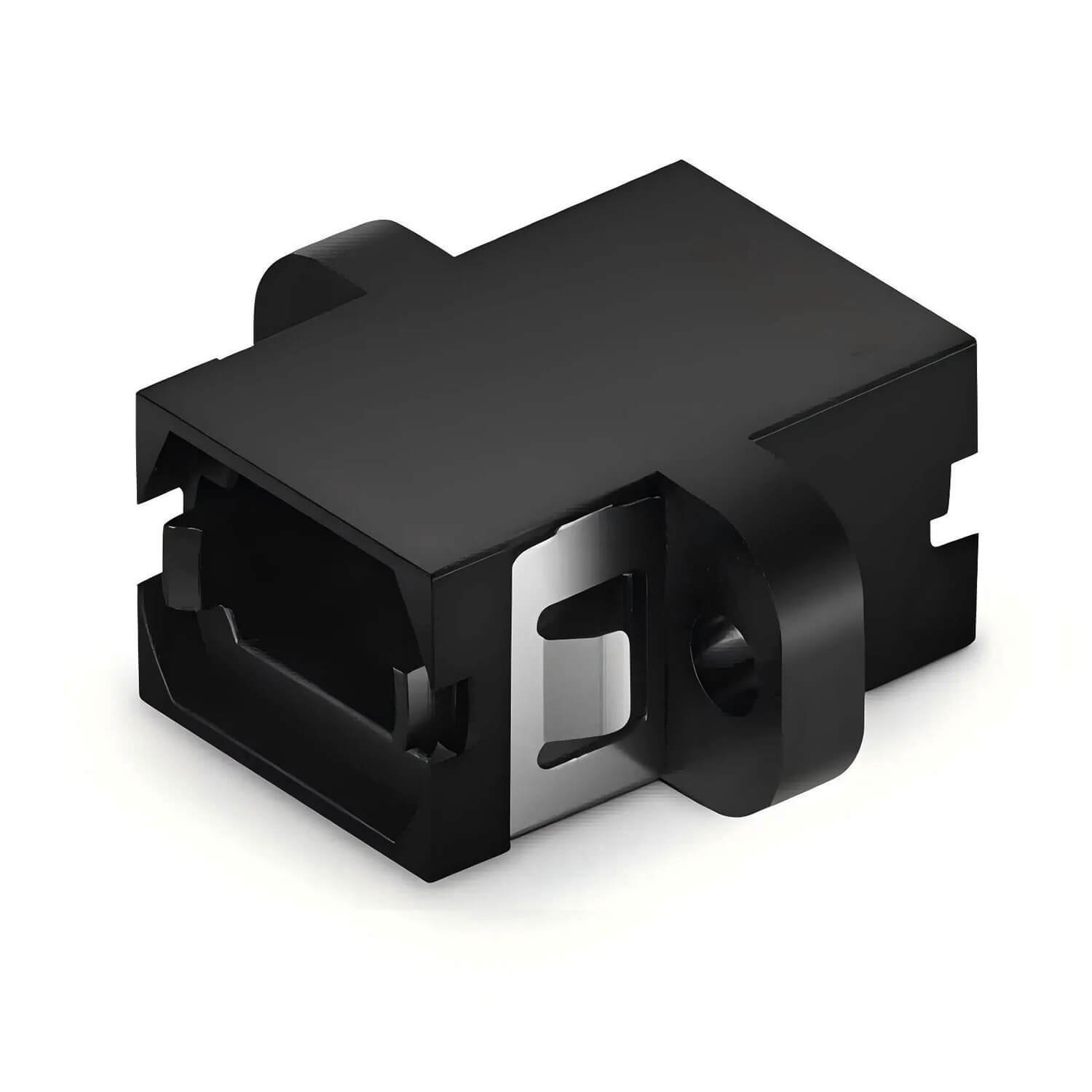

- High-density MTP®/MPO trunk and cassette connections
- Data center backbone cabling
- Parallel optics interconnection
- Fiber adapter panels & modules
- OEM/ODM data center solutions
Specifications
| Parameter | Description |
|---|---|
| Connector Type | US Conec MTP®/MPO |
| Keyway | Opposed (Key Up to Down) |
| Adapter Port | Single |
| Footprint | SC |
| Insertion Loss | ≤0.35 dB |
| Durability | 1000 times |
| Flammability Rate | UL 94V-0 |
| Working Temperature | -25°C ~ +70°C |
| Color | Black |
| Material | High-strength Thermoplastic |
| Compliance | IEC 61754-7, TIA/EIA-604-5, RoHS |
Key Benefits
✅ Stable Alignment: Opposed key structure ensures accurate MTP®/MPO mating.
✅ High Durability: Withstands up to 1000 connection cycles.
✅ Low Loss: Precision engineering keeps IL ≤0.35dB.
✅ Universal Compatibility: Works with 8, 12, 16, and 24-fiber MTP®/MPO connectors.
✅ Fire Safety: UL 94V-0 flammability standard for reliable operation.
✅ Easy Installation: SC footprint and flange design simplify rack integration.
Application Scenariosfits
