Description

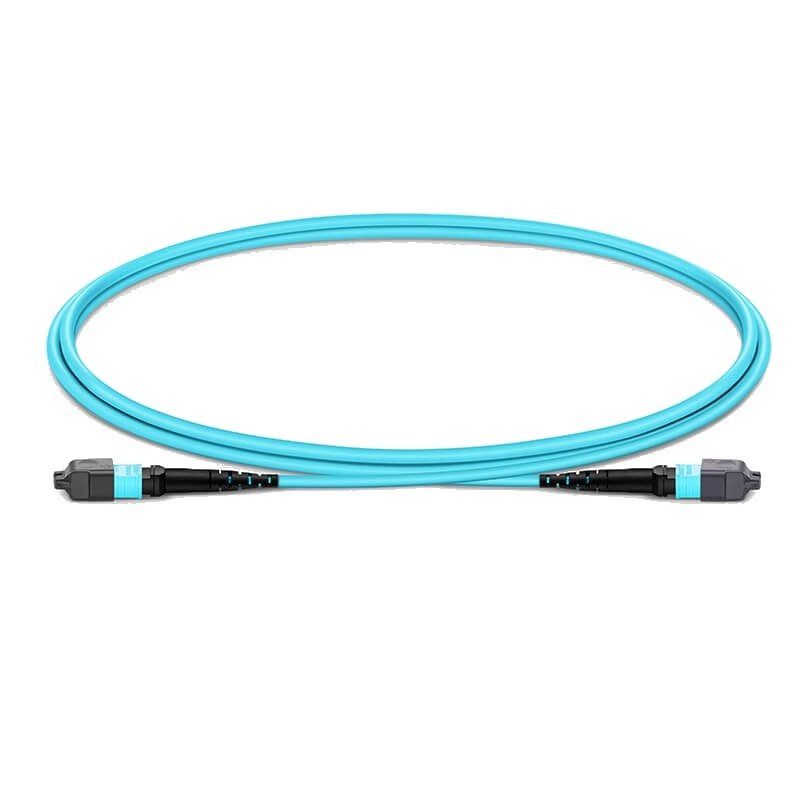

The 1m (3ft) 24-Fiber MTP®-12 UPC (Female) to MTP®-12 UPC (Female) Jumper Cable (OM3 Multimode, Aqua, Plenum OFNP, Type A) is designed for high-density data center and enterprise network environments requiring reliable parallel optical connections.
Built with 24 fibers (50/125µm OM3 multimode), this jumper supports 10G/40G/100G Ethernet applications over short-to-medium distances. Its Type A polarity ensures correct channel mapping, while the UPC connectors provide stable optical performance with a maximum insertion loss of ≤0.35dB.
The Plenum (OFNP) aqua jacket meets stringent in-building fire safety requirements, making it ideal for deployment in structured cabling systems. Each jumper is factory-terminated and 100% tested to guarantee consistent insertion and return loss performance.
Optimized for high-density rack environments, this OM3 jumper simplifies structured cabling, reduces installation time, and ensures future-proof scalability for growing network demands.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | MTP®-12 UPC to UPC Fiber Jumper Cable |
| Brand | ABPTEL |
| Connector A | MTP®-12 UPC (Female, No Pin) |
| Connector B | MTP®-12 UPC (Female, No Pin) |
| Fiber Count | 24 Fibers |
| Fiber Type | OM3 Multimode, 50/125µm |
| Cable Jacket | Plenum (OFNP), Aqua |
| Length | 1m (3ft), custom lengths available |
| Polarity | Type A (Straight-through) |
| Insertion Loss | ≤0.35dB (Typical ≤0.15dB) |
| Return Loss | ≥50dB (UPC) |
| Cable Diameter | 3.0mm |
| Durability | ≥500 matings |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | IEC 61754-7, TIA/EIA-568, RoHS, REACH |
Key Benefits
- High-Density Connectivity – 24 fibers in a compact 1m jumper, optimized for rack environments.
- Reliable Optical Performance – OM3 multimode with ≤0.35dB insertion loss and ≥50dB return loss.
- Parallel Optics Ready – Designed for 10G/40G/100G Ethernet and short-to-medium distance transmission.
- Plenum-Rated Jacket – Aqua Plenum (OFNP) cable ensures fire safety compliance for in-building installations.
- Plug-and-Play Installation – Pre-terminated and factory-tested for quick, error-free deployment.
- ABPTEL Quality Assurance – Each jumper undergoes rigorous optical testing for guaranteed performance.
