Description

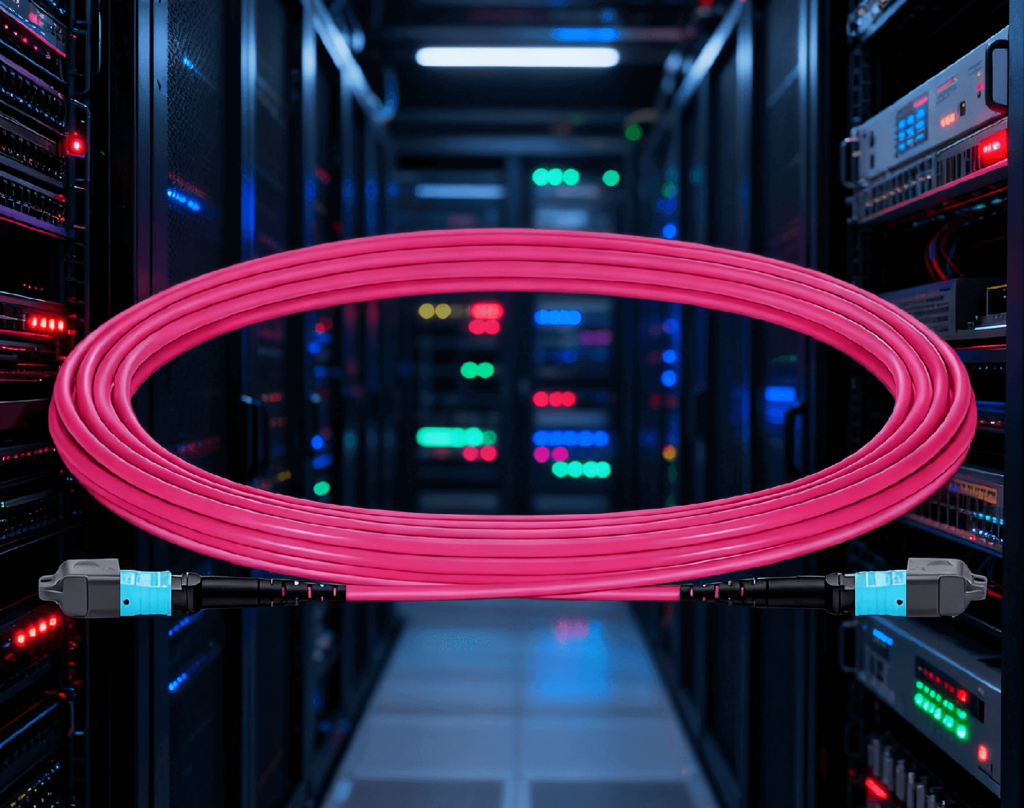

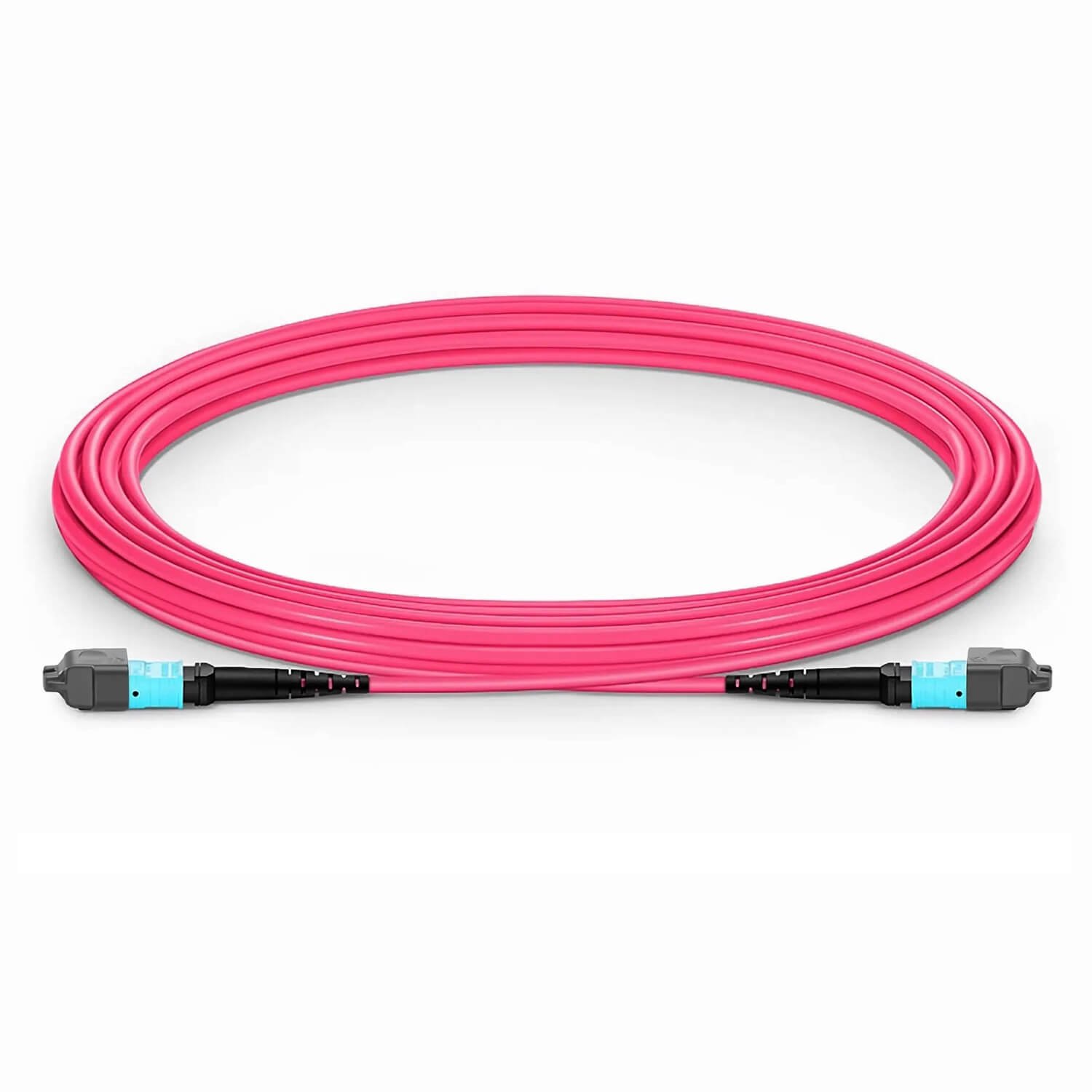

The MTP®-12 OM4 Magenta Jumper is a high-performance pre-terminated fiber cable designed for modern data centers and enterprise networks.
Engineered for high-density patching applications, this jumper delivers superior optical performance and reliability while reducing installation complexity.
Specifications
| Parameter | Description |
|---|---|
| Connector A | US Conec MTP® Elite Female (Pinless) |
| Connector B | US Conec MTP® Elite Female (Pinless) |
| Polish Type | UPC to UPC |
| Fiber Mode | OM4 Multimode 50/125 µm (Corning ClearCurve®) |
| Fiber Count | 12 Fibers |
| Polarity | Type A |
| Cable Jacket | Plenum (OFNP) |
| Cable Outside Diameter (OD) | 3.0 mm |
| Min. Bend Radius (Optical Fiber) | 7.5 mm |
| Min. Bend Radius (Fiber Cable) | 20D / 10D (Dynamic / Static) |
| Tensile Strength | 80 / 240 N (Long / Short Term) |
| Connector Durability | 500 times |
| Wavelength | 850 / 1300 nm |
| Insertion Loss | ≤ 0.35 dB (Max) / 0.15 dB (Typ.) |
| Return Loss | ≥ 20 dB |
| Attenuation @ 850 nm | ≤ 2.3 dB/km |
| Attenuation @ 1300 nm | ≤ 0.6 dB/km |
| Operating Temperature | -10 °C ~ +60 °C (14 ~ 140 °F) |
| Storage Temperature | -10 °C ~ +70 °C (14 ~ 158 °F) |
| Fiber Type | Corning ClearCurve® Multimode Fiber |
| Color | Magenta |
| Compliance | TIA/EIA-568, IEC 61754-7, RoHS |
Key Benefits
✅ High-Precision Connectivity: US Conec MTP® connectors ensure alignment accuracy and long-term performance.
✅ Fast Deployment: Reduces installation time by over 60% compared to field termination.
✅ Scalable Design: Supports seamless migration to 400G/800G parallel optics.
✅ Enhanced Aesthetic: Magenta jacket improves visual identification and cable management in data center racks.
⚙️ Key Features
- Connector Type: MTP®-12 UPC (Female) to MTP®-12 UPC (Female)
- Fiber Type: OM4 Multimode (50/125μm)
- Length: 5m (16ft)
- Polarity: Type A
- Insertion Loss: ≤0.35dB
- Jacket Rating: Plenum (OFNP)
- Color: Magenta (Data Center Identification Standard)
- Compliance: TIA/EIA-568, RoHS, IEC-61754-7
🚀 Advantages
- Plug-and-play deployment: No field termination required
- Compact & flexible: Ideal for high-density racks and cabinets
- Superior performance: Factory-tested for IL/RL and polarity
- Versatile application: Compatible with 40G QSFP+ SR4, 100G QSFP28 SR4, and future parallel multimode optics
- Enhanced reliability: US Conec genuine MTP® connectors ensure precise alignment and durability

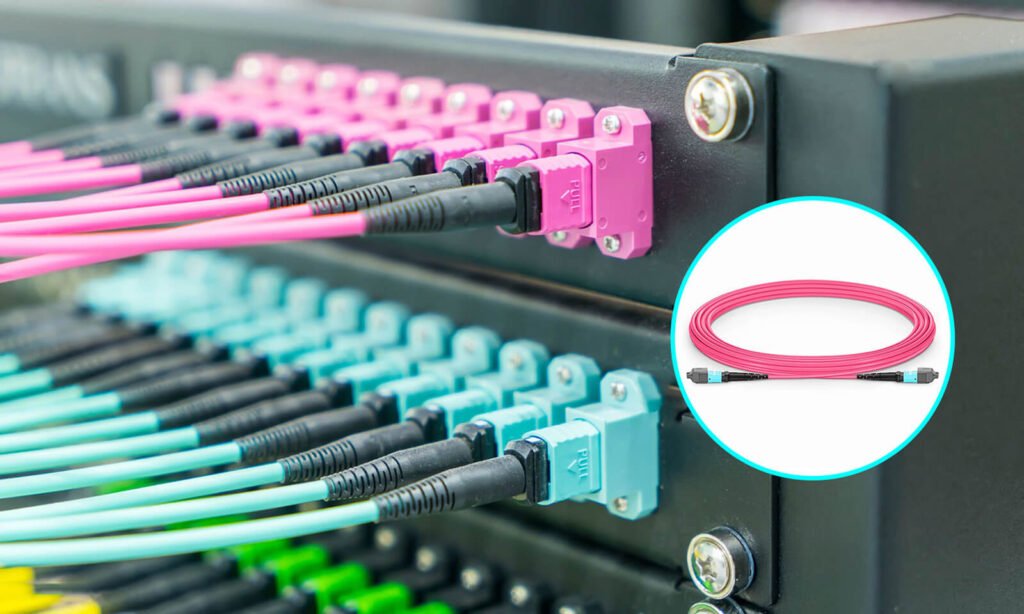

🏗️ Application Scenarios
- High-density data center patching
- Fiber backbone interconnections
- Server-to-switch connections
- Migration from 10G to 40G/100G parallel optics
