Description

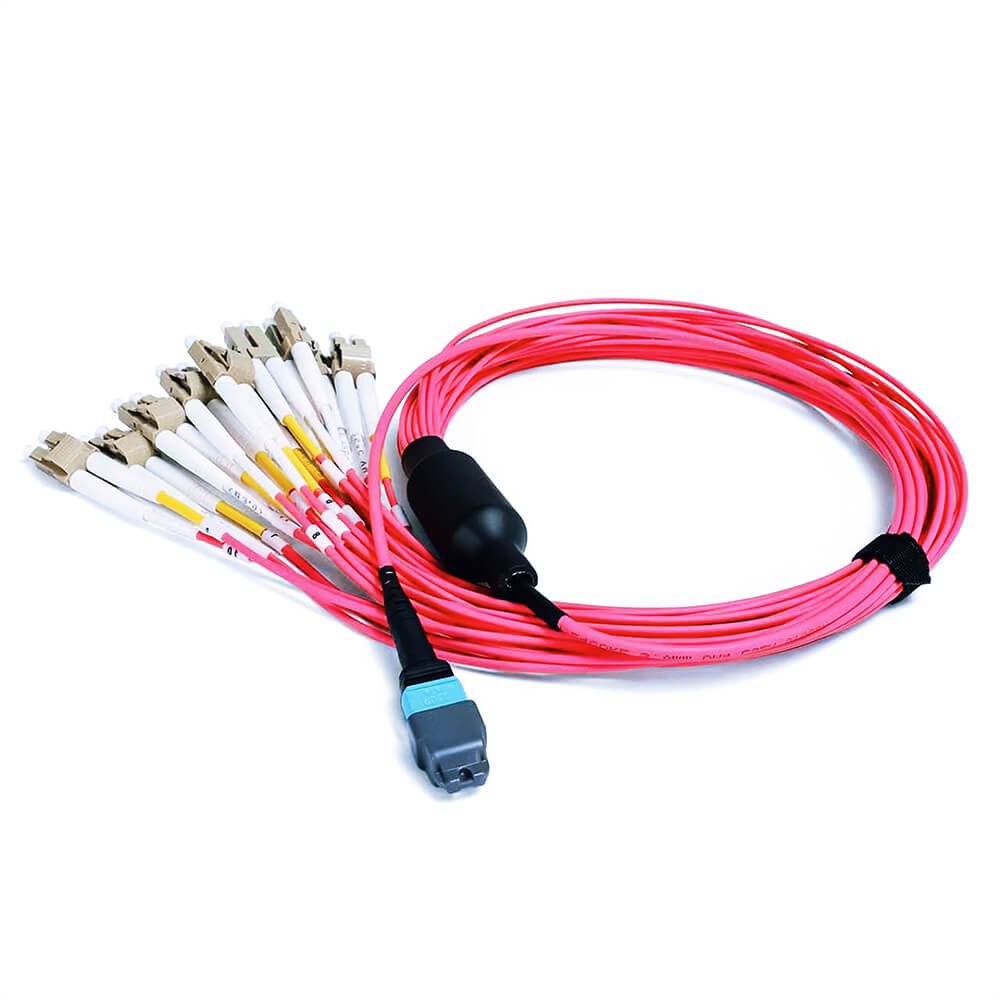

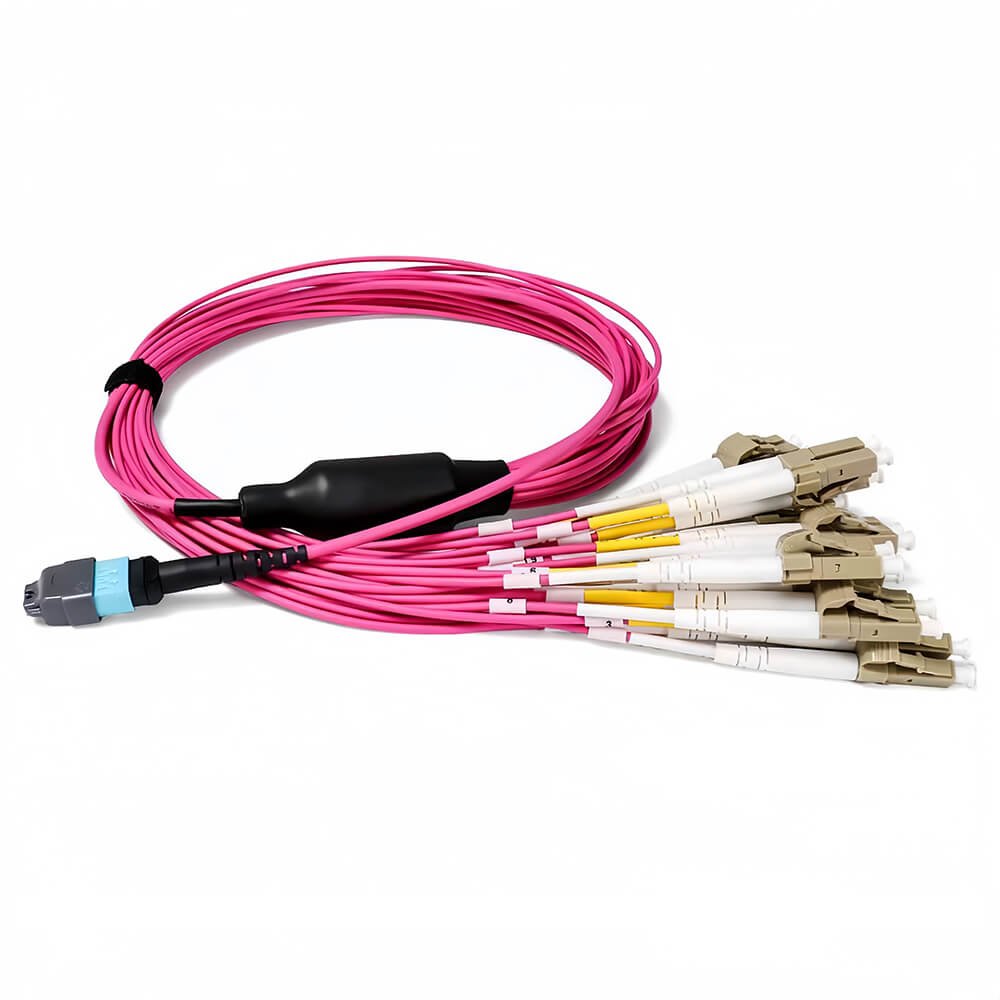

The ABPTEL MPO-24 to 12x LC UPC Duplex OM4 Multimode Breakout Cable is an ideal solution for high-density fiber cabling in modern data centers and enterprise networks. This cable converts a single MPO-24 connector into 12 LC UPC duplex connectors, offering a cost-effective method to reduce cable congestion while maximizing rack space efficiency.
With 24 fibers in OM4 multimode, this breakout cable supports data rate conversion, such as splitting a 100G CPAK or QSFP28 port into twelve 10G SFP+ links. This makes it particularly valuable in data centers where multiple lower-speed connections are required from a single high-speed uplink.
Built with elite performance MTP/MPO connectors, Type B polarity, and a low-smoke zero halogen (LSZH) jacket, the cable ensures reliable operation, excellent optical performance, and compliance with modern data center safety standards. The magenta jacket color provides easy identification for OM4 multimode cabling.
This breakout cable is a cost-effective alternative to field termination, enabling fast, plug-and-play deployment in structured cabling systems. It is widely used in cloud computing networks, enterprise IT, hyperscale data centers, and telecom environments requiring scalable, high-density fiber connectivity.
Specifications
| Parameter | Specification |
|---|---|
| Connector A | MPO-24 UPC Female |

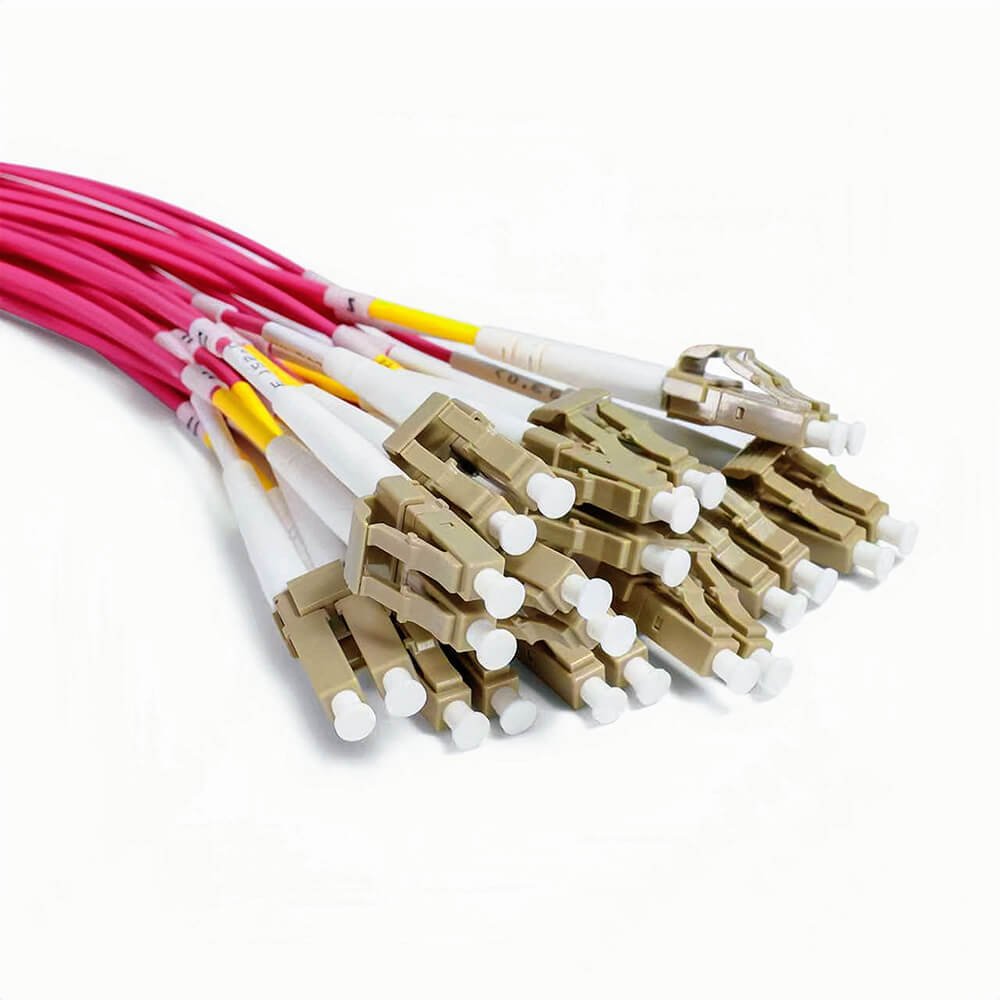

| Connector B | 12x LC UPC Duplex |
| Fiber Count | 24 Fibers |
| Fiber Mode | OM4 Multimode 50/125µm |
| Cable Length | 1m (3ft) |
| Jacket Material | LSZH |
| Polarity | Type B |
| Color | Magenta |
| Insertion Loss | ≤0.35dB (Typical) |
| Return Loss | ≥20dB |
| Application | 100G to 10G Breakout, Data Centers, Telecom, Enterprise IT |
Key Benefits
- High-Density Cabling: Converts MPO-24 into 12 LC duplex connectors for rack efficiency.
- Flexible Data Rate Conversion: Supports 100G to multiple 10G breakout connections.
- Superior Performance: Low insertion loss with UPC polished connectors.
- Cost-Effective: Eliminates complex field termination with plug-and-play installation.
- Reliable Construction: LSZH jacket ensures safety in critical data center environments.
- Visual Identification: Magenta color for OM4 multimode fiber management.
