Description

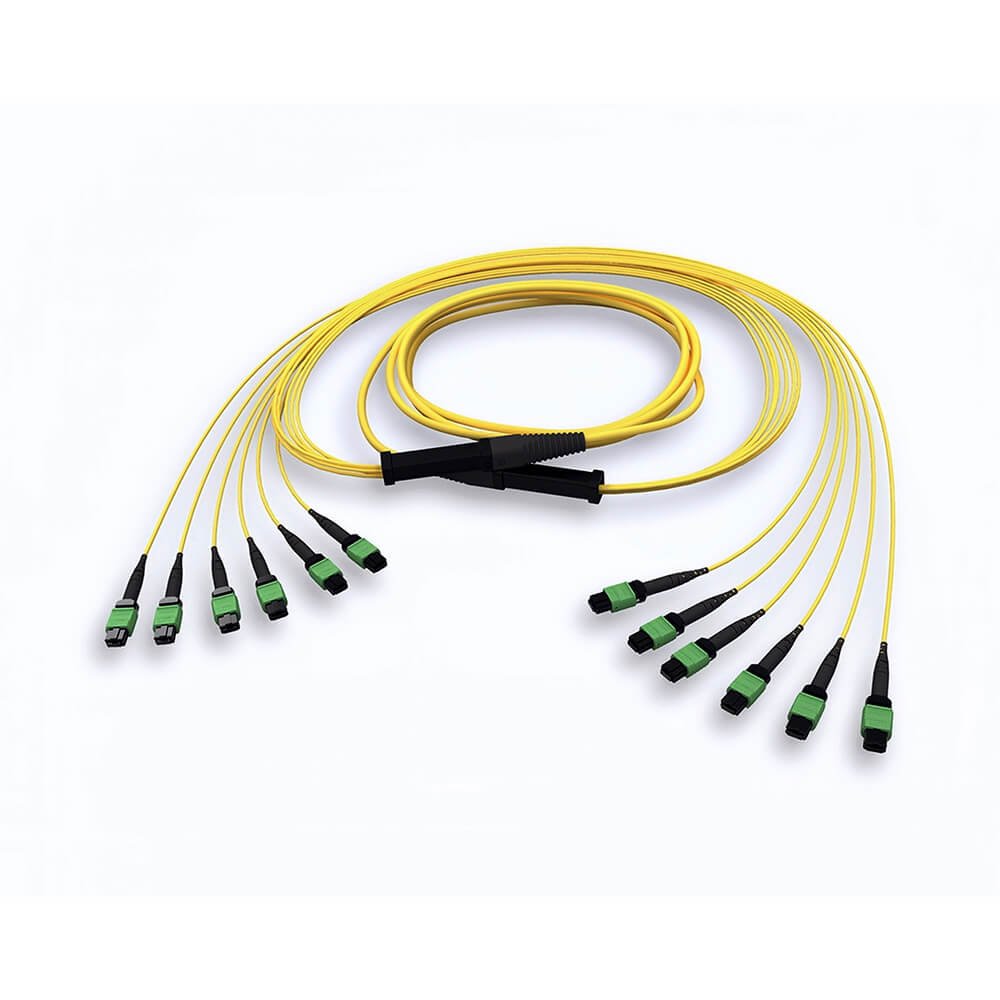

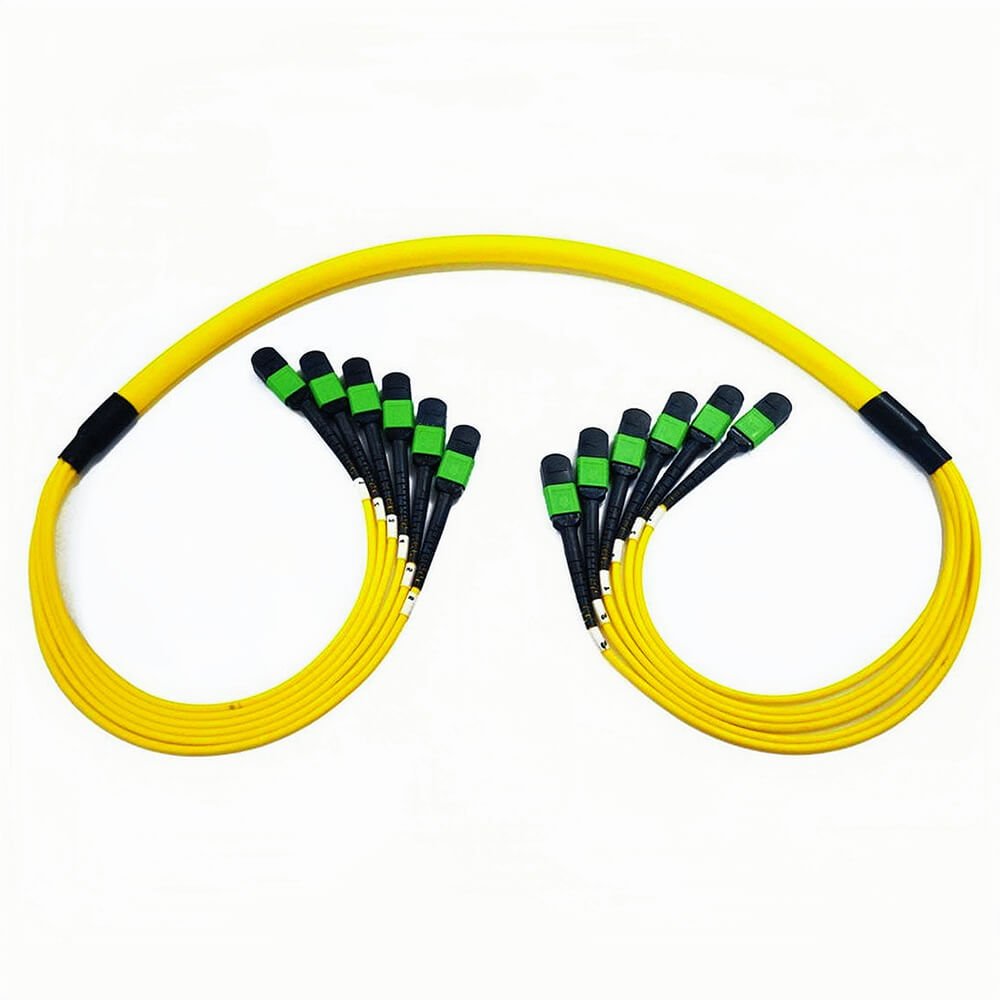

The 72F MTP/MPO OS2 trunk cable is designed for ultra-high density cabling in hyperscale data centers, cloud computing facilities, and AI/5G backbone networks. With 72 fibers bundled in a single cable and Type A polarity, it enables efficient parallel transmission for 40G/100G/400G/800G Ethernet applications.
Constructed with OS2 wideband multimode fiber (50/125µm), this cable supports SWDM (Shortwave Wavelength Division Multiplexing) technology, providing extended reach and flexibility compared to OM3/OM4 solutions. The LSZH (Low Smoke Zero Halogen) jacket ensures fire safety and environmental protection, making it suitable for critical installations.
Each assembly is factory-terminated and 100% tested, ensuring low insertion loss, consistent optical performance, and compliance with international standards.
🔹 Specifications
| Item | Specification |
|---|---|
| Fiber Count | 72 Fibers |
| Connector Type | MTP/MPO Male or Female (customizable) |
| Fiber Type | OS2 Singlemode, 50/125µm |
| Polarity | Type A |
| Insertion Loss | ≤0.35 dB (typical ≤0.25 dB) |
| Return Loss | ≥20 dB |
| Jacket Type | LSZH (Low Smoke Zero Halogen) |
| Cable OD | 3.0mm / 4.5mm (customizable) |
| Operating Temperature | -10°C ~ +70°C |
| Standards Compliance | IEC-61754-7, TIA-604-5 (FOCIS-5), ISO/IEC 11801, RoHS |
🔹 Key Benefits
- ✔ High-Density Design – 72 fibers in one compact trunk for space-saving backbone cabling.
- ✔ OM5 Wideband Fiber – Supports SWDM technology for 40G/100G/400G/800G migration.
- ✔ Future-Proof – Optimized for AI clusters, cloud computing, and 5G infrastructure.
- ✔ Fire-Safe LSZH Jacket – Ensures halogen-free and low-smoke protection in critical environments.
- ✔ Low-Loss Performance – Factory-terminated and tested to guarantee stable optical transmission.
