Description

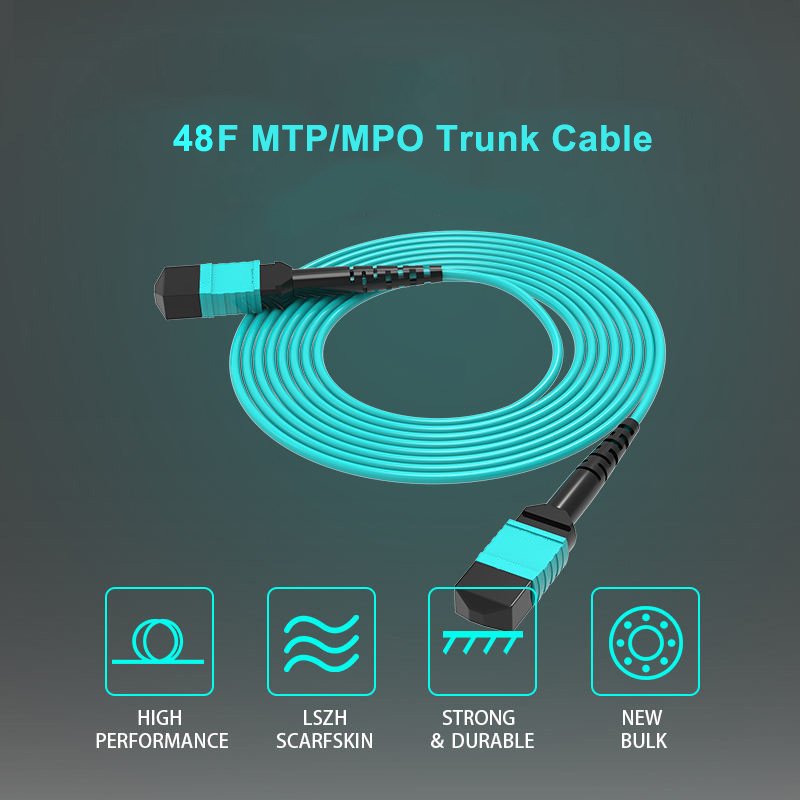

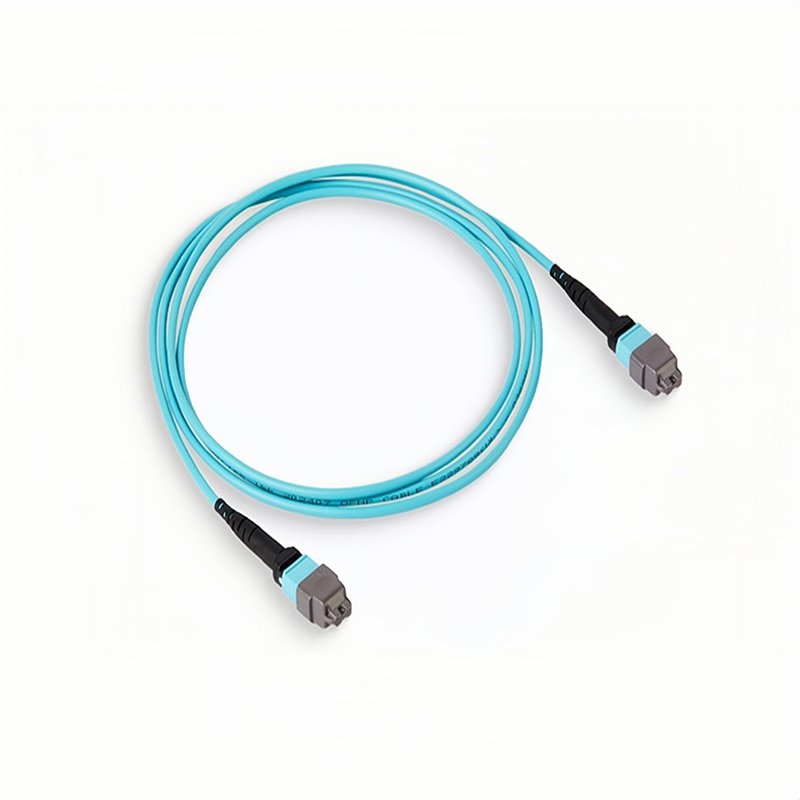

The 48F MTP/MPO OM3 trunk cable is engineered for high-density backbone cabling in enterprise and cloud data centers. Featuring male MTP®/MPO connectors and OM3 multimode fiber, this assembly supports reliable transmission for 40G/100G/400G applications. The plenum-rated jacket (OFNP) provides superior flame resistance and low-smoke performance, making it suitable for installation in return-air plenums and critical facility environments.
Factory-terminated and tested assemblies ensure low insertion loss, minimal return loss, and compliance with TIA/EIA and IEC standards, enabling seamless integration into structured cabling systems.
Specifications
| Item | Specification |
|---|---|
| Fiber Count | 48 Fibers |
| Connector Type | MTP/MPO Male to Male (with guide pins) |
| Fiber Type | OM3 Multimode, 50/125µm |
| Polarity | Type A (Standard) |
| Insertion Loss | ≤0.35 dB (typical ≤0.25 dB) |
| Return Loss | ≥20 dB |
| Jacket Type | Plenum (OFNP) |
| Cable OD | 3.0mm or customized |
| Operating Temperature | -10°C ~ +70°C |
| Standards Compliance | IEC-61754-7, TIA-604-5 (FOCIS-5), RoHS, UL910 (Plenum) |
Key Benefits
- ✔ High-Density Design – 48 fibers in one compact trunk for efficient data center cabling.
- ✔ OM3 Multimode Performance – Optimized for 10G/40G/100G backbone applications.
- ✔ Plenum-Rated Jacket – Meets OFNP fire safety requirements for critical installations.
- ✔ Low-Loss Connectivity – Factory tested to guarantee consistent optical performance.
- ✔ Scalable Deployment – Ideal for cloud computing, enterprise, and colocation facilities.
