Description

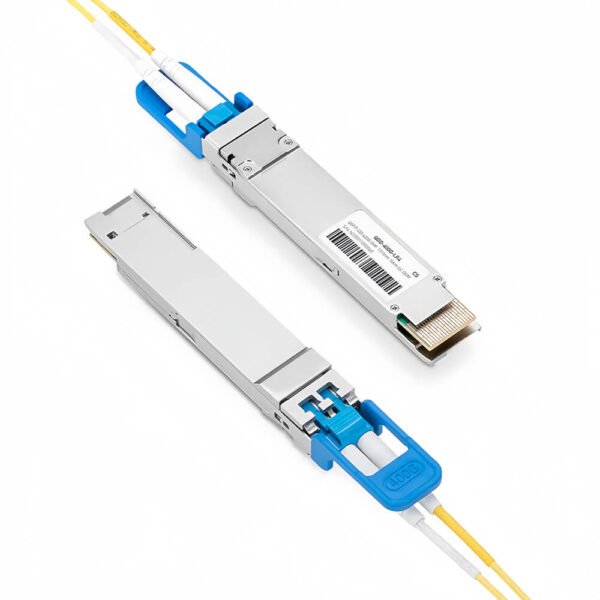

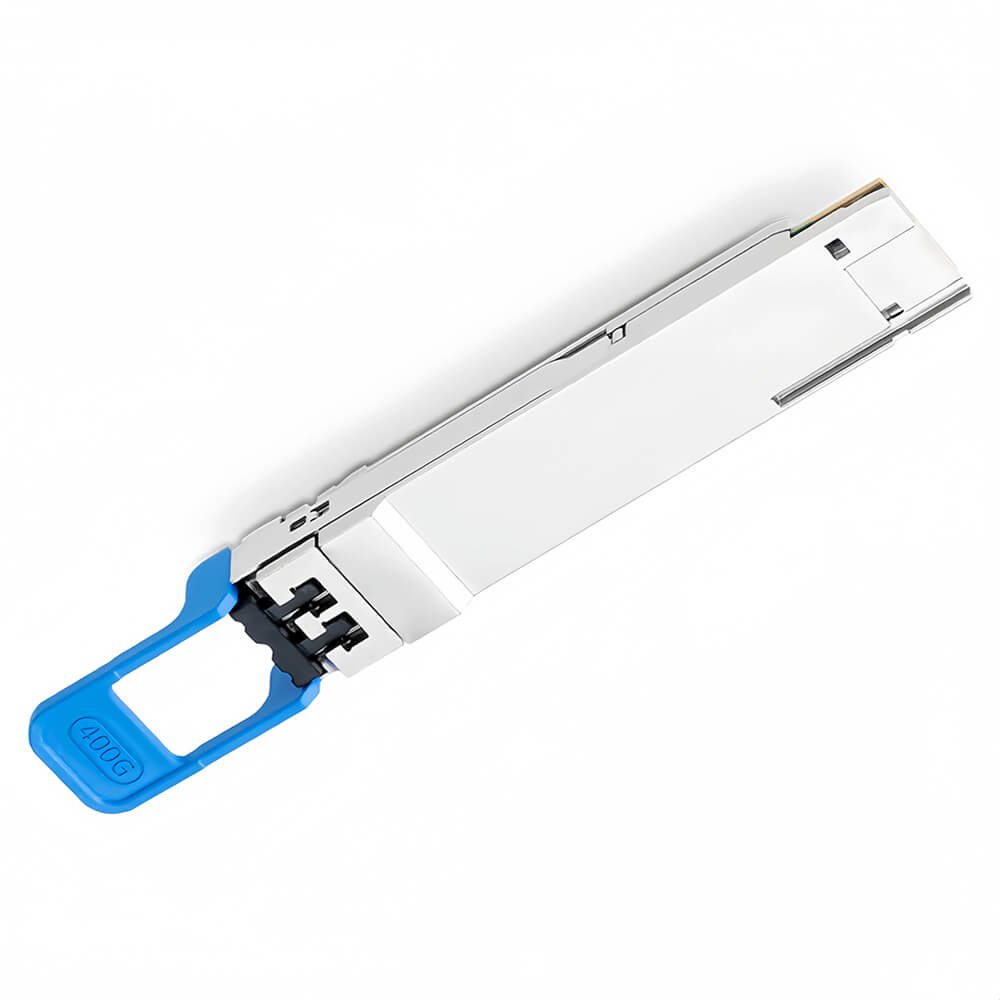

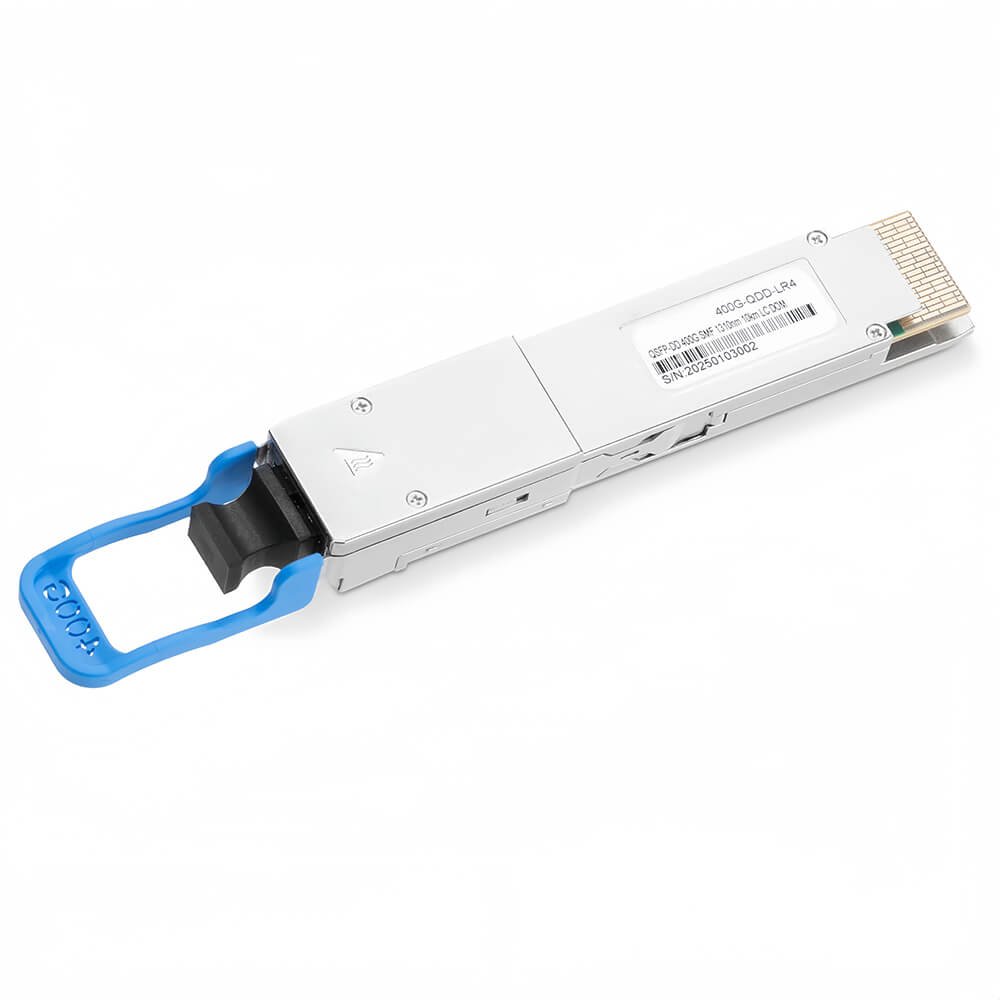

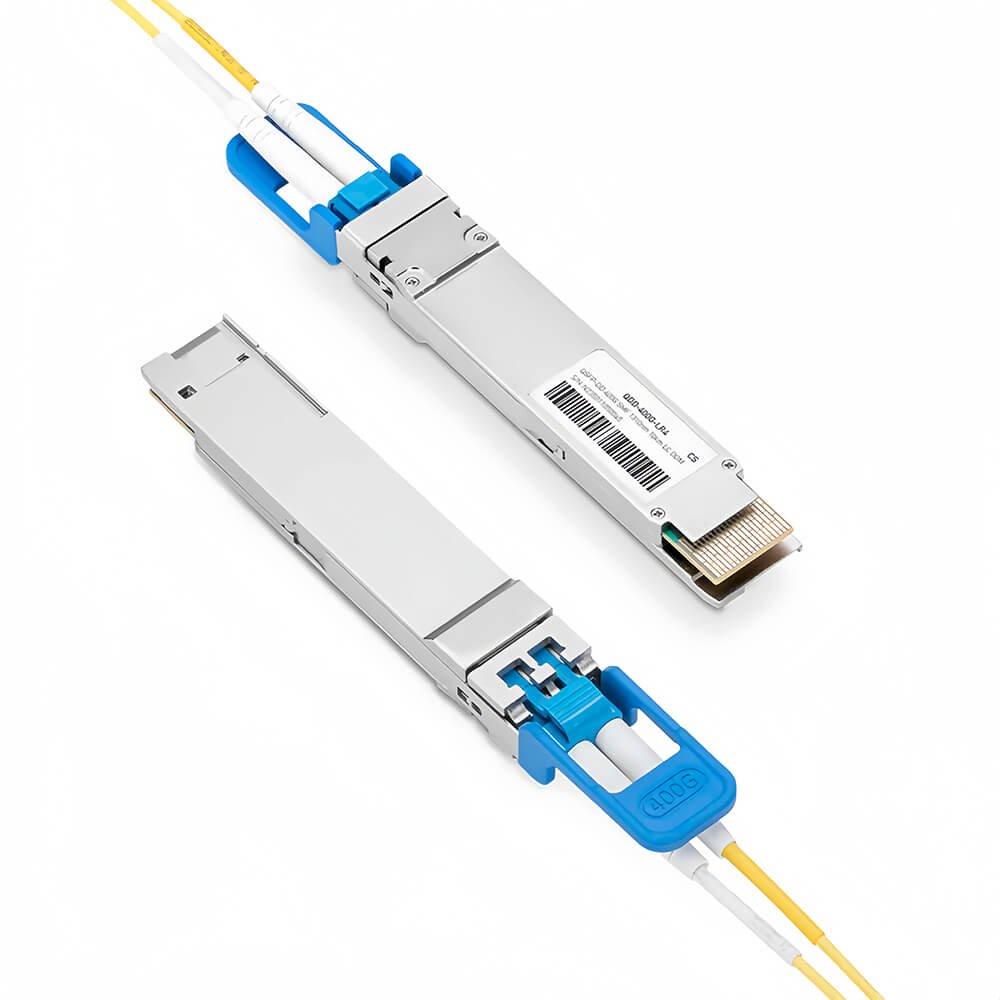

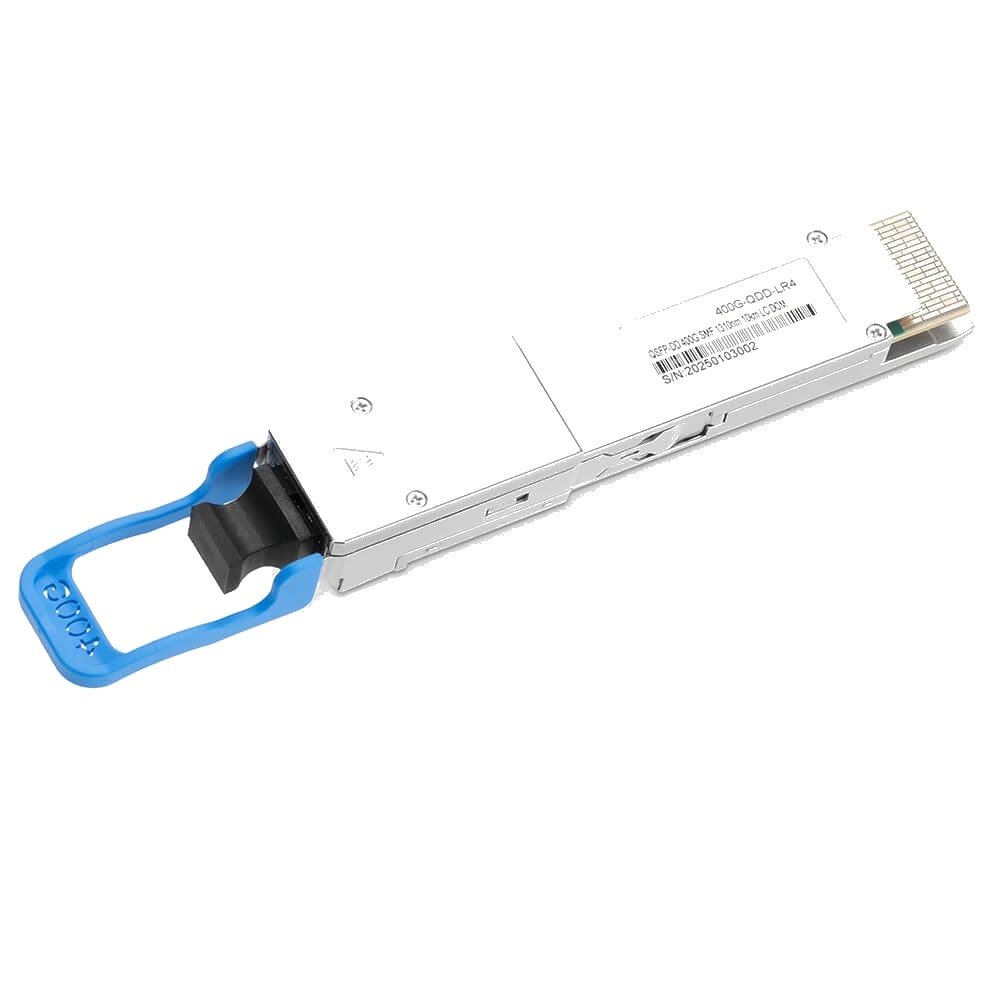

The ABPTEL 400G-QDD-LR4 is a high-performance, long-reach optical transceiver designed for 400 Gigabit Ethernet applications. Operating in the QSFP-DD form factor, it supports data rates up to 425Gbps and provides reliable transmission over 10km single-mode fiber (SMF).
This module leverages four CWDM wavelengths (1271nm, 1291nm, 1311nm, 1331nm) multiplexed into a duplex LC optical interface, ensuring seamless high-speed connectivity. With a PIN receiver, CWDM EML transmitter, and ≤9W low power consumption, the ABPTEL 400G LR4 transceiver offers superior performance for data center interconnects, enterprise backbone networks, and telecom infrastructures.
Fully compliant with QSFP-DD MSA, IEEE 802.3bs, and 400GAUI-8 standards, the ABPTEL 400G-QDD-LR4 guarantees interoperability and future-ready scalability for next-generation networks.
Specifications
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps |
| Wavelength | 1310nm (1271/1291/1311/1331nm CWDM) |
| Media | SMF |
| Connector | Duplex LC |
| Transmitter Type | CWDM EML |
| Receiver Type | PIN |
| TX Power | -1.9 ~ 4.8dBm |
| Receiver Sensitivity | < -8.2dBm |
| Electrical Modulation | 8 × 53.125Gb/s PAM4 |
| Optical Modulation | 4 × 106.25Gb/s PAM4 |
| Power Consumption | ≤9W |
| CBit Error Ratio (BER) | 1.0E-12 |
| Temperature Range | 0°C ~ 70°C (32°F ~ 158°F) |
| Operating Humidity | 5% ~ 85% |
| Host FEC | Supported |
| DDM/DOM | Supported |
| Protocols | QSFP-DD MSA, IEEE 802.3cd, RoHS |
| Max Cable Distance | 10km |
| Main Applications | 400G Ethernet, Data Center Interconnect, Telecom Networks |
Key Benefits
- High-performance 400G QSFP-DD LR4 transceiver for long-reach SMF links
- Supports 10km transmission over single-mode fiber at 1310nm CWDM
- Duplex LC interface with CWDM EML transmitter and PIN receiver
- Low power consumption (≤9W), optimized for high-density deployments
- Fully compliant with QSFP-DD MSA, IEEE 802.3bs, and 400GAUI-8 standards
- Ideal for data centers, enterprise networks, and telecom backbone connectivity
