Description

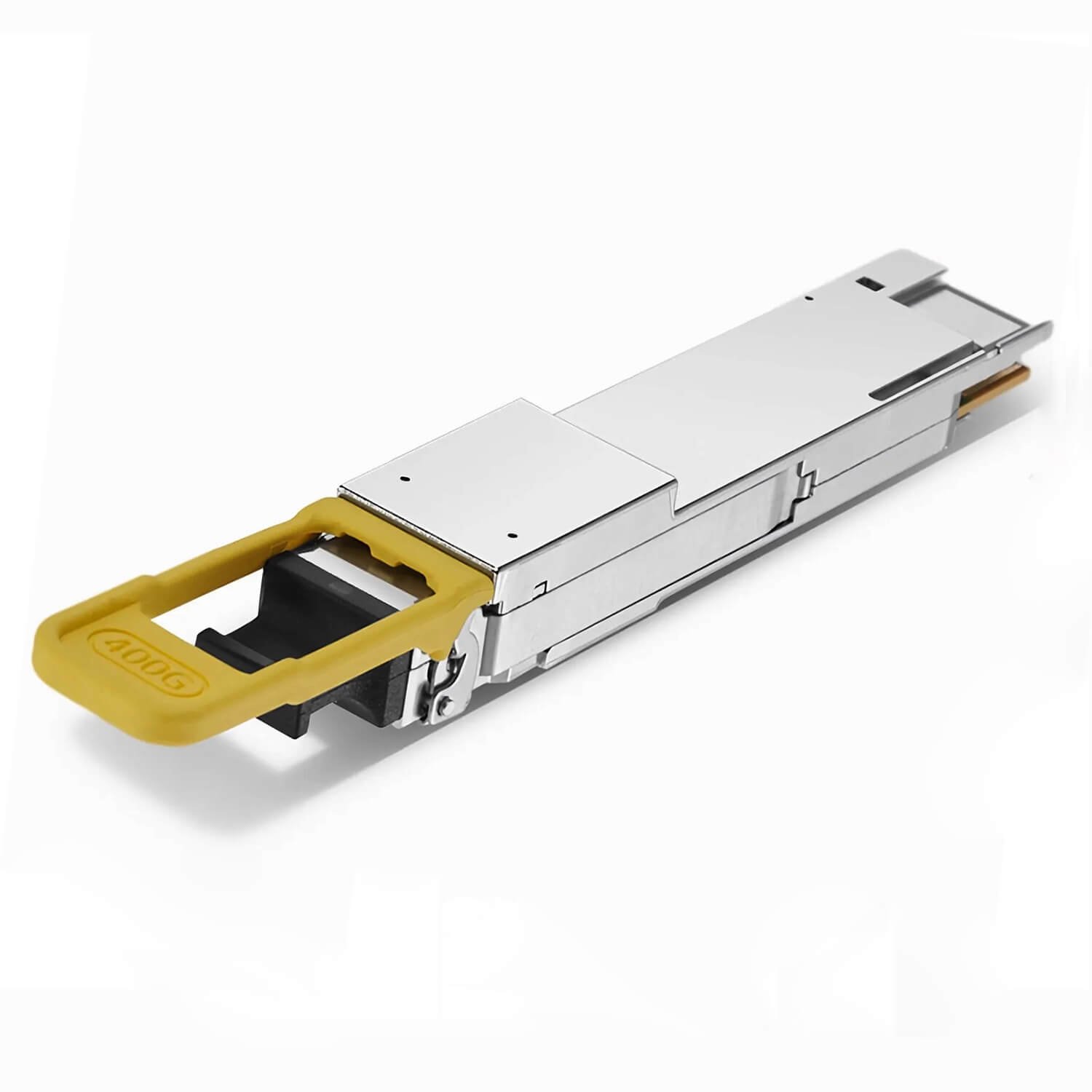

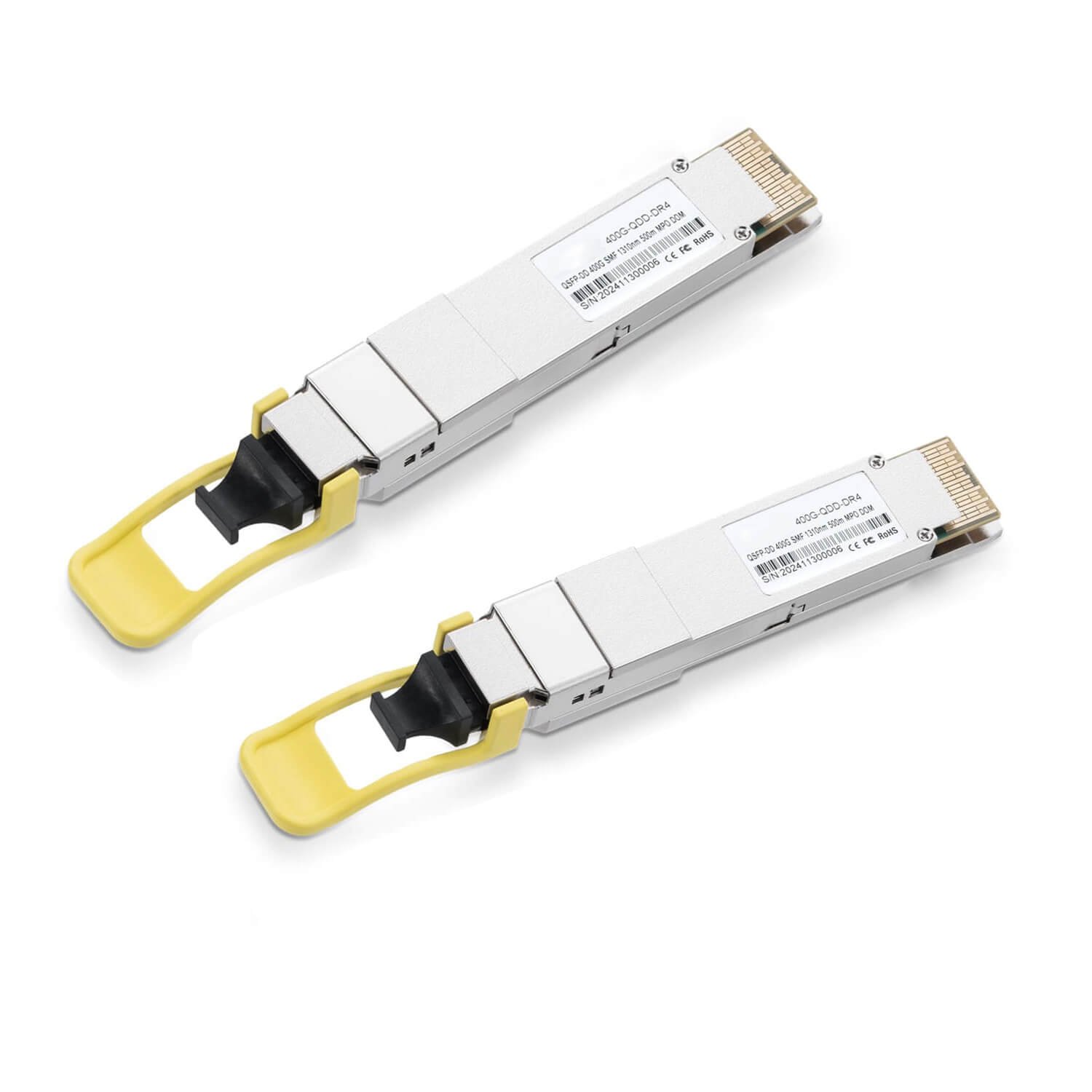

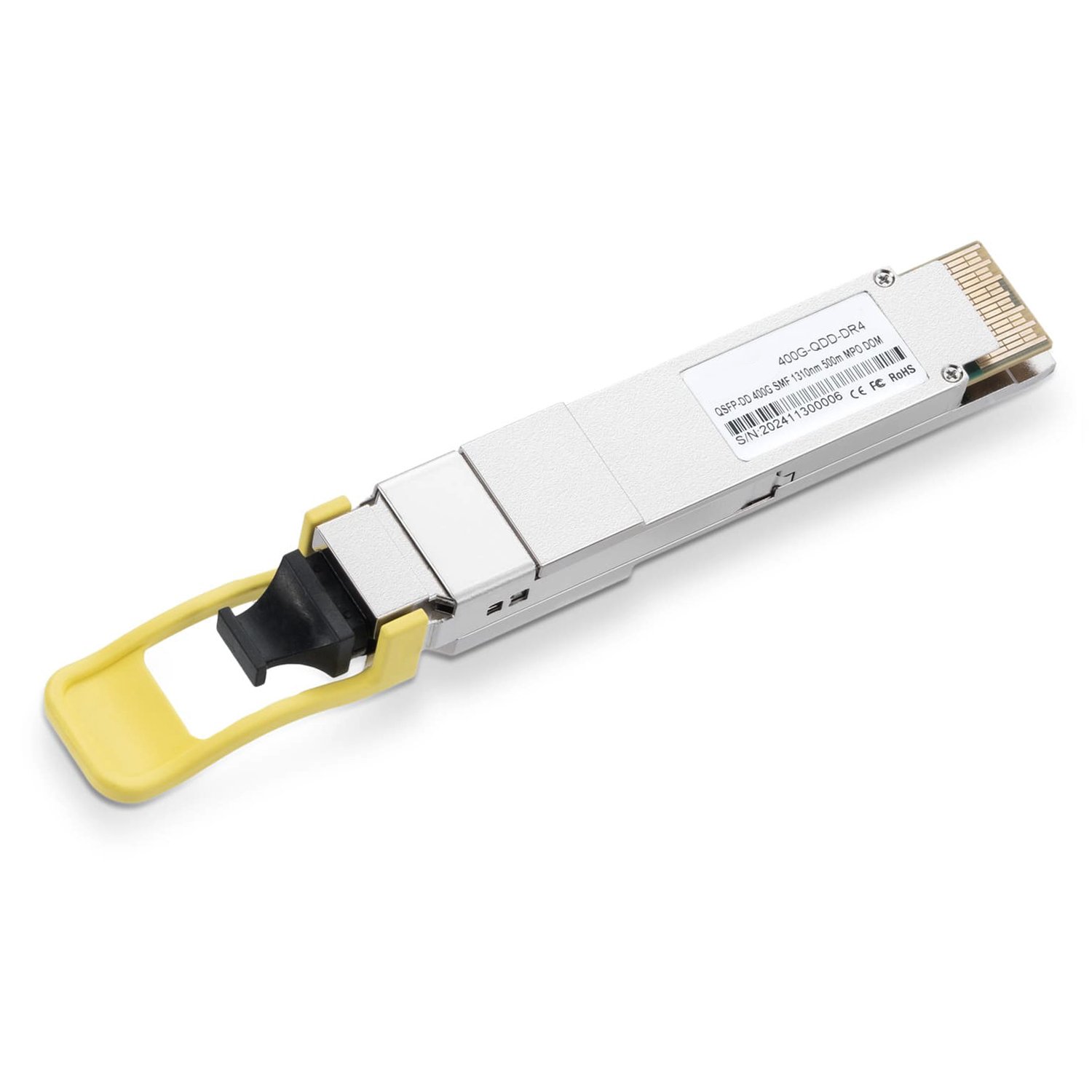

The ABPTEL 400G-QDD-DR4 is a high-performance, short-reach optical transceiver module designed for 400 Gigabit Ethernet applications. Operating in the QSFP-DD form factor, it supports data rates up to 425Gbps and provides reliable transmission over 500 meters single-mode fiber (SMF).
This module uses 1310nm EML transmitters and PIN receivers, delivering exceptional signal integrity and low bit error rates. With 8×53.125Gb/s PAM4 electrical lanes and 4×106.25Gb/s PAM4 optical modulation, it ensures efficient, high-bandwidth connectivity for data center interconnects (DCI) and enterprise backbone networks.
Featuring a compact MPO-12 APC connector and low power consumption (≤10W), the ABPTEL 400G DR4 module provides a reliable and cost-effective 400G solution. Fully compliant with QSFP-DD MSA, IEEE 802.3cd, and RoHS standards, it integrates seamlessly into modern network infrastructures.
Specifications
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps |
| Wavelength | 1310nm |
| Media | SMF |
| Connector | MPO-12 APC |
| Transmitter Type | EML |
| Receiver Type | PIN |
| TX Power | -2.9 ~ 4.0dBm |
| Receiver Sensitivity | < -5.9dBm |
| Electrical Modulation | 8 × 53.125Gb/s PAM4 |
| Optical Modulation | 4 × 106.25Gb/s PAM4 |
| Power Consumption | ≤10W |
| CBit Error Ratio (BER) | 1.0E-12 |
| Temperature Range | 0°C ~ 70°C (32°F ~ 158°F) |
| Operating Humidity | 5% ~ 85% |
| Host FEC | Supported |
| DDM/DOM | Supported |
| Protocols | QSFP-DD MSA, IEEE 802.3cd, RoHS |
| Max Cable Distance | 500m |
| Main Applications | 400G Ethernet, Data Center Interconnect, Enterprise Networks |
Key Benefits
- High-performance 400G QSFP-DD DR4 module for short-reach 500m SMF applications
- Operates at 1310nm with MPO-12 APC connector for easy integration
- Low power consumption (≤10W), ideal for high-density data center deployments
- Full compliance with QSFP-DD MSA, IEEE 802.3cd, RoHS standards
- Compatible with leading OEM platforms: Cisco, Arista, Juniper, Huawei, Dell, HPE
- Reliable solution for data center interconnect (DCI) and enterprise backbones
