Description

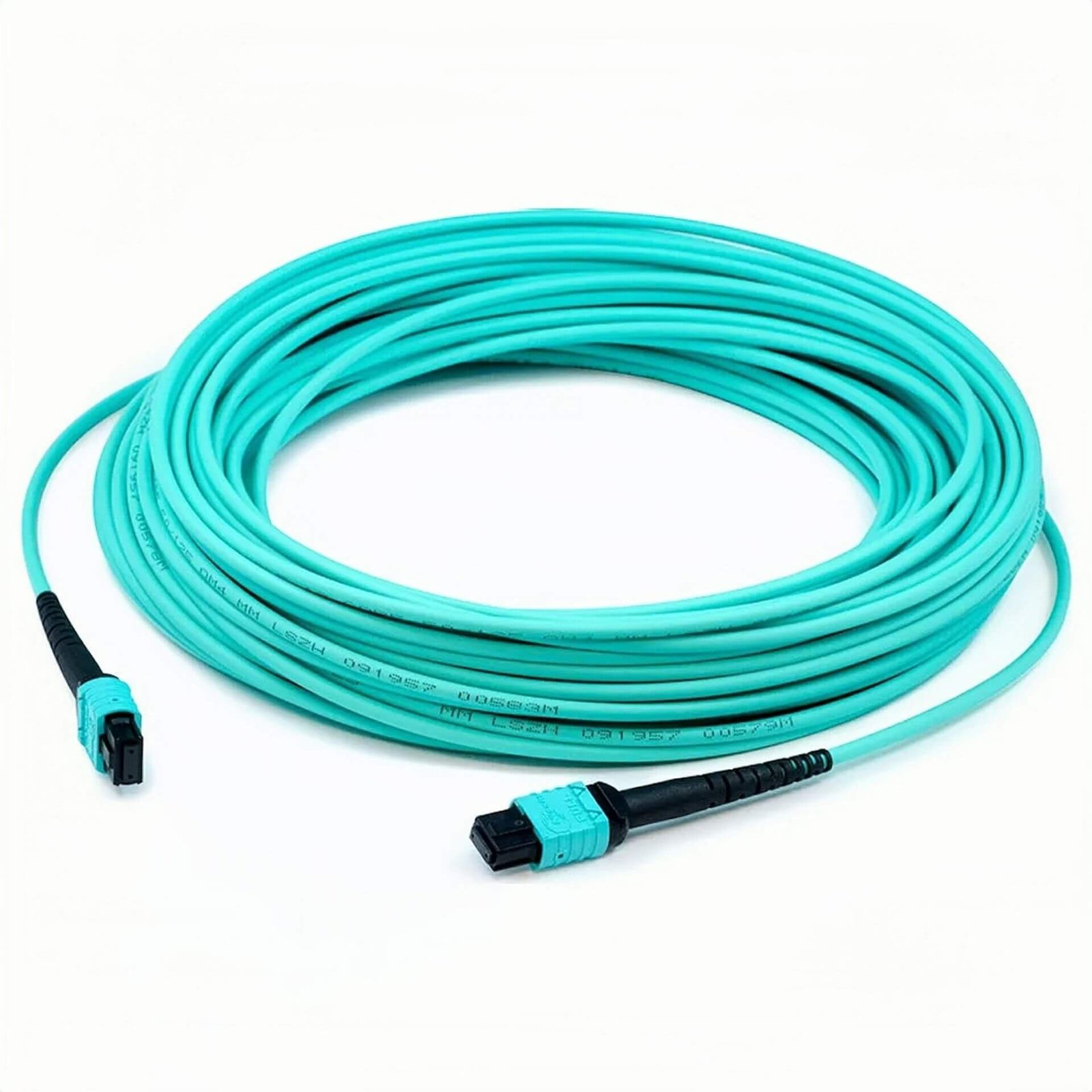

The 24F MTP/MPO OM3 Multimode trunk cable is designed for long-distance and high-bandwidth transmission in modern telecom and data center networks. With female-to-female MTP®/MPO connectors and 24 fibers, this trunk assembly enables efficient backbone cabling for 100G/200G/400G Ethernet.
The OFNP plenum-rated jacket provides excellent fire resistance, low smoke emission, and compliance with UL910 standards, making it ideal for installation in return-air plenums and other critical environments.
Each cable is factory-terminated and tested, ensuring ultra-low insertion loss, stable return loss, and compliance with IEC/TIA standards, guaranteeing reliable optical performance in demanding backbone applications.
Specifications
| Item | Specification |
|---|---|
| Fiber Count | 24 Fibers |
| Connector Type | MTP/MPO Female to Female (no pins) |
| Fiber Type | OM3 Multimode, 9/125µm |
| Polarity | Type B (default) |
| Insertion Loss | ≤0.35 dB (typical ≤0.25 dB) |
| Return Loss | ≥60 dB |
| Jacket Type | Plenum (OFNP) |
| Cable OD | 3.0mm (customizable) |
| Operating Temperature | -10°C ~ +70°C |
| Standards Compliance | IEC-61754-7, TIA-604-5 (FOCIS-5), RoHS, UL910 (Plenum) |
🔹 Key Benefits
- ✔ 24-Fiber High Capacity – Ideal for high-density singlemode backbone cabling.
- ✔ Long-Reach Transmission – OM3 Multimode fiber supports 10km+ distances at 10G/40G/100G rates.
- ✔ Plenum-Rated Jacket – Meets stringent OFNP fire safety requirements.
- ✔ Low-Loss Performance – Factory-terminated and 100% tested for optical reliability.
- ✔ Future-Proof – Scalable for 100G/200G/400G upgrades in telecom and cloud networks.
