Description

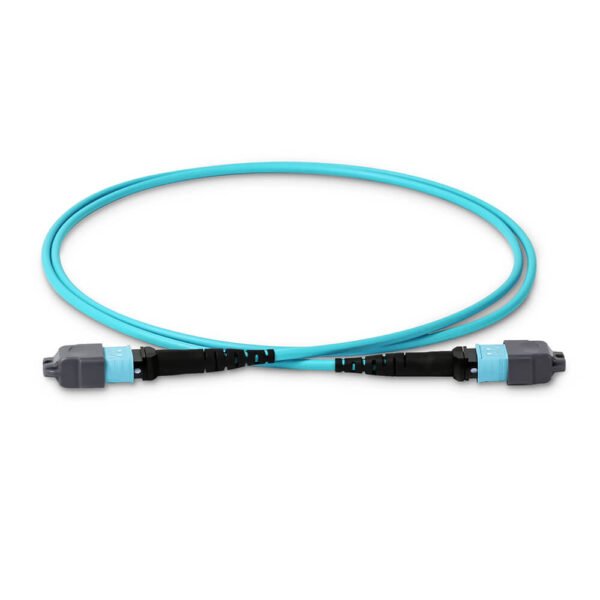

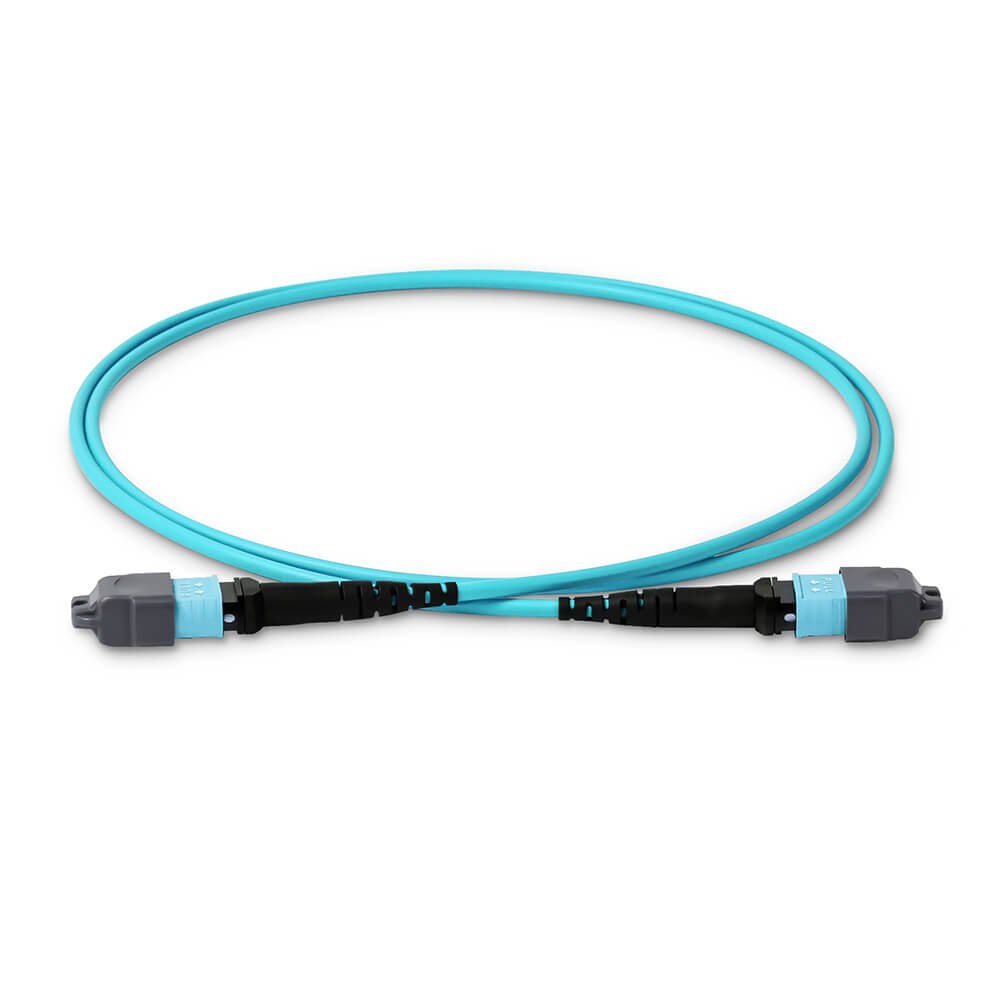

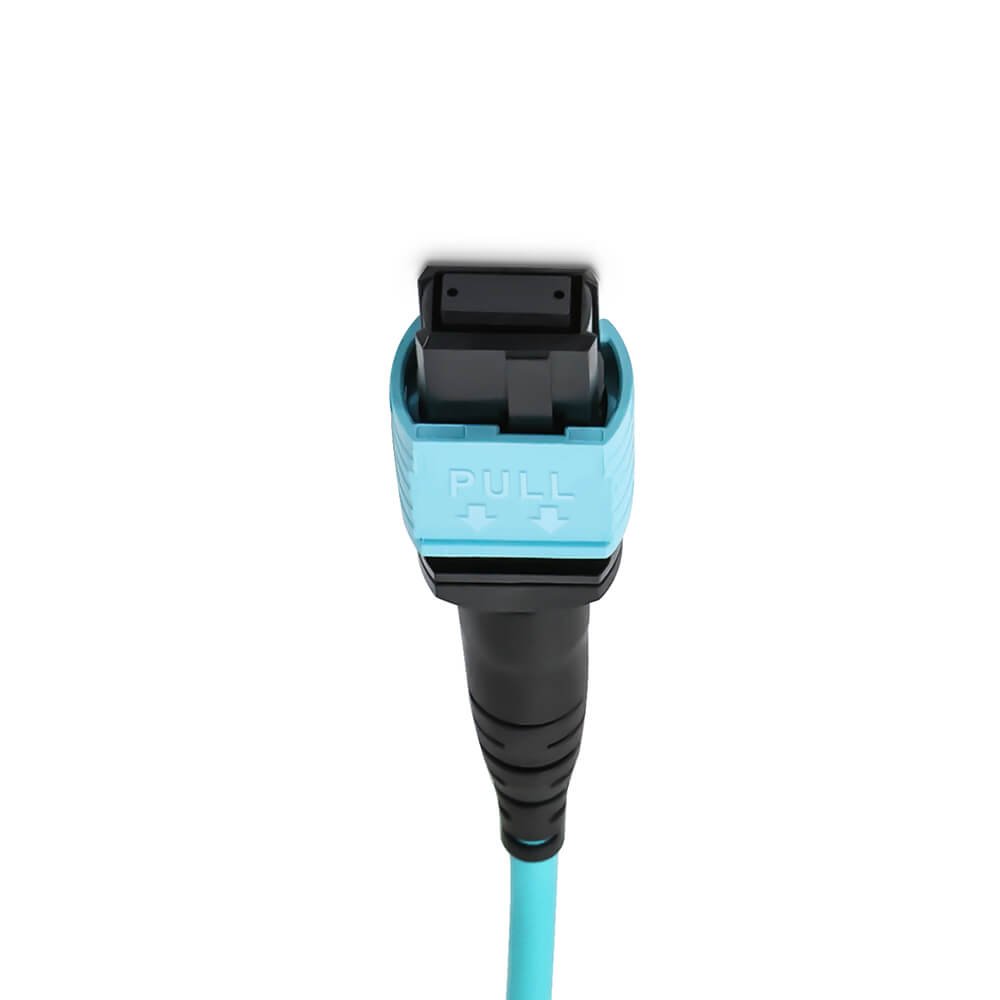

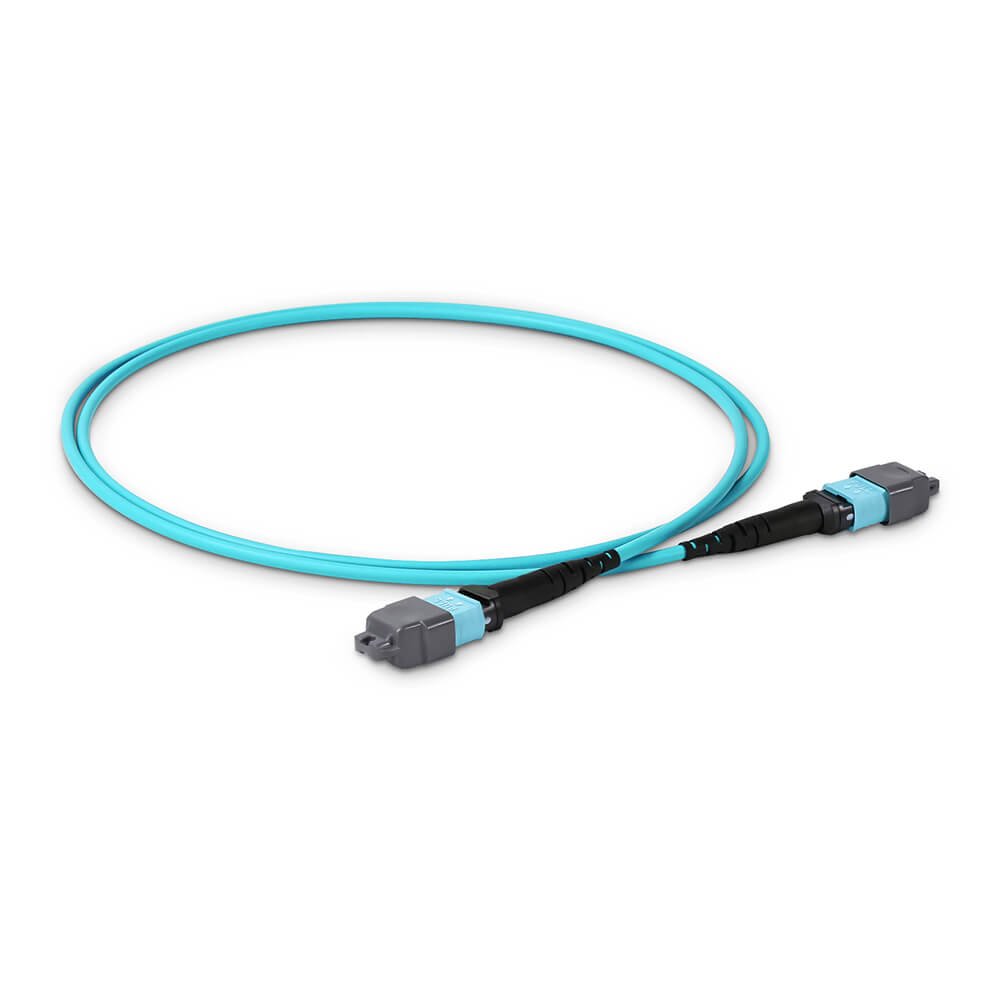

The ABPTEL MPO-16 APC to APC OM3 Multimode Trunk Cable delivers a high-density and reliable connectivity solution for today’s data centers and telecommunication networks. With 16 fibers in an aqua LSZH jacket, this 1m trunk cable is specially optimized for 100G direct connections.
Engineered by ABPTEL for superior performance, it ensures low insertion loss (≤0.35dB) and stable return loss (≥30dB), making it ideal for structured cabling, high-performance computing, and enterprise network environments. Compared to standard duplex connectors, the MPO design offers up to 8× the density, reducing rack space requirements while improving efficiency.
Choose ABPTEL’s MPO trunk cable for cost-effective, worry-free, and future-ready data center
Specifications
| Parameter | Specification |
|---|---|
| Connector A | MPO Female |
| Connector B | MPO Female |
| Fiber Count | 16 Fibers |
| Fiber Type | OM3 MMF 50/125µm |
| Polish Type | APC to APC |
| Cable Material | LSZH |
| Armoured | No |
| Wavelength | 850/1300nm |
| Insert Loss | ≤0.35dB |
| Return Loss | ≥30dB |
| Cable Diameter | 3.0mm |
| Min. Bend Radius (Core) | 7.5mm |
| Min. Bend Radius (Cable) | 20/10D (Dynamic/Static) |
| Attenuation | ≤2.3dB/km @ 850nm, ≤0.6dB/km @ 1300nm |
| Max Transmission Distance | 300m |
| Effective Bandwidth | ≥2000MHz·km @ 850nm |
| Tensile Strength | 80/150N (Long/Short Term) |
| Polarity | Type B |
| Operating Temp | -10℃ to +70℃ |
| Storage Temp | -40℃ to +85℃ |
Key Benefits
- High-density MPO-16 connectivity, supporting 100G direct optics
- LSZH jacket ensures safety and compliance for data center environments
- Low insertion loss (≤0.35dB) and high return loss (≥30dB) for reliable performance
- Compact 3.0mm diameter, optimized for structured cabling
- Up to 8× density compared to duplex connectors, saving rack space
- Ideal for data centers, telecom networks, and high-performance computing
