Description

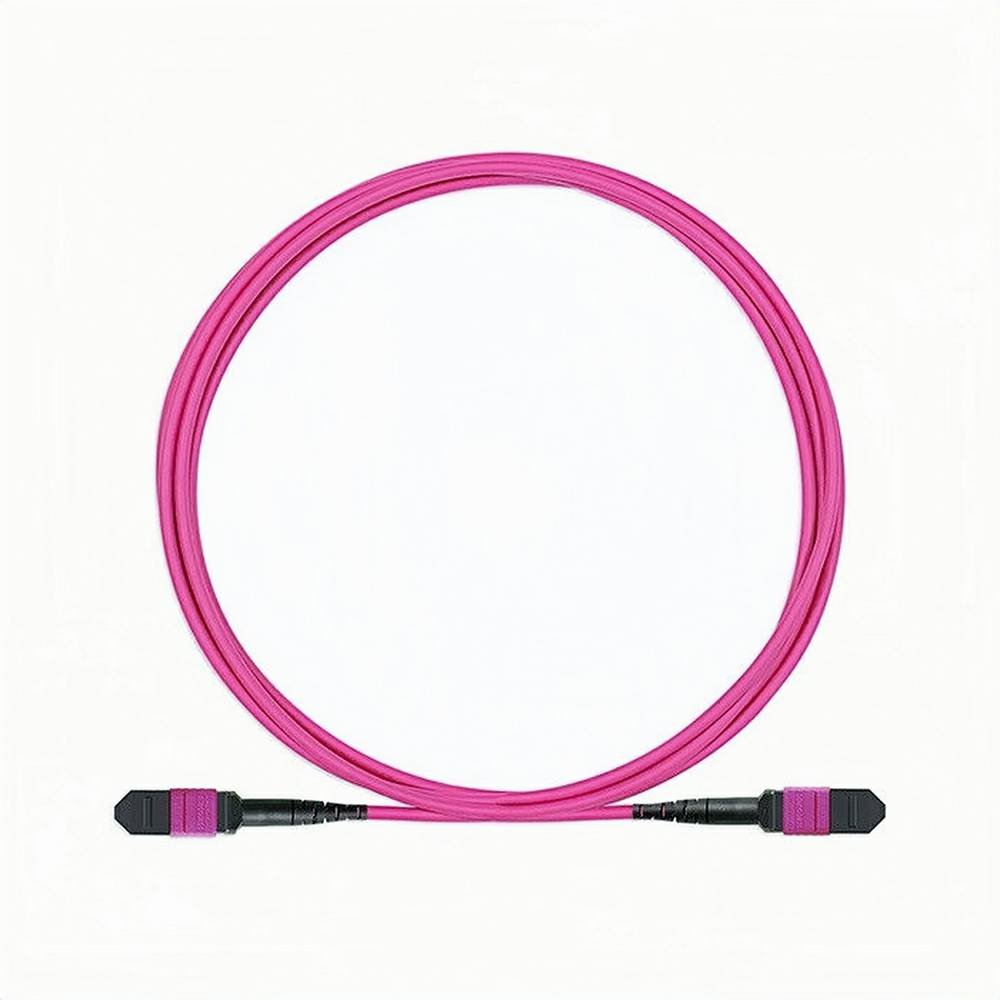

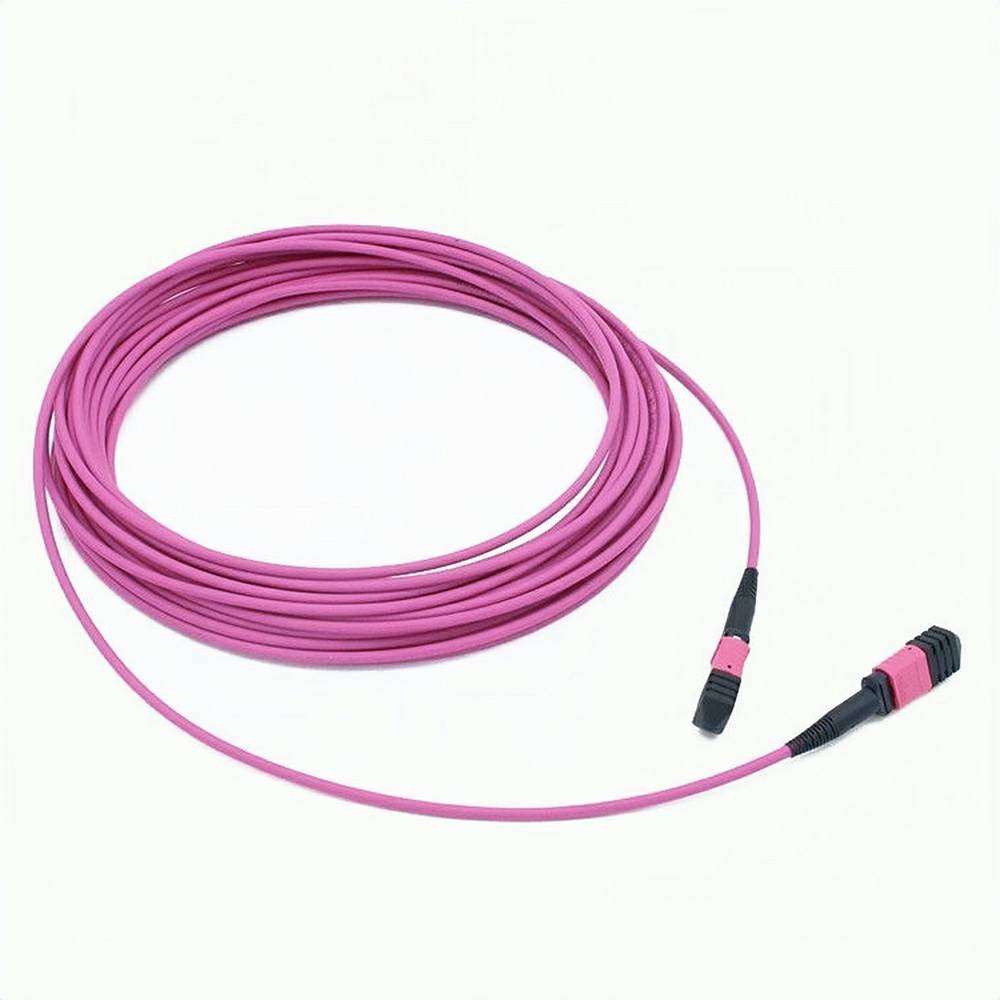

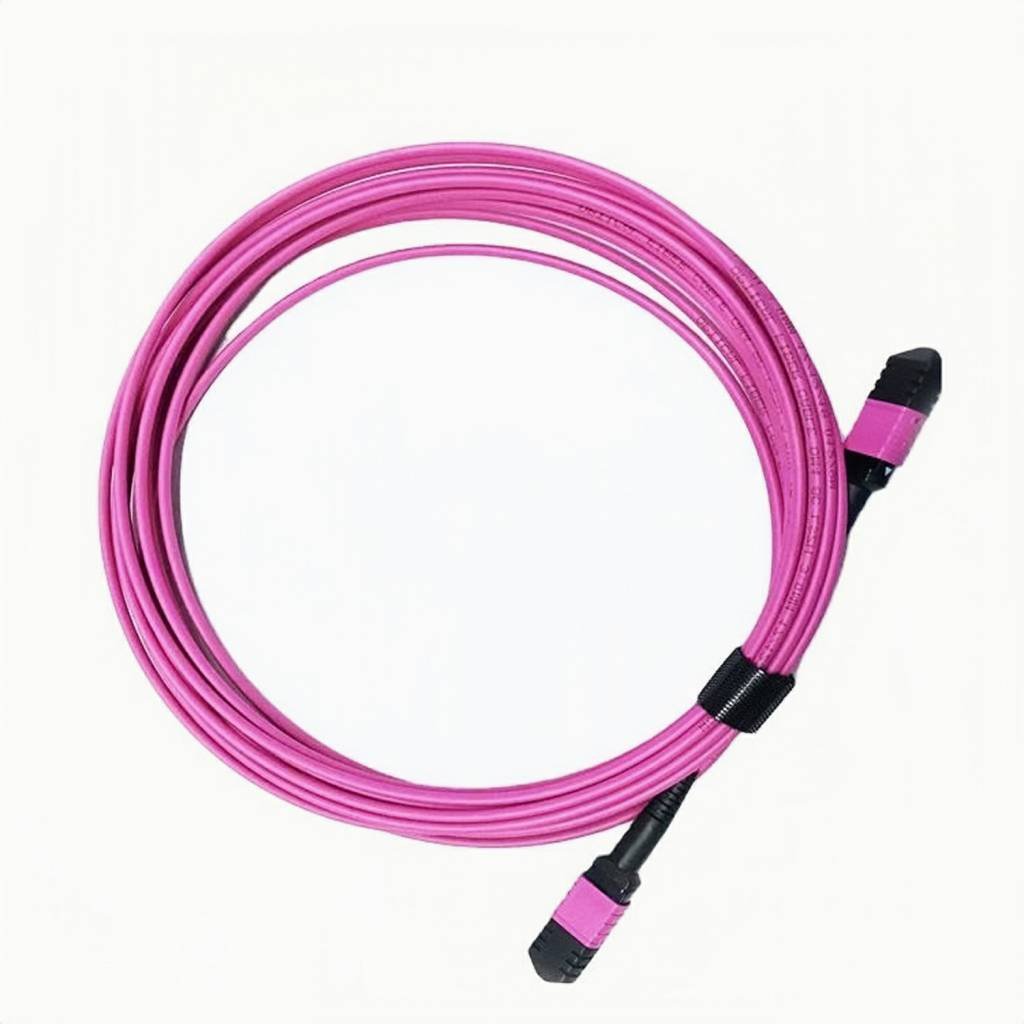

ABPTEL 12F MTP/MPO trunk cables are factory-terminated multi-fiber assemblies designed for high-density cabling systems. With OM4 multimode fiber, Polarity B, and LSZH jacket, they provide reliable performance in 40G/100G Ethernet, cloud computing, and AI data center environments. Each assembly is fully tested to ensure low insertion loss and high return loss, making them ideal for backbone and horizontal interconnections.
Specifications
| Item | Specification |
|---|---|
| Fiber Count | 12 Fibers |
| Connector Type | MTP/MPO Female to Female |
| Fiber Type | OM4 Multimode, 50/125µm |
| Polarity | Type B |
| Insertion Loss | ≤0.35 dB (typical ≤0.25 dB) |
| Return Loss | ≥20 dB |
| Jacket Type | LSZH (Low Smoke Zero Halogen) |
| Cable OD | 3.0mm |
| Operating Temperature | -10°C ~ +70°C |
| Standards Compliance | IEC-61754-7, TIA-604-5 (FOCIS-5), RoHS |
Key Benefits
- ✔ High-Density Cabling – Supports 40G/100G Ethernet migration.
- ✔ Low Loss Design – Factory tested for consistent optical performance.
- ✔ Flexible Deployment – Available in multiple lengths and jacket options.
- ✔ Safety Guaranteed – LSZH jacket ensures flame retardant and halogen-free protection.
