The Ultimate Guide to Outdoor Waterproof Ruggedized Fiber Optic Connectors (FTTA & Industrial)
In the rapidly expanding worlds of 5G telecommunications, industrial automation, and smart grids, standard fiber optic connectors simply cannot survive. When optical networks move from the safety of a data center to the top of a cell tower or into a dusty mine, they need armor.
This is where Ruggedized Fiber Optic Connectors come in.
Whether you are connecting a Remote Radio Unit (RRU) for Ericsson, Nokia, or Huawei, or setting up a harsh-environment sensing network, choosing the right waterproof interface is critical to preventing signal loss and network downtime.
In this guide, we break down the most popular Outdoor Waterproof Fiber Optic Connector Series, their specific applications, and how to choose the right one for your base station or industrial project.
Why "Ruggedized"? The Importance of IP Ratings
Before diving into specific models, it is essential to understand what these connectors protect against. Standard connectors (like a regular LC or SC) are fragile. Outdoor connectors feature specialized housings that provide:
- Waterproof & Dustproof (IP67/IP68): Ensuring zero ingress of moisture or dust particles.
- Mechanical Protection: Resistance to vibration, crushing, and pulling tension (cable retention).
- UV Resistance: Materials that won’t crack under years of direct sunlight.
Deep Dive: Common Outdoor Connector Series
At ABPTEL, we provide compatible waterproof interconnect solutions for all major equipment brands, including ZTE, Huawei, Nokia, and Ericsson. Here is a breakdown of the industry-standard interfaces.
1. PDLC Fiber Optic Connector (The "Mini SC")
Compatibility: Mostly Ericsson, also Huawei and generic FTTA.
PDLC (Pushable Durable LC) is the workhorse of the FTTA world. It houses a standard duplex LC connector inside a robust, waterproof shell.
- Key Feature: It is often called the "Mini SC" style because its outer housing size is similar to an SC connector, but it carries two fibers (LC Duplex).
- Application: Commonly found connecting RRUs to the Base Band Unit (BBU) on cell towers. It offers a stable, IP67-rated seal.

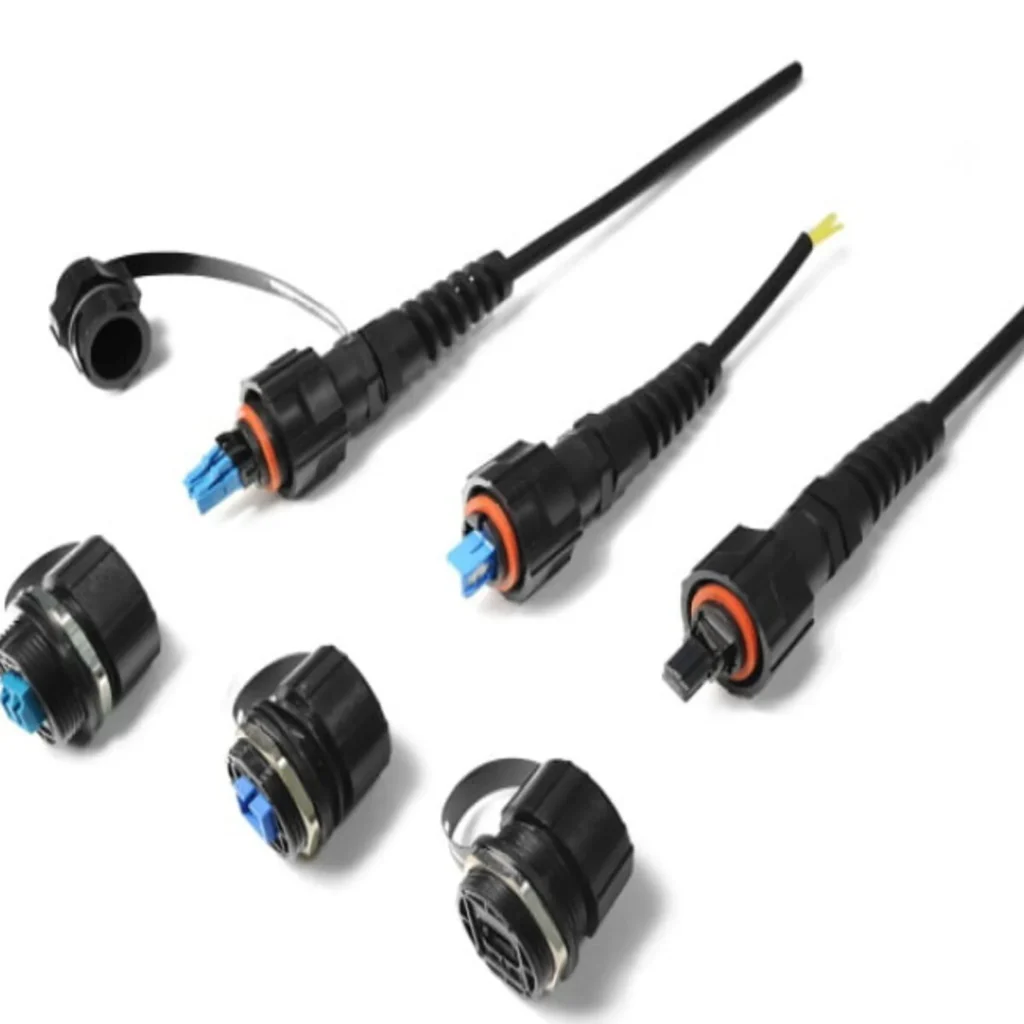

2. NSN Fiber Optic Connector (The "Boot")
Compatibility: Nokia (formerly Nokia Siemens Networks).
The NSN connector is easily recognized by its corrugated, flexible rubber boot (often black and square-ish).
- Key Feature: Designed for a 90-degree installation angle flexibility and tool-less installation. Inside, it typically holds an LC duplex connector, but can be customized for RJ45 or MPO.
- Application: Specifically designed for the optical ports on Nokia base station hardware.
3. ODVA Fiber Optic Connector (The Industrial Standard)
Compatibility: Industrial Automation, Smart Grid, General FTTA.
ODVA refers to the Open DeviceNet Vendors Association standard. This is a heavy-duty interface designed for the harshest industrial environments.
- Key Feature: It uses a bayonet (quarter-turn) locking mechanism or threaded lock for an extremely secure fit that withstands high vibration.
- Application: Beyond telecom, this is the go-to connector for industrial automation, oil & gas, and broadcast (OB vans).
4. H-Connector / OPT (OptiTap Compatible)
Compatibility: FTTH Drop, 5G Small Cell.
The OPT series (H-Connector) acts as a universal housing for standard indoor connectors (SC, DLC, MPO).
- Key Feature: The OPTH Floating Socket is a standout feature in this series. It allows for "float" (slight movement) to accommodate misalignment during mating, which is crucial in blind-mating scenarios or high-vibration environments.
- Sealing: Uses screw-threads and rubber washers for IP67/IP68 protection.
5. IDC Fiber Optic Connector (Rugged Outdoor)
Compatibility: Outdoor Sensing, Electric Power, FTTA.
Unlike standard patch cords, the IDC outdoor connector series features a robust metal screw thread design.
- Key Feature: It connects via a female/male thread mechanism without needing a separate adapter unit in the middle, reducing signal loss points. Available in 2-core, 4-core, and MT multi-core configurations.
6. Rosenberger Compatible (RFE)
Compatibility: High-density / European Telecom Standards.
Many projects specify "Rosenberger style" connectors.
- RFE Series: Known for the Fiber Extender series. These are advanced, high-density connectors used globally in telecom and industrial data.
- Our Solution: We provide high-quality compatible assemblies for RFE interfaces, ensuring perfect fitment at a fraction of the OEM cost.
Comparison Table: Choosing the Right Series
Confused by the options? Use this table to match the connector to your application.
| Connector Series | Locking Mechanism | Typical Internal Interface | IP Rating | Key Applications | Main Vendor Ref |
|---|---|---|---|---|---|
| PDLC | Push-pull / Bayonet | Duplex LC | IP67/68 | FTTA, Ericsson RRU | TE / Ericsson Style |
| NSN | Screw thread / Boot | Duplex LC | IP67 | Nokia Base Stations | Nokia / TE |
| ODVA | Bayonet (Quarter-turn) | LC, SC, MPO | IP68 | Industrial, Smart Grid | ODVA Standard |
| IDC | Metal Screw Thread | SC, LC, MPO | IP67/68 | Power, Sensing | Jonhon / Generic |
| H-Conn (OPT) | Screw Thread | SC/APC | IP68 | FTTH, Small Cell | Corning OptiTap |
| RFE | Circular Screw | Duplex LC | IP67 | Telecom Maintenance | Rosenberger |
| FullAXS | Bayonet | Duplex LC | IP67/68 | FTTA (Next Gen) | TE / Rosenberger |
Frequently Asked Questions (FAQ)
Q: What exactly is an "Outdoor Waterproof Fiber Optic Connector"?
A: It is a ruggedized assembly that seals standard delicate fiber (like LC or SC) inside a hardened shell. It protects the fiber link from moisture (rain/humidity), dust, dirt, and corrosion in harsh environments like cell towers or mines.
Q: Can I use these for both 4G and 5G networks?
A: Absolutely. These connectors are "pipe" agnostic. Whether you are running 10G for 4G LTE or 25G/100G for 5G, the connector simply protects the physical link. We support Single Mode (SM) and Multi-Mode (MM) for all these types.
Q: What is the difference between IP67 and IP68?
A: IP67 means the connector can withstand temporary immersion in water (up to 1 meter for 30 mins). IP68 indicates continuous immersion under pressure. For most cell towers (FTTA), IP67 is sufficient, but for underground or flooding-prone industrial areas, IP68 is recommended.
Q: Do you offer Hybrid cables (Power + Fiber)?
A: Yes. Many modern RRUs require both power and data. We can manufacture Hybrid Fiber-Power cable assemblies that carry both copper power conductors and optical fibers in a single jacket.
Need a Complete Base Station Wiring Design?
It’s not just about the connector; it’s about the whole link. From MST waterproof cable assemblies to custom OPT waterproof jumpers, ABPTEL can design the complete wiring solution for your specific equipment.
Contact Our Engineering Team to discuss your FTTA or Industrial project today.
Disclaimer: All trademarks (Rosenberger, Nokia, Ericsson, Corning, etc.) mentioned are the property of their respective owners and are used here for compatibility description purposes only.
RFQ Checklist (FTTA / CPRI Waterproof Patch Cords)
- Interface series (must match): ODVA / FullAXS / NSN / IDC / PDLC / OPT / Rosenberger / JONHON J599
- End A ↔ End B: (e.g., ODVA↔ODVA, PDLC↔LC fanout, IDC↔LC fanout)
- Fiber count: 1C / 2C / 4C / MT (12/24F etc.)
- Fiber type: OS2 (default) / OM3 / OM4 / OM5
- Fiber standard: G657A1 (default) / G652D
- LC polishing: LC/UPC (default) / LC/APC
- Fanout details (if any): number of LC, fanout length, tubing, labeling
- Cable OD: 4.8 / 5.0 / 6.0 / 7.0 mm (or specified)
- Jacket: LSZH / TPU / PE (UV-resistant if outdoor)
- Armoring (optional): none / corrugated steel / braid / Kevlar strength member
- IP target: IP67 / IP68 (state requirement + test condition if needed)
- Operating temperature: standard / wide-temp (specify range)
- Pulling / installation: pulling grip needed? max pulling load? bend radius requirement?
- Length: ___ m (tolerance) + breakout lengths (if any)
- Accessories: dust cap, tether, bulkhead adapter/socket, mounting nut, reel stand, etc.
- Testing & documents: IL/RL report, end-face inspection, IP test statement, RoHS/REACH, CO/COC
- Packaging: individual bag, label format, carton qty, pallet requirement
- Samples: sample qty + lead time + approval process
