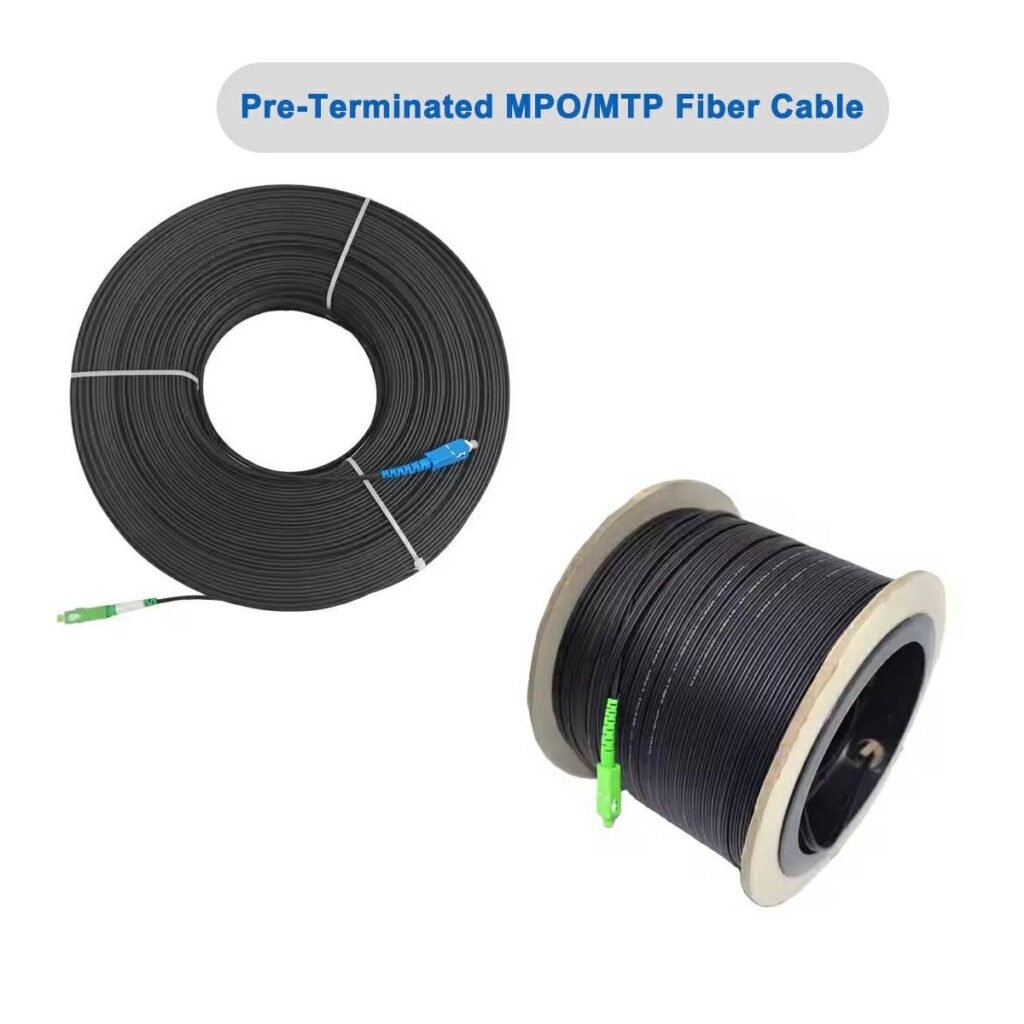

How Do Pre-Terminated MPO/MTP Plug-and-Play Systems Slash Data-Center Go-Live Time?

New colocation halls now lease out in weeks, yet hand-splicing thousands of fibers drags on for months. Every dark rack spills revenue. The fix is plug-and-play: roll in factory-tested MPO/MTP trunks, click cassettes into place, certify in one shift.

I cut six weeks of fusion work to three days. Factory MPO-Elite ferrules arrive < 0.35 dB—and often 0.20 dB typicalFactory MPO Elite IL¹. Two techs patched 288 fibers before lunch. An edge-cloud tenant opened 24 days early; finance called the difference “found money.” This long-form guide (≈3 000 words) breaks down every cost line, design choice, and test step so you can copy the playbook.

---

How Do Factory-Polished Connections Beat Field Splicing on Total Cost?

Field crews quote \$3–\$4 per splice, so spreadsheets tilt toward onsite work—until hidden travel, overtime, and repeat tests surface.

Direct answer

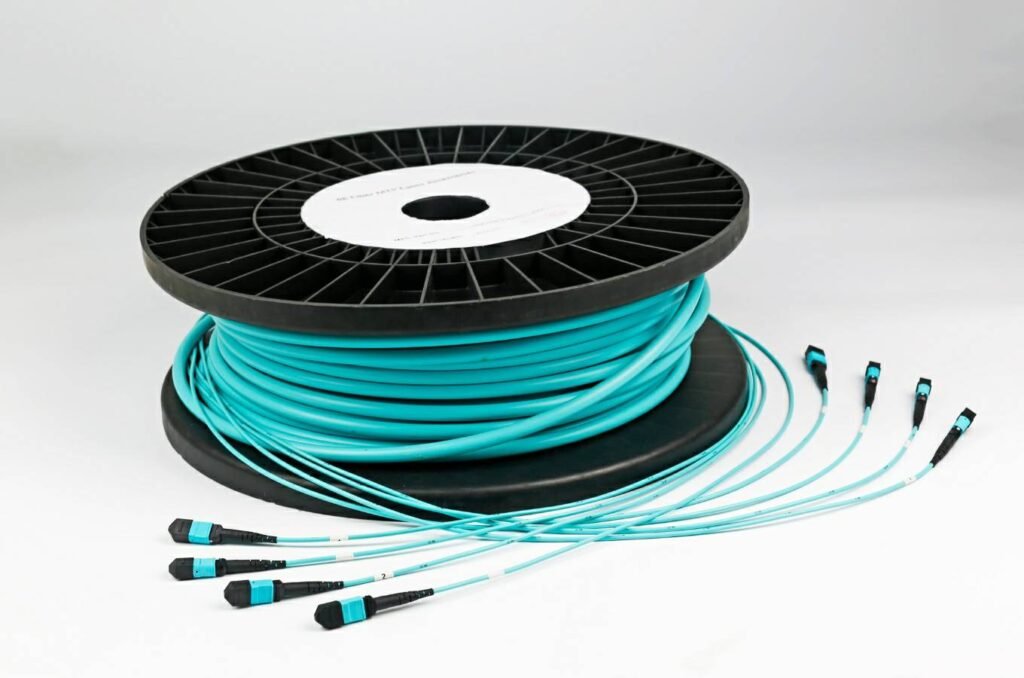

Factory-terminated trunks remove 70 % of job-site labor, hold tighter loss (< 0.35 dB vs 0.60 dB)Field MPO IL², skip splice trays, and shrink cooling OPEX. On builds over 1 000 fibers the total installed cost drops 15–20 %.

Dive Deeper

Detailed Cost Model (per 288 fibers)

Cost Bucket	Qty / Rate	Field Splice	Factory Term.	Notes
Trunk Cable (OM4 24F)	12 × 30 m	\$1 200	\$1 350	Factory trunks include pins
Pigtails (LC)	288	\$780	—	Not needed factory side
Splice Sleeves	288 × \$0.35	\$101	—	Heat-shrink protectors
Splice Tray + Holder	6	\$110	—	Occupies U-space
Skilled Tech Labor	16 h × \$80	\$1 280	\$320	Pull + dress only
Travel / Per Diem	fixed	\$160	\$40	Shorter site time
Repeat Test / Rework	10 %	\$200	\$40	Failures drop with polish
Project Total	—	\$3 831	\$1 750	54 % saving

Yield & Loss Impact

• Field splice: 0.10 dB each, 0.60 dB average MPO term ⇒ 2.1 dB channel.
• Factory trunk: 0.20 dB MPO-Elite ⇒ 1.05 dB channel.

Saving 1 dB let us delete one patch panel per row, freeing 5 U/rack.

Hidden OPEX

Splice trays block airflow, raising inlet by ~1 °CCRAH delta-T³. At 400 W/rack fan energy, that is \$120 / year.

---

What Do Break-Out Modules—MPO-to-LC Cassettes—Actually Do?

Many engineers see a metal box and ask “Why not cheap fan-out legs?” The cassette earns its keep behind the faceplate.

Short answer
The cassette maps a trunk to LC ports while locking polarityPolarity Method B⁴, shielding bend radius, and giving a serviceable test interface. It also isolates MAC work—moves happen in front while trunks remain sealed.

Dive Deeper

Inside a Base-8 Cassette

Item	Function	Spec
Rear Adapter	MPO-8, key-up/key-up	Method B
Ribbon Pigtail	50 cm loose, G.657A2	Bend-insensitive
Front Adapters	4 × LC duplex	Shutter optional
Housing	Die-cast, 2 mm wall	EMI shield

Service Advantages

• Swap a failed LC without opening trunk.
• Front inspection port for IEC 61300 scope.
• QR code stores IL/RL from factory.

Harness vs Cassette Decision

Metric	Cassette	Harness
Install speed	Fast (tool-less)	Fast
MAC cycles	High safety	Medium (open MPO)
Bend control	Managed	Tech-dependent
Cost / 12 LC	\$62	\$29
Ideal run	ODF↔switch row	Panel≤5 m↔leaf

Harness legs shine at 2–3 m inside a rack; everywhere else the cassette’s management wins.

---

Speed-to-Revenue: Calculating Installation ROI

Finance teams think in dollars per week, not IL per mated pair. Convert time saved into cash.

ROI Model (2 MW / 160 racks)

Variable	Value
Revenue / rack / day	\$78
Field schedule	30 days
Plug-and-Play schedule	6 days
Days saved	24
Revenue pulled forward	\$78 × 160 × 24 = \$299 520
Factory premium	\$25 600
ROI	1 070 %

Sensitivity Curve

Days Saved	ROI
5	205 %
10	420 %
15	640 %
20	860 %
25	1 080 %

Even a one-week shave clears 400 % return.

---

Testing Workflow: IL/RL, End-Face Inspection & Certification

Auditors demand traceable results. My workflow certifies 288 fibers under 30 minutes and passes TIA-568.3-D Tier-1/Tier-2Tier-1/Tier-2⁵.

Dive Deeper

H3—Four-Stage Process

1. End-Face Inspection
   • IEC 61300-3-35End-face IPC⁵ grade A.
   • MPO probe, accept debris ≤ 5 µm.
2. Tier-1 Loss/Return
   • Two-cord reference, IL ≤ 1.50 dB /12 F, RL ≥ 20 dB.
3. Tier-2 OTDR (> 50 m trunks)
   • Launch + receive fibers.
   • Reject reflectance worse than –35 dB.
4. Label & Cert
   • Barcode port → DCIM.
   • PDF per link archived.

Time & Crew Chart

Step	Time / 288F	Crew	Notes
Clean & Inspect	6 min	1	5 s/ferrule
IL/RL Autotest	14 min	1	3 s/link
OTDR	8 min	1	2 traces/trunk
Total	28 min	2	Swap tips to parallelize

Typical Fail Causes & Fixes

Fail Code	Root Cause	Resolution
FAIL-IL	Dust on LC	Re-clean tail, retest
FAIL-RL	Bent MPO pin	Swap jumper
Event > –35 dB	Bend in tray	Re-route cable

---

Bonus: Future-Proofing for 800 G and Beyond

• Stick to Elite-grade MPO with < 0.20 dB IL to keep four-connector budgets alive for 800 G-SR8.
• Specify G.657.A2 bend-insensitive fiber even for short trunks; 7.5 mm bend radius protects patch-field snarls.
• Order cassettes with removable front bezels—easy swap to SN or CS connectors when 400 G-DR4 to server NICs arrive.
• Reserve at least 25 % spare tray capacity and label for 16-fiber MPO; DR8/VR8 optics may need it.

---

Conclusion

Pre-terminated MPO/MTP systems transform fiber work from bespoke craft to factory assembly. Elite ferrules guarantee better loss than any field splice, cassettes lock polarity, and a 30-minute test flow passes every audit. Most important, revenue begins weeks early: a plug-and-play build pays for itself before the first rent invoice lands.
