Why are MTP®/MPO Trunk Cables the Backbone of Modern Data Centers?
Most engineers today face the same problem: data centers are growing fast, but cabling systems are still messy, complex, and hard to scale. The frustration builds when downtime and delays cost money. The good news is, there is a smarter way to manage this.
MTP®/MPO trunk cables are essential in modern data centers because they enable high-density, scalable, and low-loss connections, reducing installation time and ensuring reliable 40G/100G/400G network performance.
When I worked with my first hyperscale client, I remember seeing racks filled with hundreds of patch cords. The team was under pressure to complete a migration to 100G in record time. Once we switched to MTP/MPO trunk solutions, the clutter was gone, installation was faster, and the project was back on track. That moment convinced me that trunks are not optional anymore—they are critical.
How do MTP®/MPO trunk cables simplify structured cabling in data centers?
When data centers grow, the biggest challenge is not equipment, but the cable jungle behind the racks. This makes troubleshooting slow and upgrades expensive. MTP®/MPO trunk cables solve this issue.
MTP®/MPO trunk cables simplify structured cabling by consolidating multiple fibers into a single high-density connector, minimizing clutter, saving rack space, and accelerating installation.
Key Benefits in Cabling Design
| Feature | Traditional Patch Cords | MTP®/MPO Trunks |
|---|---|---|
| Space | High clutter | Compact, optimized |
| Time | Long installation | 75% faster installation |
| Density | Limited scalability | Supports 12F, 24F, 48F+ |
| Errors | High risk | Pre-terminated, tested |
Why Structured Cabling Matters
- It reduces downtime caused by human error.
- It makes upgrades easier because the backbone is pre-planned.
- It keeps racks and panels neat, which improves airflow and cooling.
Dive Deeper: Lessons From Real Projects
In one US project, a client was expanding into a 200-rack facility. Using traditional LC patch cords would have meant thousands of connections, each requiring manual cleaning, testing, and labeling. Instead, we used 48F MTP trunks pre-tested in our lab. The installation time dropped by 60%. The client told me this saved weeks of labor and thousands in costs.
External resource: Structured Cabling Best Practices
Why are MTP®/MPO trunk cables essential for high-speed migration (40G/100G/400G)?
Most data centers today are not standing still. They migrate from 10G to 40G, then 100G, and now 400G or even 800G in some regions. Cabling is always the roadblock. MTP®/MPO trunks make the transition smooth.
MTP®/MPO trunks enable smooth migration to 40G/100G/400G networks by supporting parallel optics and backward compatibility, making them the industry standard for scalable bandwidth.
Migration Path Overview
| Speed | Connector Type | Fiber Count | Typical Use Case |
|---|---|---|---|
| 40G | MPO-12 | 8 fibers | Legacy upgrade |
| 100G | MPO-24 | 20 fibers | Data center core |
| 400G | MPO-24/48 | 32+ fibers | Hyperscale DC |
| 800G | MPO-48/MT ferrule | 64+ fibers | AI/HPC workloads |
Why Migration Matters
- Scalability: No need to redesign cabling for every new upgrade.
- Flexibility: Breakout assemblies (e.g., 40G QSFP+ to 4x10G) make transitions smooth.
- Performance: Low insertion loss ensures links meet IEEE standards.
Dive Deeper: The Role of Parallel Optics
Parallel optics allow multiple data streams across multi-fiber connectors. For example, a 100G link can use 8 or 20 fibers with MPO trunks. This ensures data moves faster with fewer errors.
- In Europe, one client needed a 400G backbone for AI workloads. Using traditional single-fiber connectors was impossible. With MPO-48 trunks, the deployment was completed within weeks instead of months.
External resource: IEEE 802.3 Standards Overview

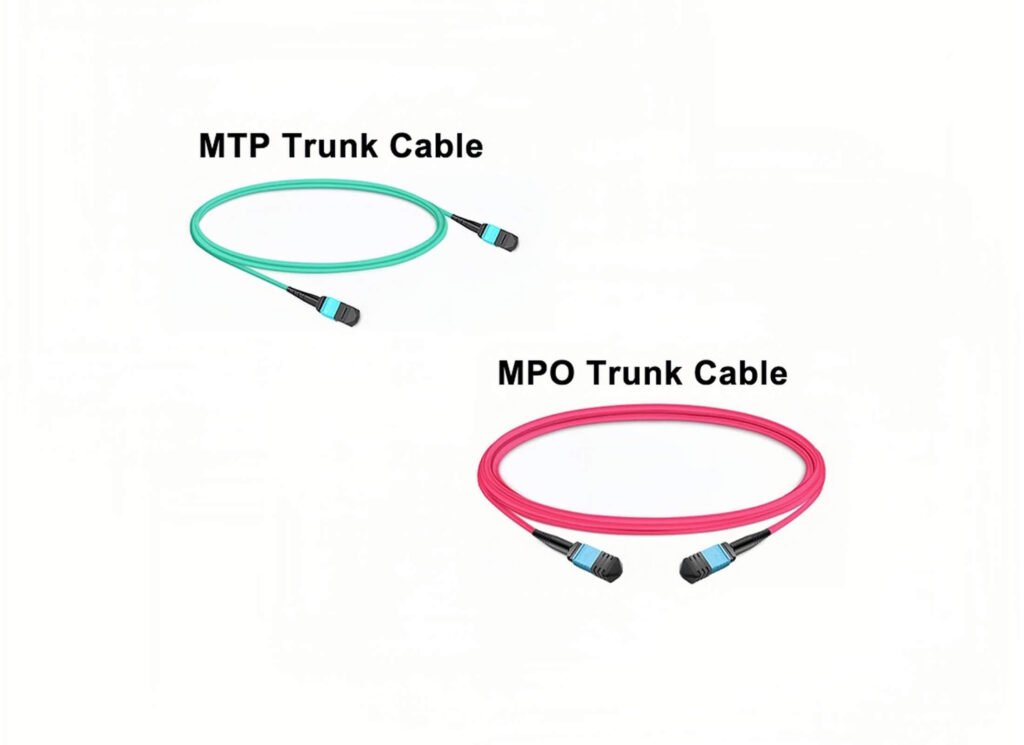

What are the differences between MTP® and MPO connectors?
I often get this question from procurement managers: “Is MTP different from MPO, or are they the same?” The answer is simple but important.
MPO is a multi-fiber connector standard, while MTP® is a higher-performance version designed by US Conec with enhanced precision, lower insertion loss, and better durability.
MPO vs MTP® Comparison
| Aspect | MPO Connector | MTP® Connector |
|---|---|---|
| Standard | IEC 61754-7 | Enhanced MPO |
| Performance | Good | Superior |
| Loss Values | 0.35 dB+ | 0.15 dB typical |
| Durability | Standard | High polish tolerance |
| Polarity Options | A/B/C | A/B/C + Keying enhancements |
Why This Difference Matters
- In projects where every dB counts, MTP® is the safe choice.
- For hyperscale and financial data centers, the higher cost is justified.
- For small enterprises, MPO may still be acceptable.
Dive Deeper: Understanding Polarity
Polarity is about ensuring transmit (Tx) fibers align with receive (Rx) fibers.
- Type A: Straight-through.
- Type B: Crossed.
- Type C: Pairwise flipped.
With MTP® connectors, the design ensures better repeatability during plug/unplug cycles. This reduces wear and improves performance over time.
External resource: US Conec MTP® Technology
When should I choose MTP®/MPO trunk cables for my project?
Every project is different. Some need cost savings, others need speed, and many need scalability. Knowing when to use trunks is key.
You should choose MTP®/MPO trunks when you need high-density, scalable, and fast-deployment cabling for data centers, enterprise networks, or telecom operators.
Typical Applications
| Scenario | Fiber Count Needed | Recommended Cable |
|---|---|---|
| Enterprise DC | 12F/24F | MPO trunk cable |
| Hyperscale DC | 48F+ | MTP trunk cable |
| Telecom Core | Mixed | Custom OEM/ODM |
| AI Computing | 48F/64F | Ultra-low loss MTP |
My Client Experiences
- In Spain, a telecom integrator used our MTP trunks to support Telefónica’s expansion in South America. The OEM customization allowed them to meet bid requirements and secure multi-year contracts.
- In Brazil, an ISP needed fast deployment but faced budget pressure. We provided MPO trunks for their 10G upgrade. The balance between cost and quality made the project successful.
Dive Deeper: Why Customization Is Critical
At Abptel, most of our clients ask for customized lengths, connector types, or special jackets. ODM/OEM support ensures projects are not only technically correct but also commercially viable.
Call-to-action: Learn more at Abptel MTP®/MPO Trunks.
Conclusion
MTP®/MPO trunk cables are more than just a cabling option. They are the foundation of reliable, scalable, and high-performance networks. They solve clutter, cut down installation time, and enable smooth migration to 40G/100G/400G and beyond. For data centers, ISPs, and telecom operators, they are the clear choice.
At Abptel, we test every trunk in our lab to ensure low loss and high quality. With OEM/ODM services, we help clients meet unique project needs, from enterprise upgrades to hyperscale deployments. If you are planning your next project, MTP/MPO trunks are not just recommended—they are essential.
