What Is an Optical Time Domain Reflectometer (OTDR) and How Does It Work?

I meet two kinds of teams. The first group only trusts a light source and power meter because “that’s what we’ve always used.” The second group knows those Tier-1 tools certify end-to-end loss, but they switch to an OTDR when they need to see inside the link—every splice, connector, bend and break. This guide is my plain-English field manual. I’ll explain when to use an OTDR, how to read a trace, which specs actually matter for FTTH/FTTA/data-center work, and a step-by-step test workflow you can copy.

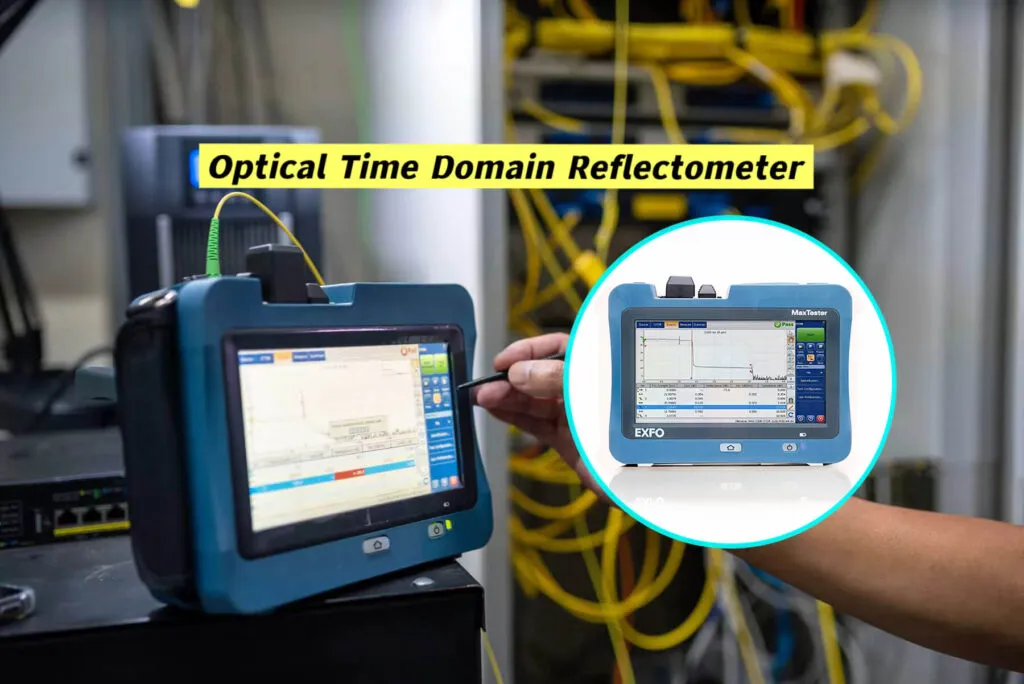

One-line definition: An OTDR sends short light pulses into a fiber and graphs the tiny light that returns from Rayleigh backscatter and Fresnel reflections. From that graph (the trace), we calculate distance, loss, and reflectance of every event along the link. You only need access to one end of the cable. ¹

When should I use an OTDR instead of a light source and power meter?

A light source + power meter (LSPM) or an Optical Loss Test Set (OLTS) is the Tier-1 method. It tells you the total insertion loss of the entire link and, with the right reference method, it’s the basis for standards compliance (TIA-568 / ISO/IEC). But Tier-1 can’t tell you where the loss occurs.

Use an OTDR (Tier-2) when you need:

• Troubleshooting and fault location. Find the exact distance to a break, crushed cable, macrobend in a tray, or a bad pigtail in a cassette—from one end of the link.
• Construction QA. Verify that every splice meets spec; audit subcontractor work; confirm slack-loop locations; capture an acceptance trace per segment.
• Documentation at scale. Store a fingerprint trace for each fiber so any future change can be compared.
• Reflectance/Return Loss data. LSPM has no reflectance view; OTDR shows high-reflectance events that cause Rx overload or OSNR issues.
• PON/FTTH handover. Validate splitter count/ratio and verify that loss per section meets design, especially when you don’t have access at both ends.
• Aerial/outside-plant & long-haul. Span miles with mid-span splices; Tier-1 tells you “it’s too high,” OTDR tells you which splice.

Quick chooser

Bottom line: If your question starts with “where” or “which joint/port,” you want an OTDR. Standards call this Tier-2 testing and position it as complementary to Tier-1, not a replacement. ²³

How does an OTDR trace reveal splices, connectors, bends, and faults?

The physics in one paragraph

When a short pulse travels down the fiber, two effects send light back to the instrument:

1. Rayleigh backscatter — microscopic index fluctuations in glass scatter a tiny fraction of light in all directions. A minuscule portion travels backward and is measured as a gently declining line on the trace.
2. Fresnel reflections — any sharp change in index (air gap, connector endface, cleave) sends a stronger reflection backwards, creating a spike on the trace.

By timing how long the light takes to return (with the fiber’s group index), the OTDR computes distance. By comparing power levels before and after an event, it computes insertion loss; by analyzing the spike height, it computes reflectance/return loss.

Reading the trace (visual grammar)

Below is the “mental legend” I teach new techs. No expensive figure is needed; you’ll recognize these shapes on any brand of OTDR:

• Straight, gently descending slope — normal attenuation of fiber (e.g., ~0.35 dB/km @1310 nm single-mode; ~0.20–0.25 dB/km @1550 nm typical).
• Upward spike with drop — reflective connector or open end; the drop after the spike is the insertion loss of that mated pair.
• Downward step without spike — fusion splice (non-reflective).
• Steep local slope (no sharp step) — macrobend or tight tray radius (loss increases with 1550/1625 nm more than 1310 nm).
• Dead-end big spike — open fiber end. Add a receive (tail) fiber to measure the loss of the final connection.
• Ghost (repeating weaker spikes at equal spacing) — multiple reflections bouncing; usually from high-reflectance connectors or too long pulse width.

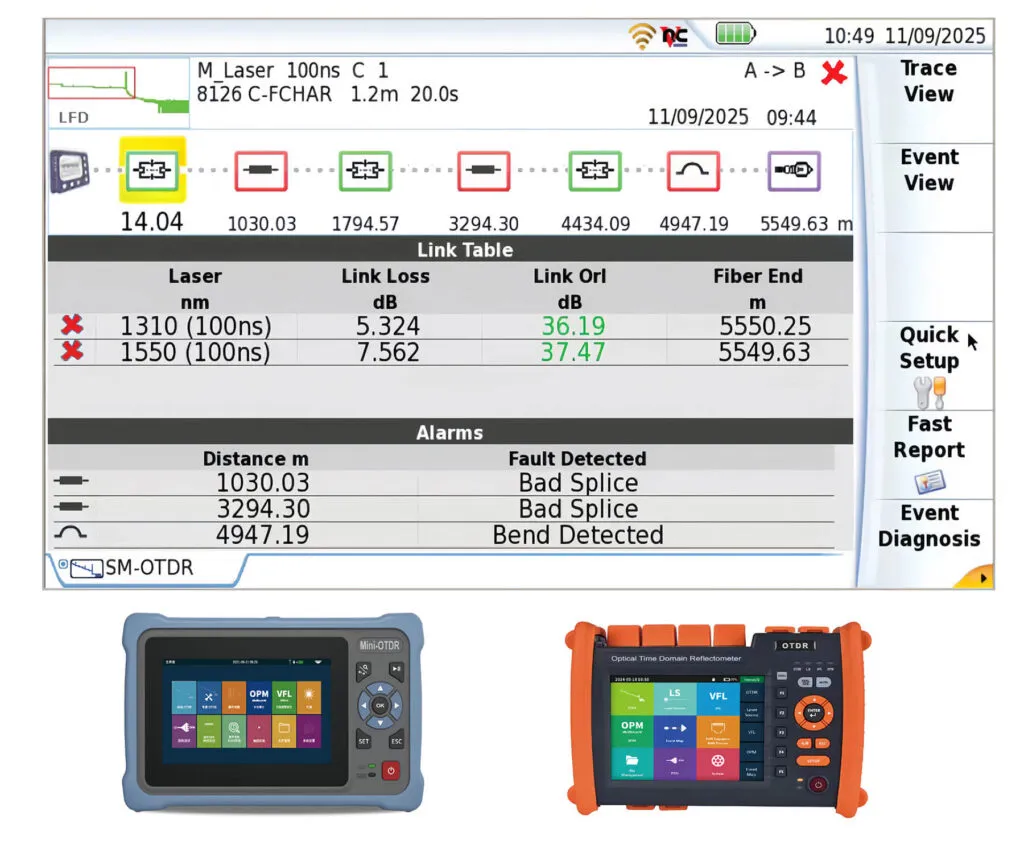

Event table

Every modern OTDR gives you an event table: distance, type (splice/connector/splitter), insertion loss, reflectance. It’s your friend for acceptance sheets and it should match your as-built map.

Why the same splice has different loss from each end (the “gainer” effect)

Backscatter level depends on the local fiber’s backscatter coefficient. If two joined fibers have slightly different backscatter, the OTDR may report negative or implausibly low loss from one side and higher loss from the other. The fix is bi-directional averaging: test from both ends and average the two values. ¹

Which OTDR specs matter most for FTTH, FTTA, and data-center testing?

Spec sheets can overwhelm. Focus on the small set that changes your day.

1) Wavelengths

• Multimode: 850/1300 nm for campus/enterprise links.
• Single-mode: 1310/1550 nm for construction and acceptance; 1625/1650 nm (often with an out-of-band filter) for in-service troubleshooting; 1490 nm appears in FTTH to match service wavelengths, but 1550 nm remains common for commissioning to avoid extra optics. ⁴⁵

Rule of thumb: Test at the same or shorter wavelength than the service. Many macrobends look worse at 1550/1625 nm than 1310, which helps you catch them before cutover.

2) Dynamic range (dB)

This dictates how far you can “see” (after averaging) and how much loss you can punch through (e.g., PON splitters). A 1×32 splitter adds ~15–17 dB; 1×64 adds ~19–20 dB. For FTTH, you’ll want a PON-optimized module with high dynamic range and short dead zones.

Typical max OTDR measurement ranges after averaging (ballpark; varies by brand):

You don’t need those distances in a data center; but for PON with splitters or long OSP, dynamic range is king. ⁶

3) Dead zones (m)

• Event dead zone (EDZ): minimum distance at which the OTDR can separate two adjacent reflective events.
• Attenuation dead zone (ADZ): distance after a reflective event where the instrument can measure loss accurately.

Short links with many connectors (data-centers, FTTA) demand ultra-short EDZ/ADZ. Look for ≤0.8–1.0 m EDZ and ≤3–5 m ADZ with the shortest pulse widths.

Launch & receive fibers are not optional. They move the first and last connections out of the dead zones so you can measure them. For short premises links, 50–150 m launch/receive cords are typical; OSP may use 500–1000 m. ⁷

4) Pulse width / sampling / averaging

• Short pulse → better resolution/shorter EDZ, but less reach; perfect for DC/FTTA.
• Longer pulse → more dynamic range, but smears nearby events; use for OSP or to see beyond splitters.
• Averaging time reduces noise; in practice 15–60 s per wavelength balances speed and clarity.

5) PON filters / in-service testing

If the network is live, you need wavelength filters to protect the OTDR and avoid disturbing services, commonly testing at 1625/1650 nm with an out-of-band filter. ⁶

6) Connector type (APC vs UPC)

High-reflectance UPC ports may saturate the front end and increase dead zones. For PON/OSP, APC is best-practice because it keeps reflectance < −55 dB. Always match your launch lead polish to the port.

Spec priorities by environment

How do I plan, run, and document OTDR tests step by step?

This is the exact checklist we use on build-outs. Print it, laminate it, and hand it to the crew lead.

Step 0 — Pre-job planning (30–60 min per route)

1. Scope & standards. Decide Tier-1 (LSPM) vs Tier-2 (OTDR) mix; list required wavelengths and polish types per standard (TIA-568.3-D / ISO/IEC 14763-3). ²³
2. Acceptance limits. Calculate budget: fiber attenuation + connector losses + splice losses + margins (e.g., 0.30 dB per mated pair LC, 0.10 dB per fusion splice, adjust to your spec).
3. Launch/receive leads. Pick lengths and connector types; verify they’re clean and within known loss.
4. File naming scheme. Decide rack/route/fiber naming before you start (example below).
5. Safety & work window. Confirm dark fiber or in-service filter; plan lock-out/tag-out.

Example file name
DC1_ROW3_TRK-A_TO_ROW7_SW1_Fiber-007_1310nm_A2B_Tier2_2025-11-12.sor

Step 1 — Instrument setup

• Wavelengths: choose per media (MM 850/1300; SM 1310/1550; add 1625/1650 for in-service).
• Index of refraction (IOR): set to the fiber’s datasheet value (e.g., 1.468 typical for G.652D) for accurate distances.
• Pulse width: start short (e.g., 5–20 ns for DC/FTTA) and lengthen only if noise hides the far end.
• Range: 1.5× expected length (e.g., 0.5 km for 150 m link).
• Averaging: 15–30 s per wavelength to stabilize the trace.
• Filter: enable live/PON filter if required.

Step 2 — Clean and reference

• Clean everything (both ends of launch and receive leads, bulkheads, and the DUT) with dry swabs/film; inspect with a scope to IEC 61300-3-35 zones.
• Warm-up the OTDR per vendor guidance; confirm the launch lead baseline (a straight slope before the first event).

Step 3 — Connect and shoot

1. OTDR → launch lead → DUT → receive lead → open.
2. Take a trace at your shortest pulse.
3. Check the event table: Does the first connector show? If not, your lead is too short or the pulse too long.
4. Save the file with your naming scheme and capture a PDF screenshot if your customer requires it.
5. Reverse direction at the far end (or switch to the return OTDR if you have two) and repeat all wavelengths.
6. Average bi-directional results for each splice/connector.

Step 4 — Interpret and fix

• High reflectance (> −35 dB): likely a dirty connector, cracked ferrule, or UPC where APC is expected. Clean and re-shoot.
• Unbalanced loss at 1310 vs 1550/1625: macrobend (worse at longer wavelengths); re-route or add proper radius guides.
• Gainer: loss near zero or negative from one side; average bi-directionally.
• Ghosts: reduce pulse width, add attenuation, or fix the high-reflectance source.

Step 5 — Document and hand over

• Export .SOR (Telcordia) files plus PDF reports.
• Include the event table with pass/fail versus your limits.
• Attach as-built map correlating distances to splice tray IDs and panels.
• Store traces in a central repo so field techs can compare future tests (“golden trace”).

Practical examples (what you’ll actually see)

1) Data center, SM trunk, 120 m, two cassettes

• 1310 nm with 5–10 ns pulse reveals first and last connectors clearly (thanks to launch/tail).
• Combined mated-pair loss must meet your low-loss spec (e.g., ≤0.35–0.50 dB per cassette).
• If last connector is not measurable, your tail is too short—extend to 50–100 m.

2) FTTH feeder with 1×32 splitter at 6.5 km, branch to 9.3 km

• Use 1550 nm first with a longer pulse for reach and dynamic range.
• Expect a big step (≈ 15–17 dB) at the splitter and a clean branch beyond.
• If you test in-service, use 1625/1650 nm with a PON filter; verify no saturation.

3) FTTA jumpers at the tower top

• Choose short pulse and APC leads.
• Bends near RRH show a local slope increase at 1550 nm; if 1310 looks fine but 1550 does not, you have a bend problem.

Common pitfalls and how to avoid them

• No launch/tail fiber → can’t see first/last connector. Always carry both.
• “It failed at 1310 but passed at 1550.” Check wavelength settings and IOR; look for a bad splice or mode-conditioning issue (MM).
• Testing through dirty adapters. You’re measuring dirt, not the network. Clean/inspect every time.
• Wrong polish type. APC vs UPC mistakes cause high reflectance and bad results; color-code your leads.
• Too-long pulse in short links. You’ll merge events and miss problems; start short and lengthen only as needed.
• Single-ended results for splices. Always bi-dir average splices to remove gainer bias. ¹

OTDR FAQ (the quick answers you need)

What is the difference between event and attenuation dead zones?
Event dead zone is how close the OTDR can separate two reflective events. Attenuation dead zone is how soon after a reflection it can measure loss accurately. Shorter is better for short links. ⁷

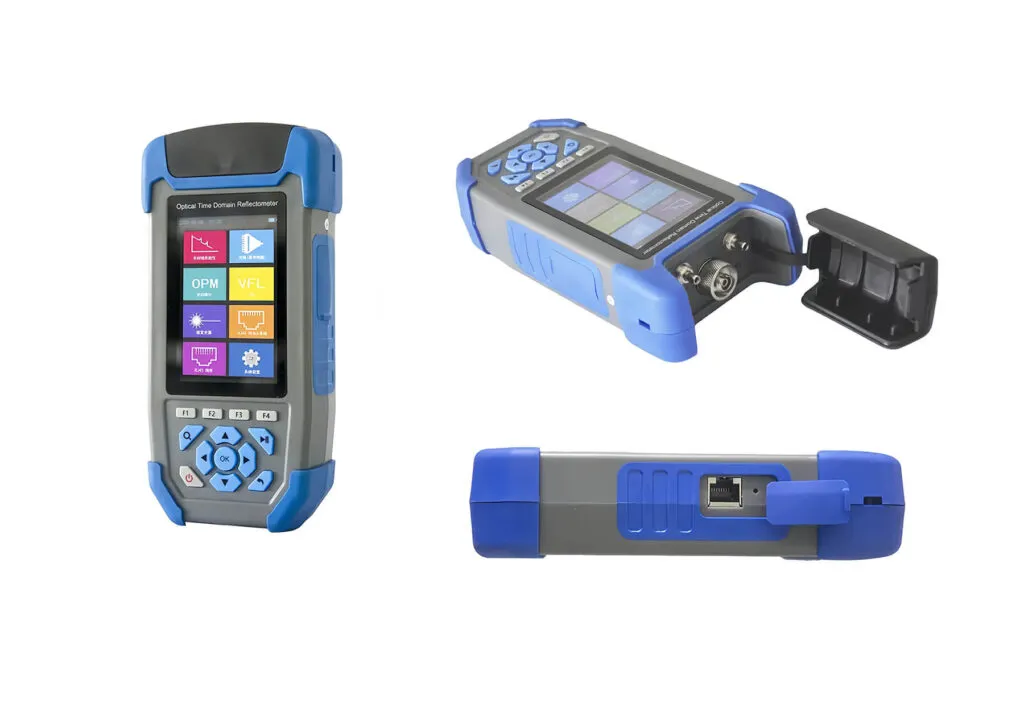

Can one OTDR test both single-mode and multimode?
Only if it has the correct laser modules and jumpers. Do not test MM with SM launch leads or vice versa; reference methods and encircled flux differ. ²

How accurate is the distance reading?
It depends on your index setting (IOR) and sampling. With correct IOR and good averaging, distance errors are usually < ±1–2 m over short premises links and < ±0.01% of distance on long spans.

What causes unstable traces?
Vibration, temperature drift, live services leaking into the test wavelength, dirty launch, and insufficient averaging.

Do I still need Tier-1 if I ran an OTDR?
Yes. Tier-1 is the standard compliance measurement for end-to-end loss and polarity; Tier-2 is the forensic X-ray that explains why. ²³

What’s a good baseline for low-loss connectors/cassettes?
Vendor specs vary; for low-loss MPO-LC cassettes I typically see ≤0.35–0.50 dB per cassette at 1310/1550 (single-mode) with good build and clean endfaces. Treat these as targets, not guarantees—verify per lot.

Acceptance limits (edit to your policy)

• Single-mode fiber attenuation: ≤0.35 dB/km @1310; ≤0.22 dB/km @1550
• Fusion splice loss: ≤0.10 dB (bi-dir average)
• Mated pair loss (LC): ≤0.30 dB standard; ≤0.20–0.25 dB low-loss
• Reflectance at mated connectors: ≤ −45 dB (UPC) / ≤ −55 dB (APC)
• PON splitter allowance: 1×32 ≈ 15–17 dB; 1×64 ≈ 19–20 dB

Technician job card (front)

1) Clean/inspect all endfaces (IEC 61300-3-35).
2) Install launch/tail leads; confirm baseline.
3) Shoot 1310 & 1550 (SM) or 850 & 1300 (MM).
4) Record event table; save .SOR and PDF.
5) Reverse direction; repeat.
6) Average splice loss bi-directionally; compare to limits.
7) Attach files to work order; mark as PASS/FAIL.

The big picture: OTDR is your X-ray

A bit error rate tester tells you symptoms (“packet loss”), but the OTDR reveals the cause and location. It’s not a replacement for Tier-1; it’s the partner that turns guesswork into measured facts. With a clean launch, the right pulse, and disciplined documentation, even small teams produce enterprise-grade handovers.

If you want a neutral BOM/test plan review, send me your link map. I’ll mark the right wavelengths, launch lengths, and acceptance limits and return a one-page checklist your crew can run without debates.

Helpful external resources

• Background and tutorials on OTDR physics, gainers, dead zones, and good testing practice. ¹
• Standards context for Tier-1/Tier-2 and premises testing. ²³
• Wavelength choices and fiber families for single-mode (G.652/G.657) and multimode (OM3/4/5). ⁴⁵
• PON/FTTH dynamic-range and in-service testing notes. ⁶
• Launch/receive fiber best practices and dead-zone mitigation. ⁷
• Hands-on OTDR application notes (reading traces, ghosts, macrobends). ⁸
