Description

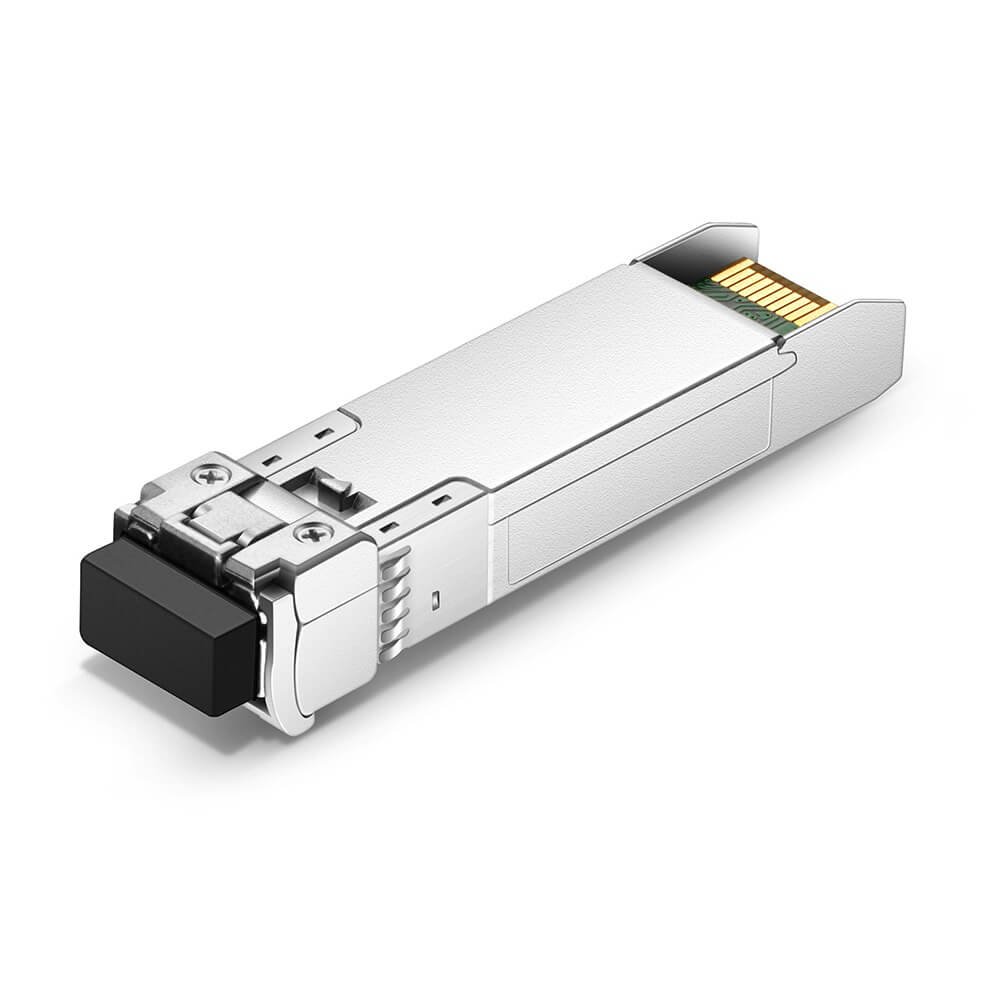

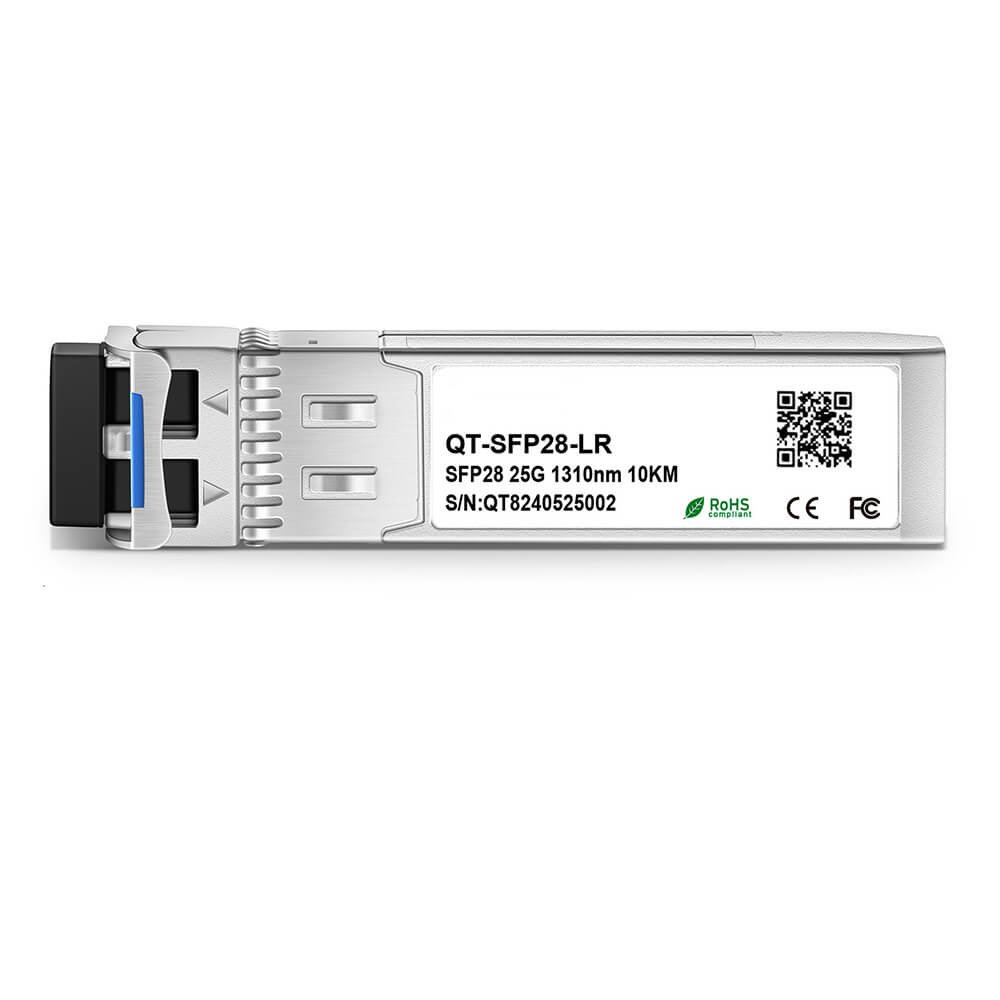

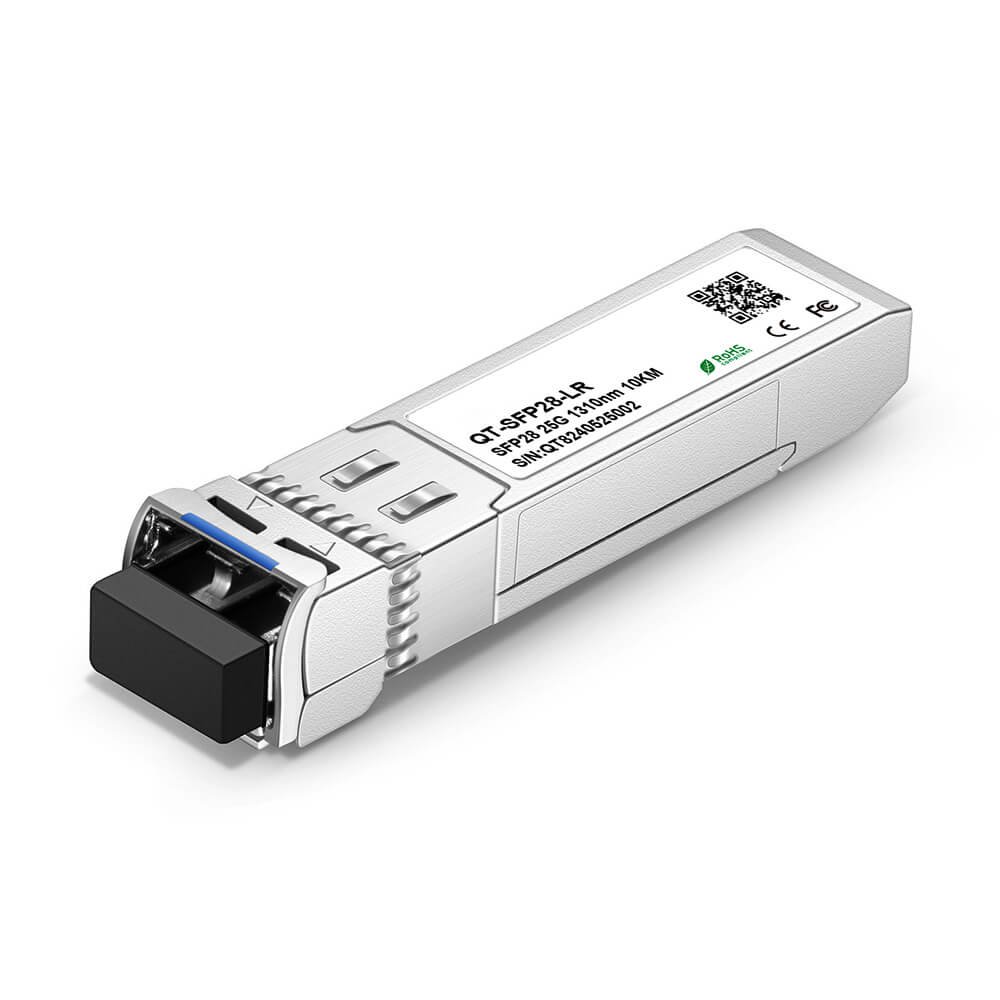

The ABPTEL SFP-25G-LR optical transceiver module is a high-performance solution designed for 25 Gigabit Ethernet (25GbE) applications. Operating at a 1310nm wavelength, this transceiver supports transmission distances up to 10 kilometers over OS2 single-mode fiber (SMF), making it ideal for data centers, enterprise networks, and telecom backbones.
Equipped with LC duplex connectors, the module ensures seamless integration with standard fiber infrastructures. Its SFP28 form factor enables a bandwidth of 25 Gbps, providing reliable and scalable connectivity for modern high-speed networks.
The ABPTEL SFP-25G-LR integrates DOM (Digital Optical Monitoring) to provide real-time insights into critical parameters such as optical power, temperature, and voltage. This feature enhances network performance and reduces downtime through proactive monitoring.
Compliant with SFP28 MSA and IEEE 802.3by standards, this module guarantees interoperability with Cisco and other major networking vendors. With low power consumption (<1W) and robust optical components, it is a cost-effective and energy-efficient choice for 25G Ethernet, metro networks, and long-distance interconnects.
Specifications
| Parameter | Specification |
|---|---|
| Model Name | SFP-25G-LR |
| Vendor Name | ABPTEL |
| Form Factor | SFP28 |
| Data Rate | 25 Gbps |
| Wavelength | 1310nm |
| Distance | 10km @ OS2 SMF |

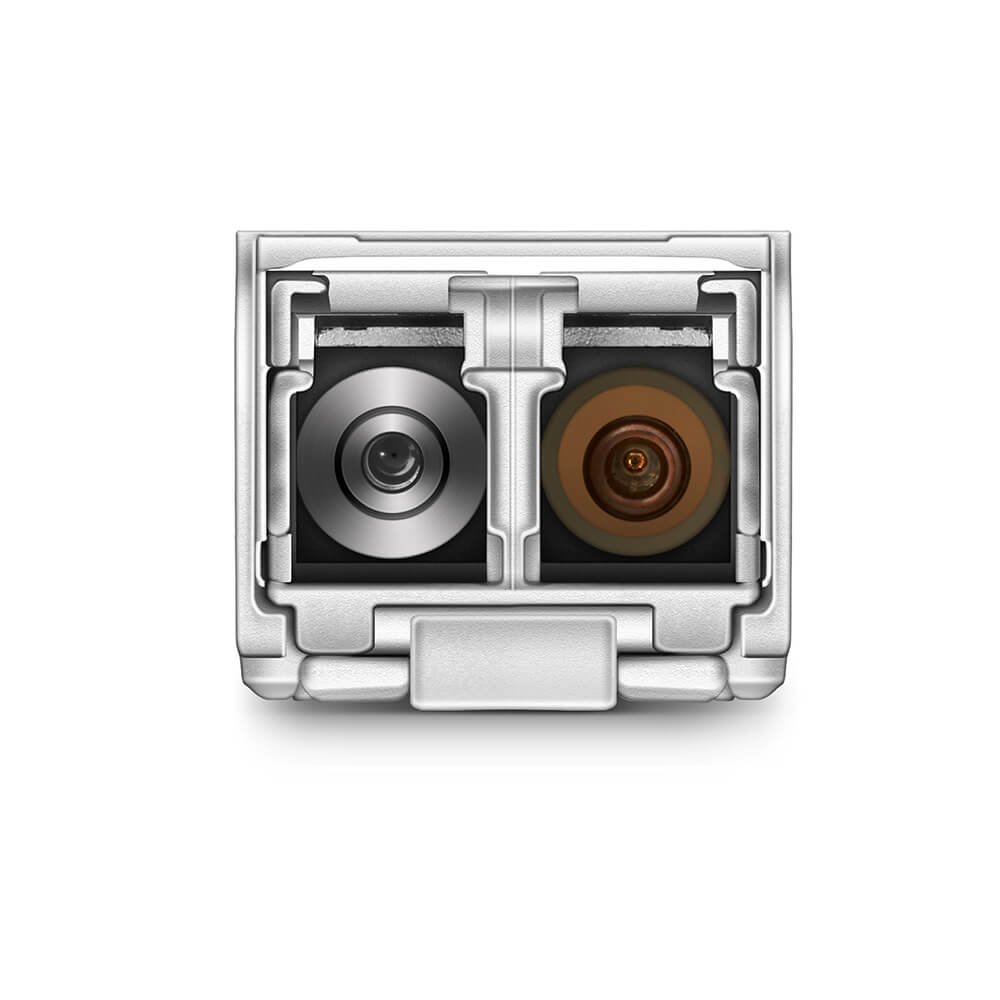

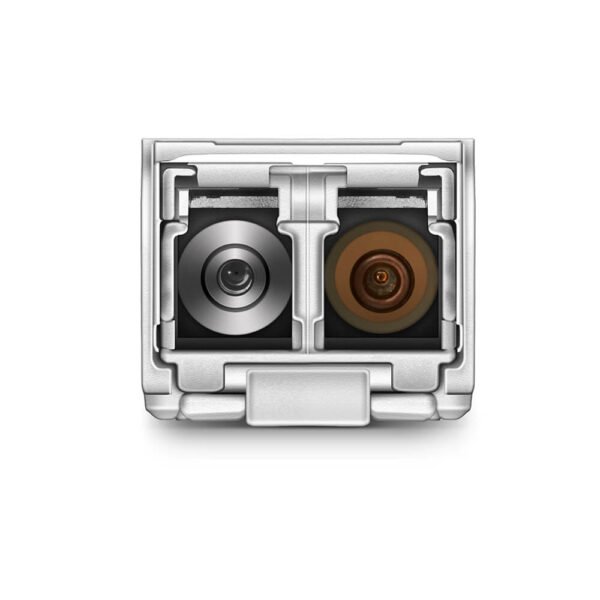

| Connector | LC Duplex |
| Cable Type | OS2 Single-Mode Fiber |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -7 ~ +2 dBm |
| Receiver Sensitivity | < -14 dBm |
| Power Consumption | < 1W |
| Modulation Format | NRZ |
| DDM/DOM | Supported |
| BER | 1E-12 |
| Standards Compliance | SFP28 MSA, IEEE 802.3by, RoHS |
Key Benefits
- Long-Distance Reach: Up to 10km over OS2 SMF, ideal for metro and enterprise applications.
- High Performance: 25Gbps bandwidth with stable optical performance.
- Cisco Compatible: Seamless interoperability with Cisco networking equipment.
- Real-Time Monitoring: DOM support for proactive diagnostics and reduced downtime.
- Low Power Consumption: <1W for energy efficiency in dense deployments.
- Versatile Applications: Perfect for data centers, telecom backbones, and 25G Ethernet upgrades.
