Description

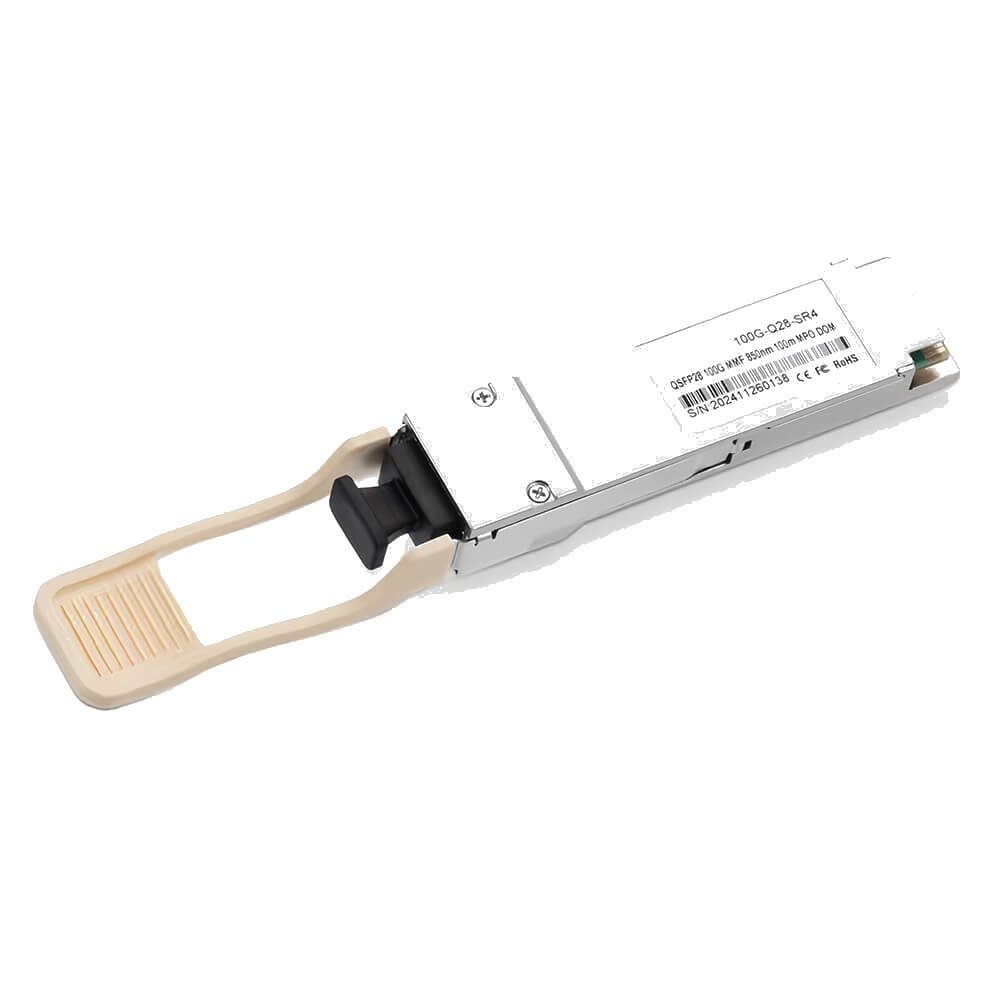

The ABPTEL QSFP-100G-SR4-S is a cost-effective, high-speed 100GBASE-SR4 QSFP28 transceiver optimized for short-reach 100 Gigabit Ethernet applications. Featuring four parallel full-duplex channels, each operating at 25.78125 Gbps, this module delivers an aggregate bandwidth of 103.125 Gbps.
Operating at a wavelength of 850nm, it provides transmission distances of up to 100 meters on OM4 multimode fiber and 70 meters on OM3 multimode fiber, using a 12-fiber MPO connector interface. With a VCSEL transmitter and PIN receiver, the module ensures low power consumption (≤2.5W), reliable performance, and efficient optical transmission.
The ABPTEL QSFP-100G-SR4-S is fully compliant with QSFP28 MSA, IEEE 802.3bm, SFF-8636, and RoHS standards, and supports digital diagnostics monitoring (DDM/DOM) for real-time performance tracking. It is Cisco compatible and tested for interoperability with major networking equipment vendors, making it a perfect choice for cloud computing, data centers, and enterprise networks requiring high-speed, high-density connectivity.
Specifications
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Max Data Rate | 103.125Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 70m @ OM3, 100m @ OM4 |
| Media | MMF |
| Connector | MPO-12 |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -8.4 ~ -2.4dBm |
| Receiver Sensitivity | < -10.3dBm |
| Electrical Modulation | 4×25.78Gb/s NRZ |
| Optical Modulation | 4×25.78Gb/s NRZ |
| Power Consumption | ≤2.5W |
| CBit Error Ratio (BER) | ≤1E-12 |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Operating Humidity | 5% ~ 85% |
| Host FEC | Supported |
| DDM/DOM | Supported |
| Protocols | QSFP28 MSA, IEEE 802.3bm, SFF-8636, SFF-8665, RoHS |
| Application Environments | 100G Ethernet, Data Centers, Cloud Computing |
| Brand | ABPTEL |
Key Benefits
- High-Speed Performance – 100GBASE-SR4 with 4×25.78Gbps parallel lanes.
- Short-Reach Connectivity – Supports 100m on OM4 and 70m on OM3 MMF.
- Energy Efficient – Low power consumption of ≤2.5W.
- High Compatibility – Cisco compatible and compliant with IEEE & MSA standards.
- Smart Monitoring – DDM/DOM support for real-time diagnostics.
- ABPTEL Quality – 100% tested for performance, reliability, and interoperability.
