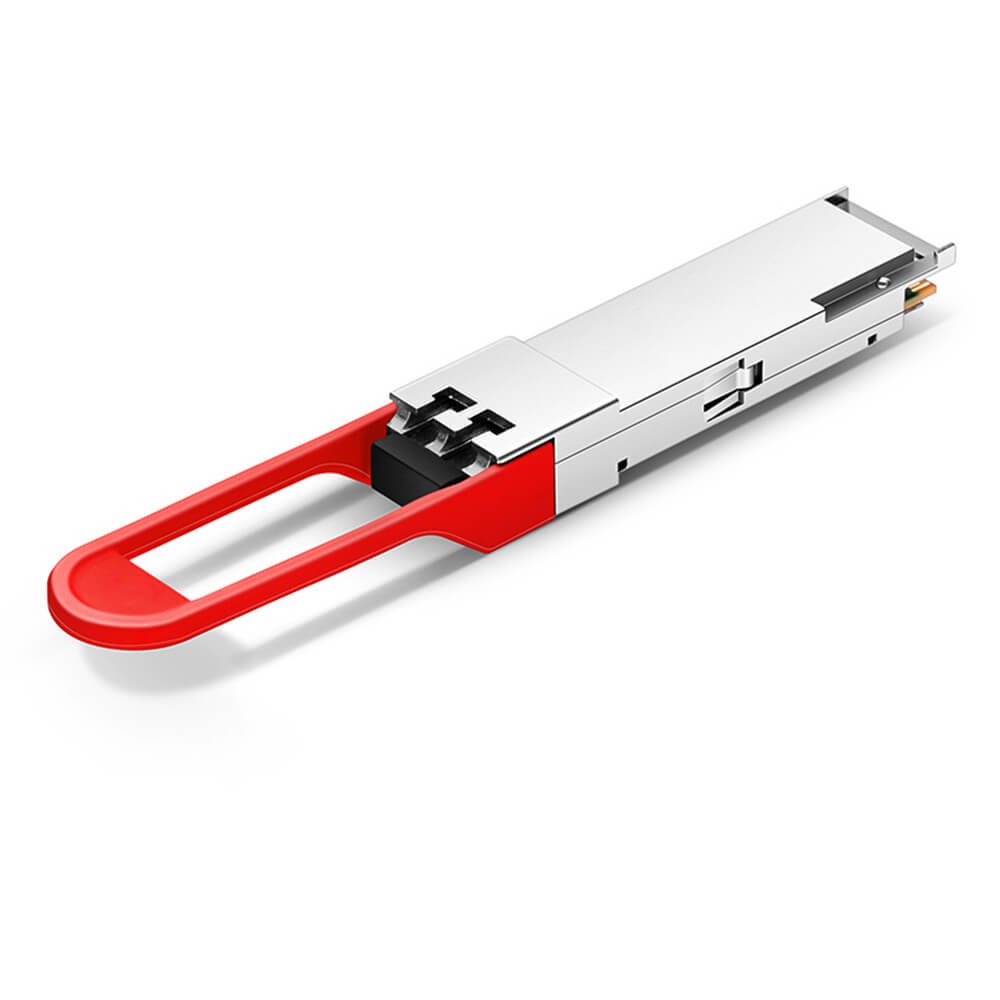

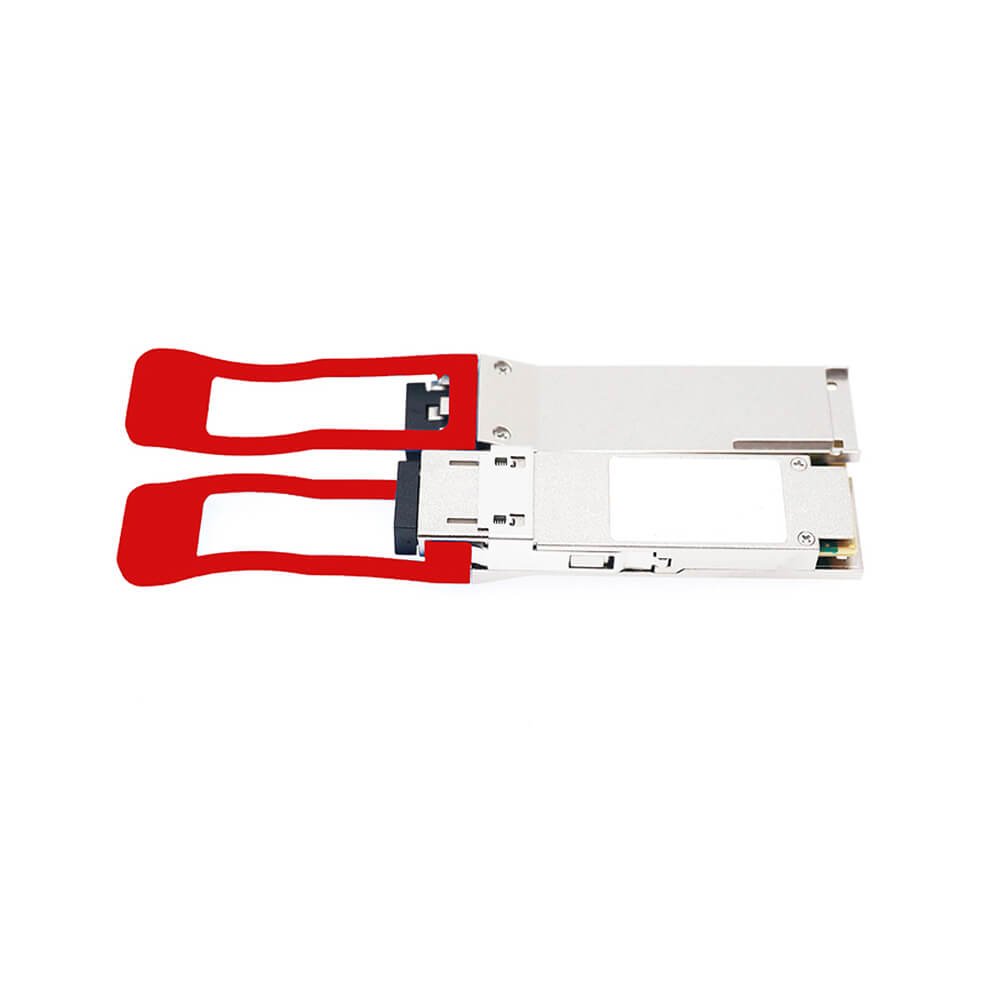

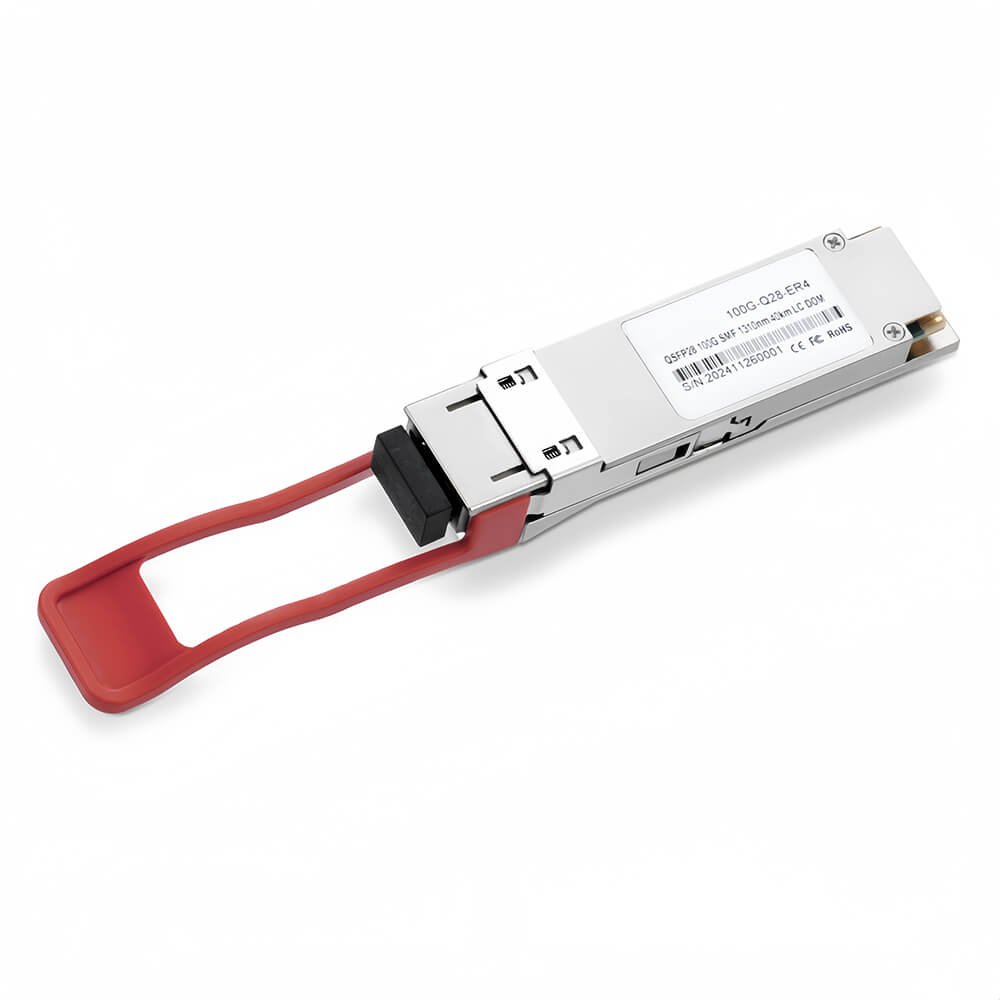

ABPTEL QSFP-100G-ER4 | 100GBASE-ER4 QSFP28 1310nm 40km LC SMF Optical Transceiver, Cisco Compatible

ABPTEL QSFP-100G-ER4 is a high-performance 100GBASE-ER4 QSFP28 transceiver module, operating at 1310nm over single-mode fiber (SMF). It supports transmission distances up to 40km with duplex LC connectors, fully Cisco compatible and ideal for data centers, metro networks, and telecom backbones.

Description

The ABPTEL QSFP-100G-ER4 optical transceiver module is engineered for 100Gb/s Ethernet applications, delivering reliable, long-distance transmission up to 40 kilometers over single-mode fiber (SMF).

Fully compliant with the 100GBASE-ER4 Lite standard, the module converts four lanes of 25Gb/s electrical signals into four LAN-WDM optical signals, which are then multiplexed into a single 100Gb/s optical channel. On the receiver side, it performs the reverse process, demultiplexing the 100Gb/s input into four 25Gb/s electrical channels.

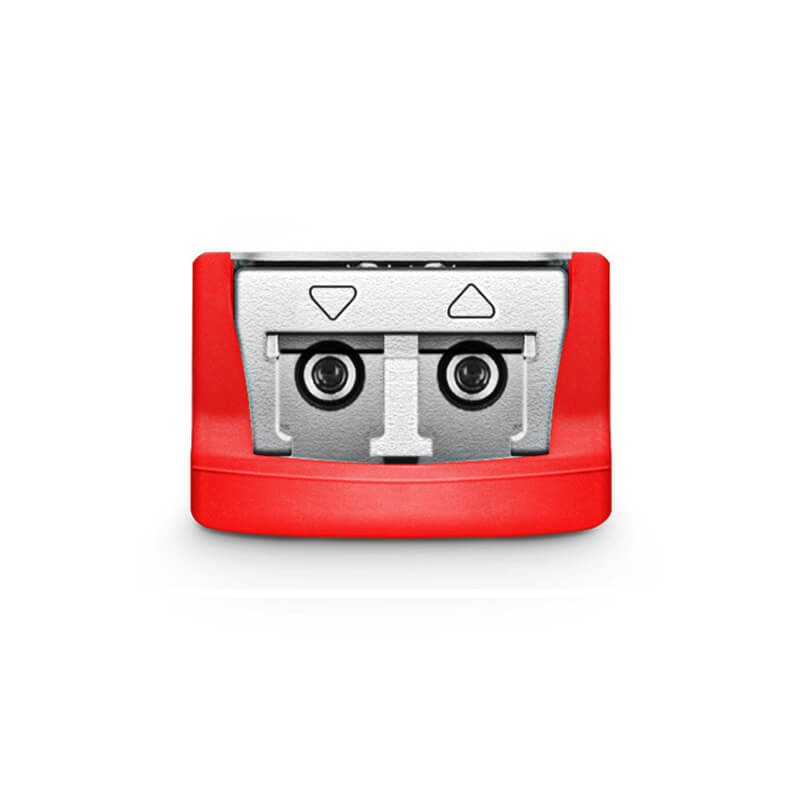

Operating at a 1310nm wavelength and equipped with duplex LC connectors, the QSFP28-100G-ER4 module offers exceptional optical performance and energy efficiency, with ≤4.5W power consumption. It integrates Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of parameters such as temperature, optical power, and voltage, enhancing network reliability.

This module is an ideal solution for metro networks, wide area networks (WANs), telecom backbones, and large-scale data centers, requiring long-haul high-speed interconnects.

Specifications

ParameterSpecification
Form FactorQSFP28
Max Data Rate103.125 Gbps
Wavelength1310nm
MediaSMF (Single-Mode Fiber)
ConnectorDuplex LC
Max Cable Distance40 km
Transmitter TypeLWDM EML
Receiver TypeAPD
TX Power-2 ~ 6.5 dBm
Receiver Sensitivity< -18 dBm
Electrical Modulation4x 25.78Gb/s NRZ
Optical Modulation4x 25.78Gb/s NRZ
Power Consumption≤ 4.5 W
CBit Error Ratio (BER)1.00E-12
Temperature Range0 ~ 70°C (32 ~ 158°F)
Operating Humidity5% ~ 85%
Host FECSupported
ProtocolsQSFP28 MSA, SFF-8636, SFF-8665, IEEE 802.3bm, RoHS
Application100G Ethernet, Metro Networks, WANs, Telecom Backbone

Key Benefits

  • Long Distance Reach: Supports 100G transmission up to 40km over SMF.
  • High Compatibility: Fully Cisco compatible, adheres to IEEE 802.3bm and QSFP28 MSA standards.
  • Superior Optics: LAN-WDM technology ensures stable long-haul transmission.
  • Energy Efficient: Low power consumption ≤ 4.5W for reduced operational costs.
  • Enhanced Reliability: Integrated DOM for real-time monitoring and troubleshooting.
  • Versatile Applications: Ideal for data centers, WAN, MAN, and telecom backbone networks.
