Description
🌐 Product Overview

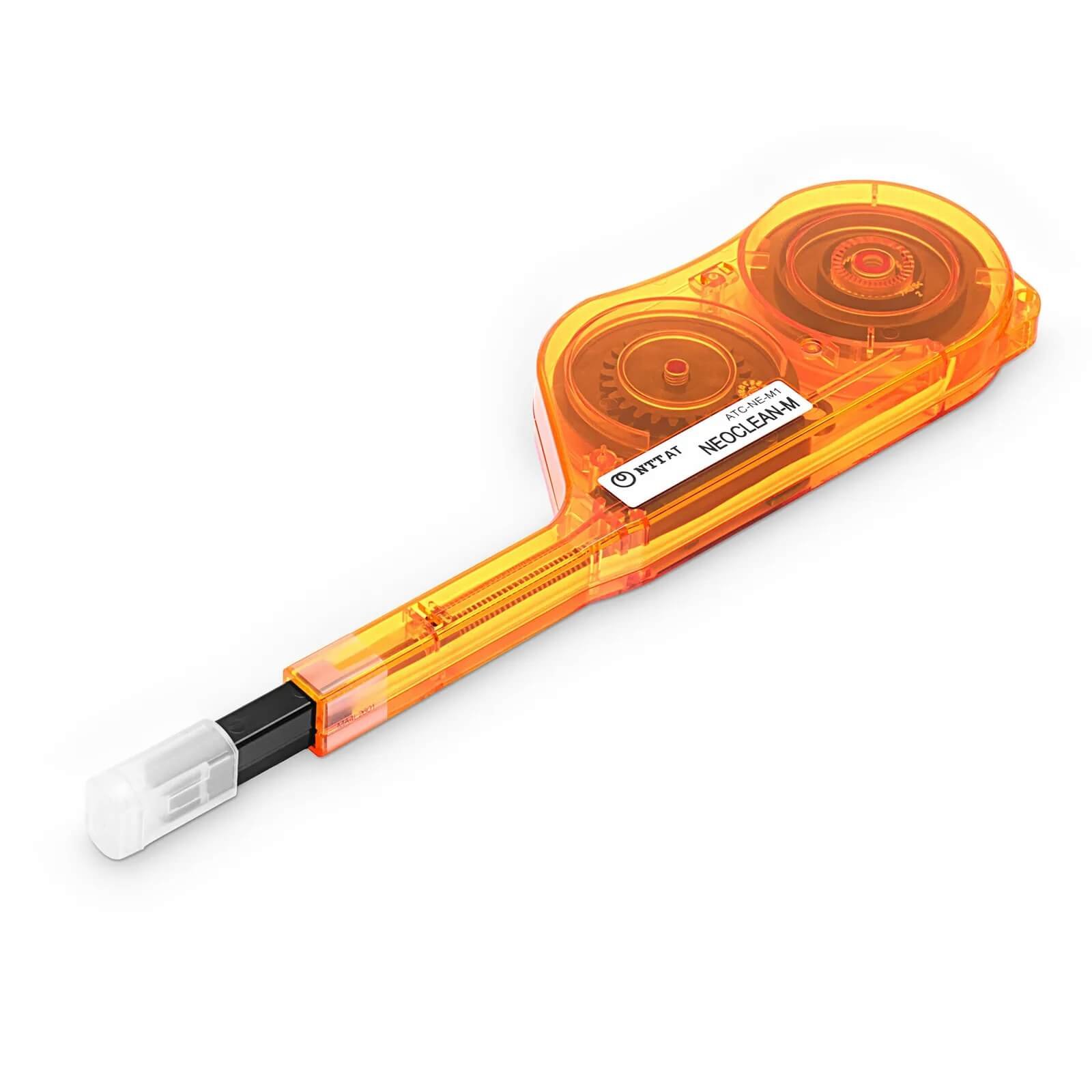

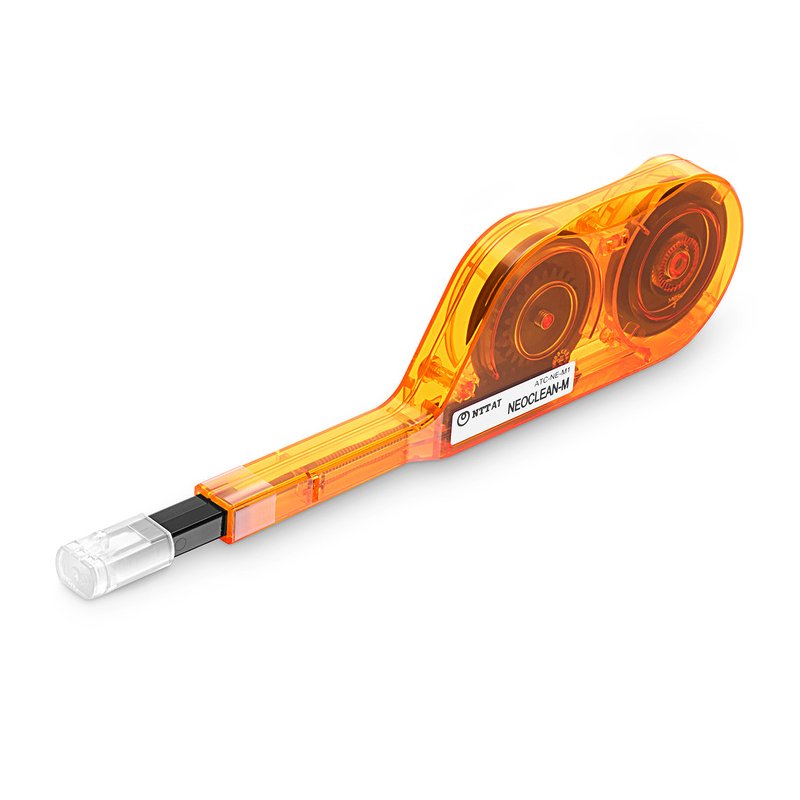

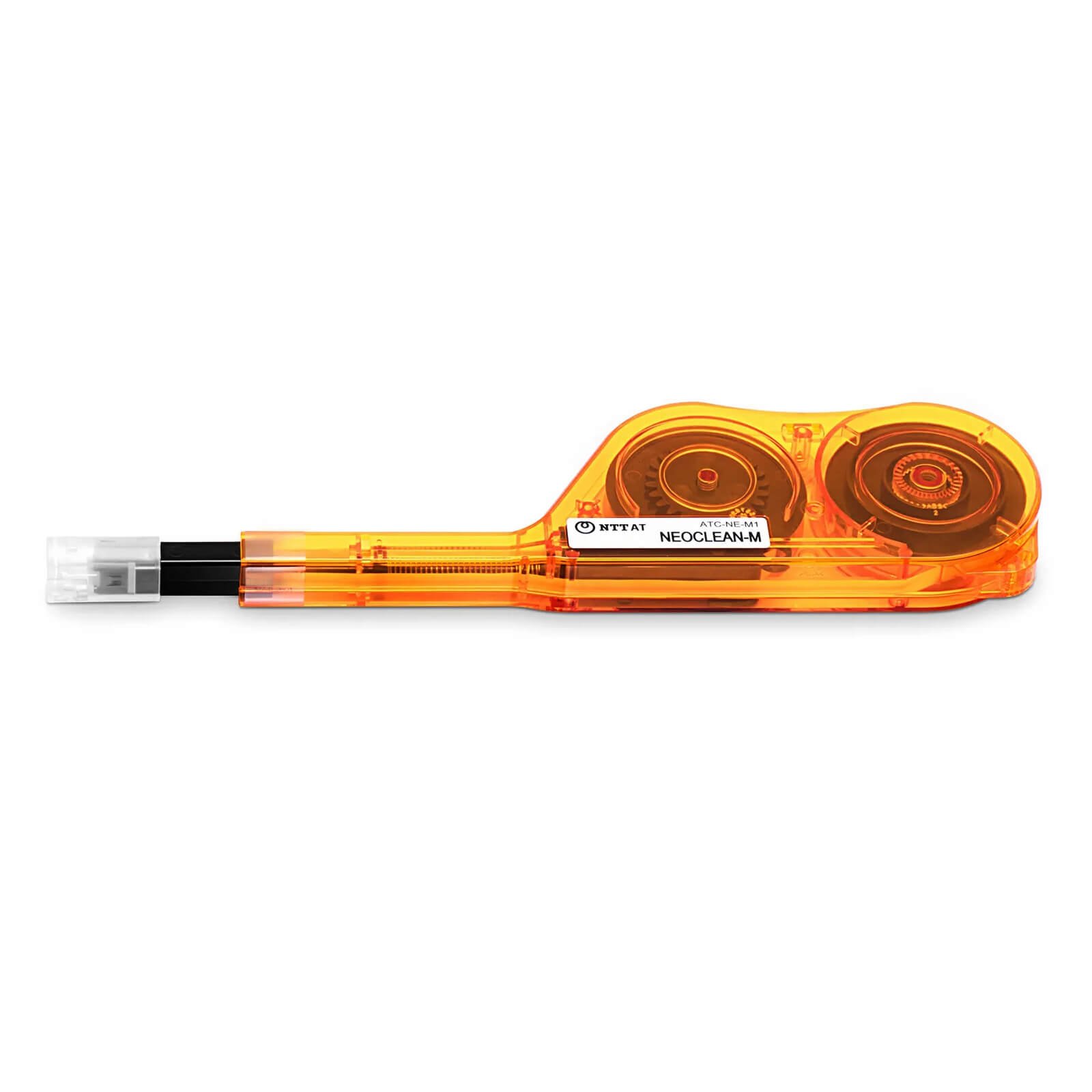

The MTP®/MPO One-Click Fiber Optic Cleaner by ABPTEL is designed for quick, reliable cleaning of fiber optic connector end-faces. It removes dust, oil, and contaminants from MTP®/MPO connectors with one simple push, ensuring optimal signal performance.
Unlike traditional alcohol-based methods, this dry-cleaning tool is mess-free, portable, and cost-effective, making it ideal for data centers, telecom rooms, and field maintenance.
⚙️ Key Features
- Connector Compatibility: MTP®/MPO-8/12/24
- Cleaning Count: ≥600 cleanings per tool
- Polish Type: PC / UPC / APC
- Style: Push-style port cleaner
- No Alcohol Required: Fast, dry cleaning method
- Usage: Suitable for both jumper ends and in-adapter ports
- Portable Design: Lightweight and ergonomic for field use
- Efficient: Cleans all fiber channels simultaneously
🏢 Typical Applications

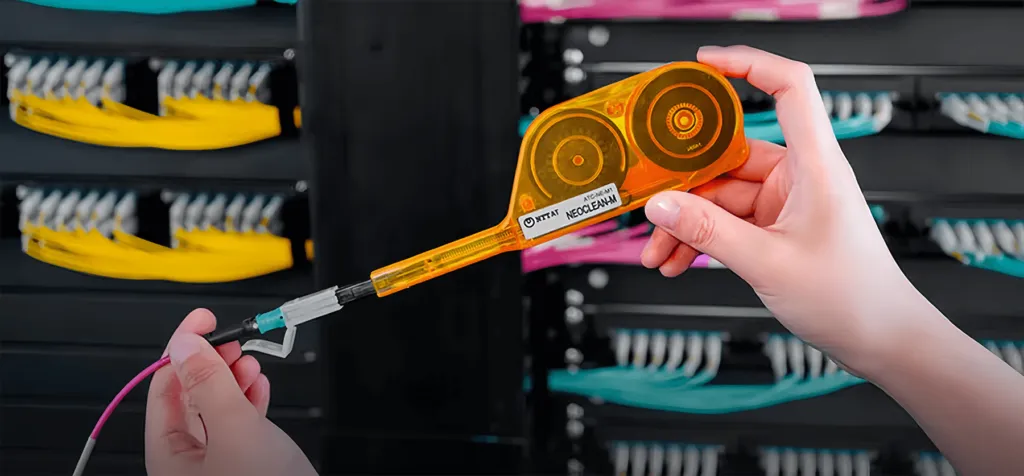

- Data center patching & maintenance
- Field fiber network service
- MTP®/MPO trunk & cassette cleaning
- High-speed 40G/100G/400G optical system maintenance
Specifications
| Parameter | Description |
|---|---|
| Model Number | ATC-NE-M1 |
| Classification Color | Brown |
| Target Use | MTP®/MPO-8/12/24 Connectors |
| Polish Type | PC / UPC / APC |
| No. of Cleanings | ≥ 600 times |
| Dimensions | 7.8″ × 0.6″ × 2.0″ (197 × 15 × 51 mm) |
| Use Type | Disposable |
| Style | Push-Style Port Cleaner |
| Cleaning Method | Dry (No Alcohol Required) |
| Operation | One-Push Mechanism |
| Brand | ABPTEL |
| Compliance | IEC 61300-3-35, RoHS |
Key Benefits
✅ High Efficiency: Cleans all 8/12/24 fibers in one push.
✅ Extended Lifespan: Up to 600+ uses per unit.
✅ Universal Compatibility: Works with PC, UPC, and APC connectors.
✅ Compact & Portable: Ideal for field or rack use.
✅ Dry Cleaning System: Eliminates alcohol residue and evaporation delay.
✅ Enhanced Signal Integrity: Maintains low insertion loss by preventing contamination.
