Description

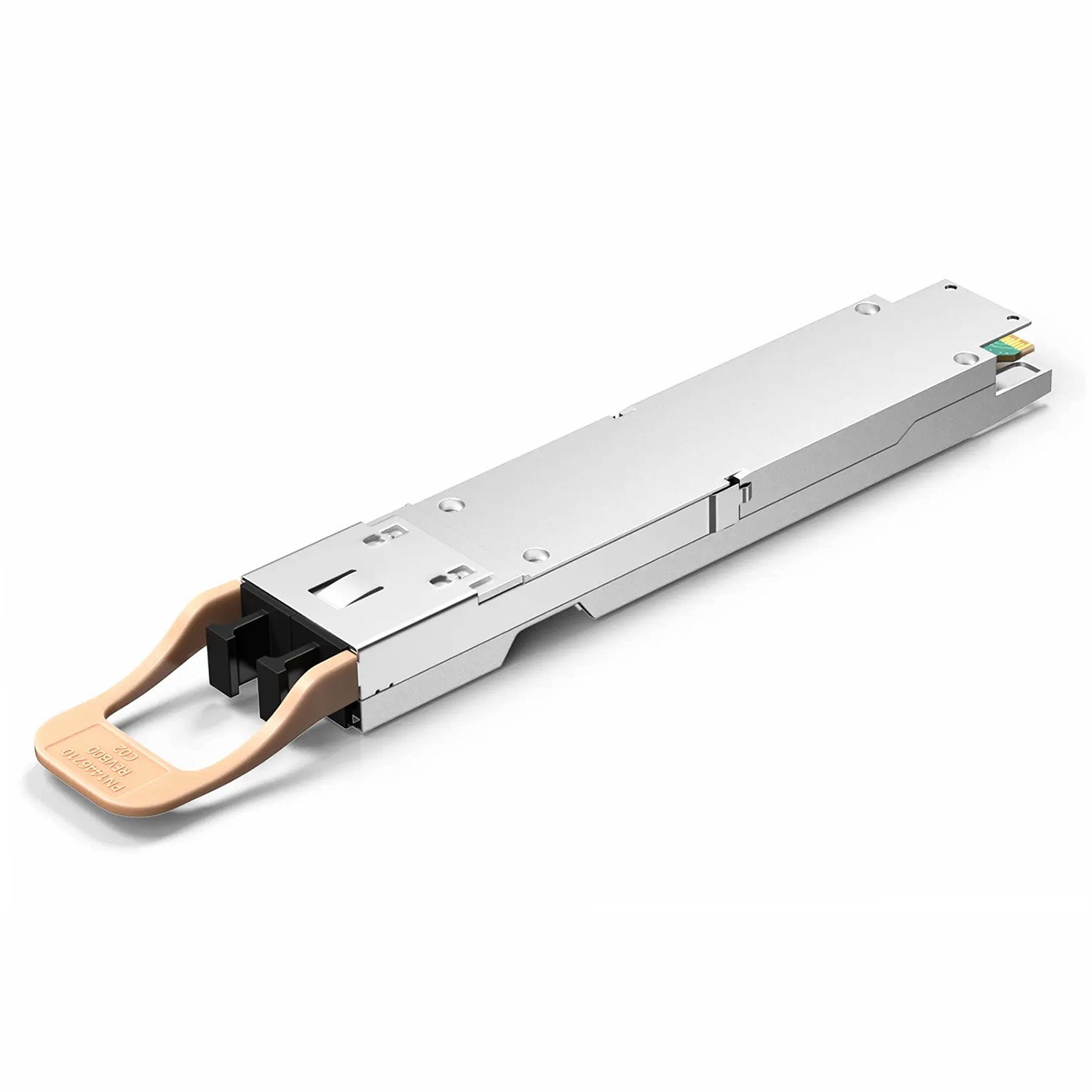

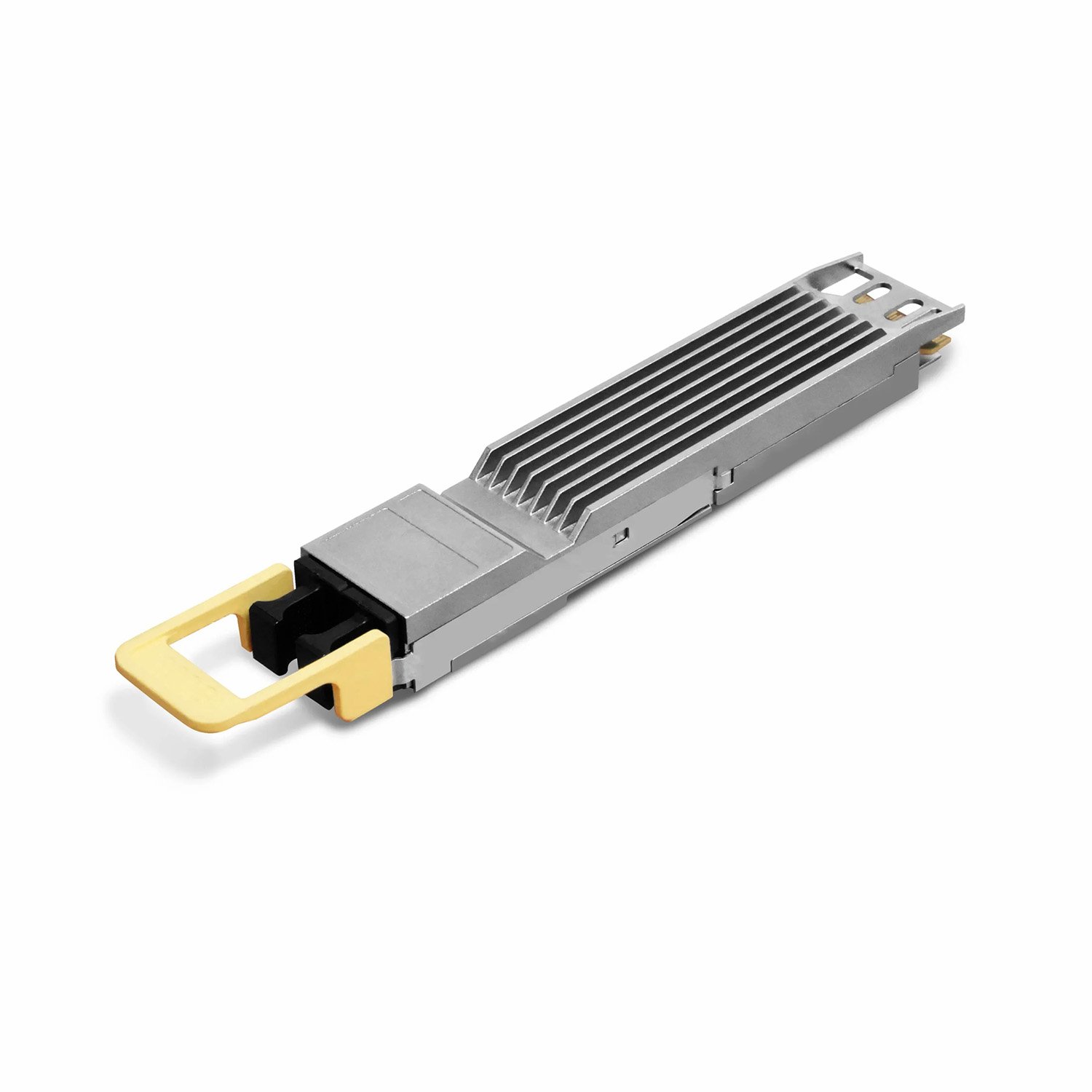

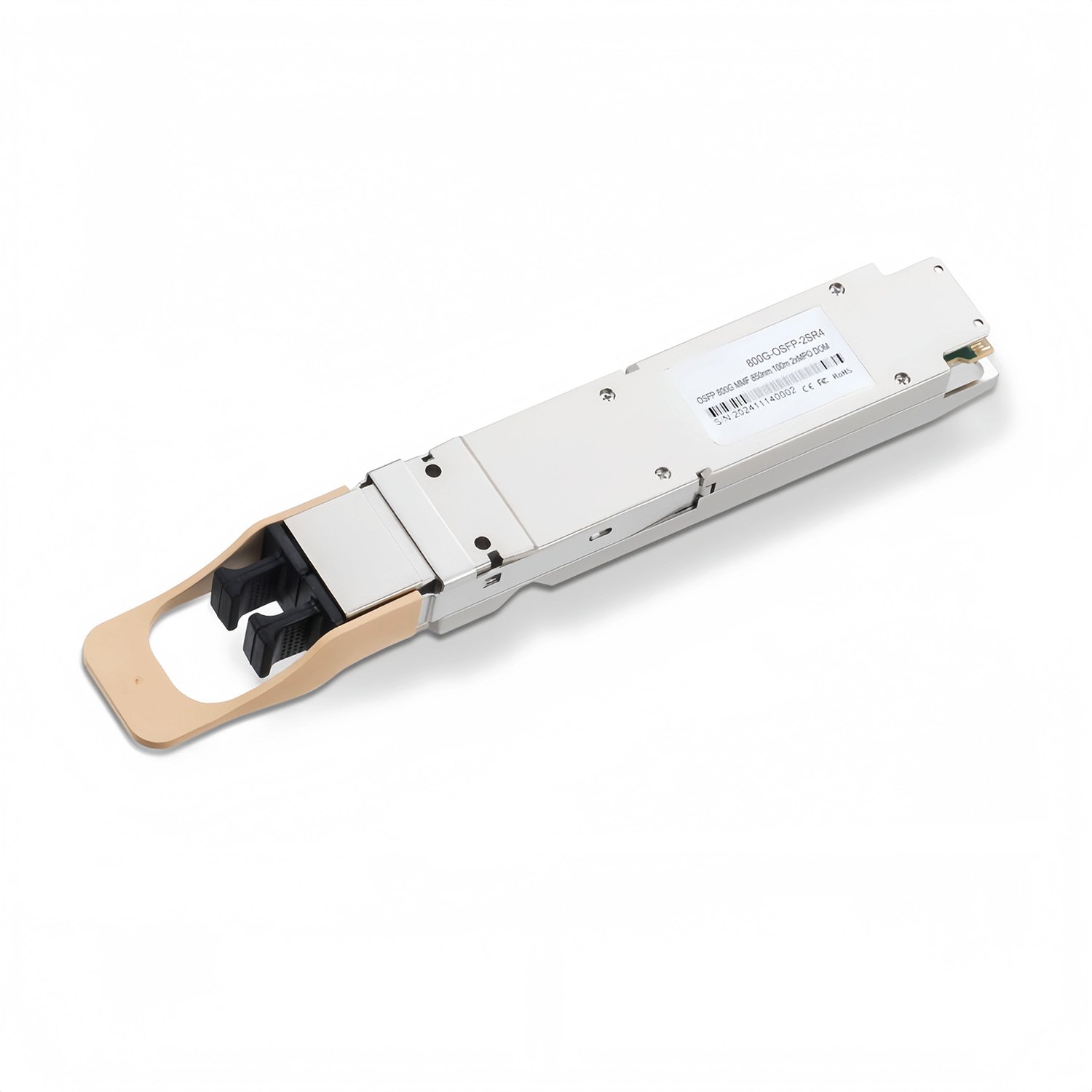

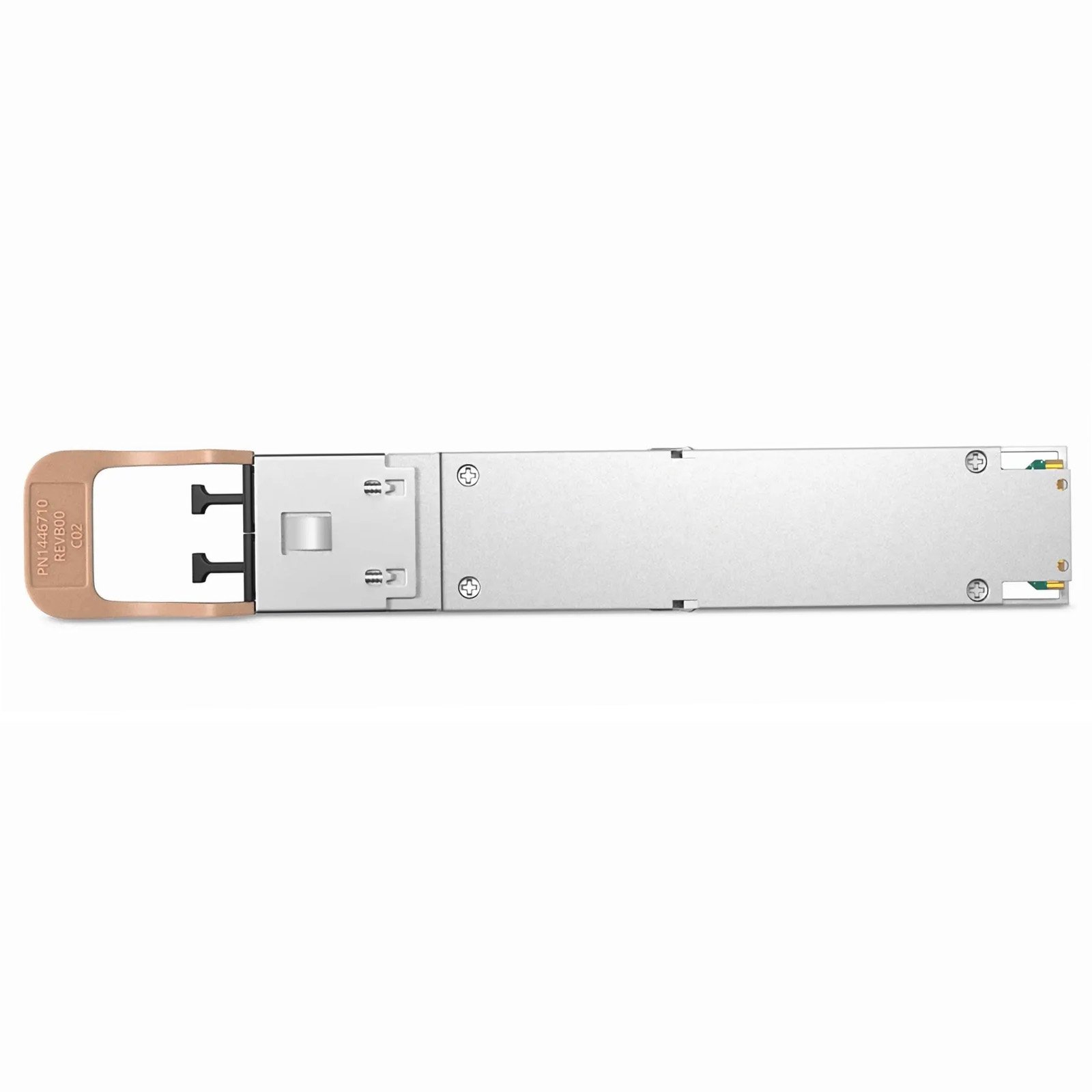

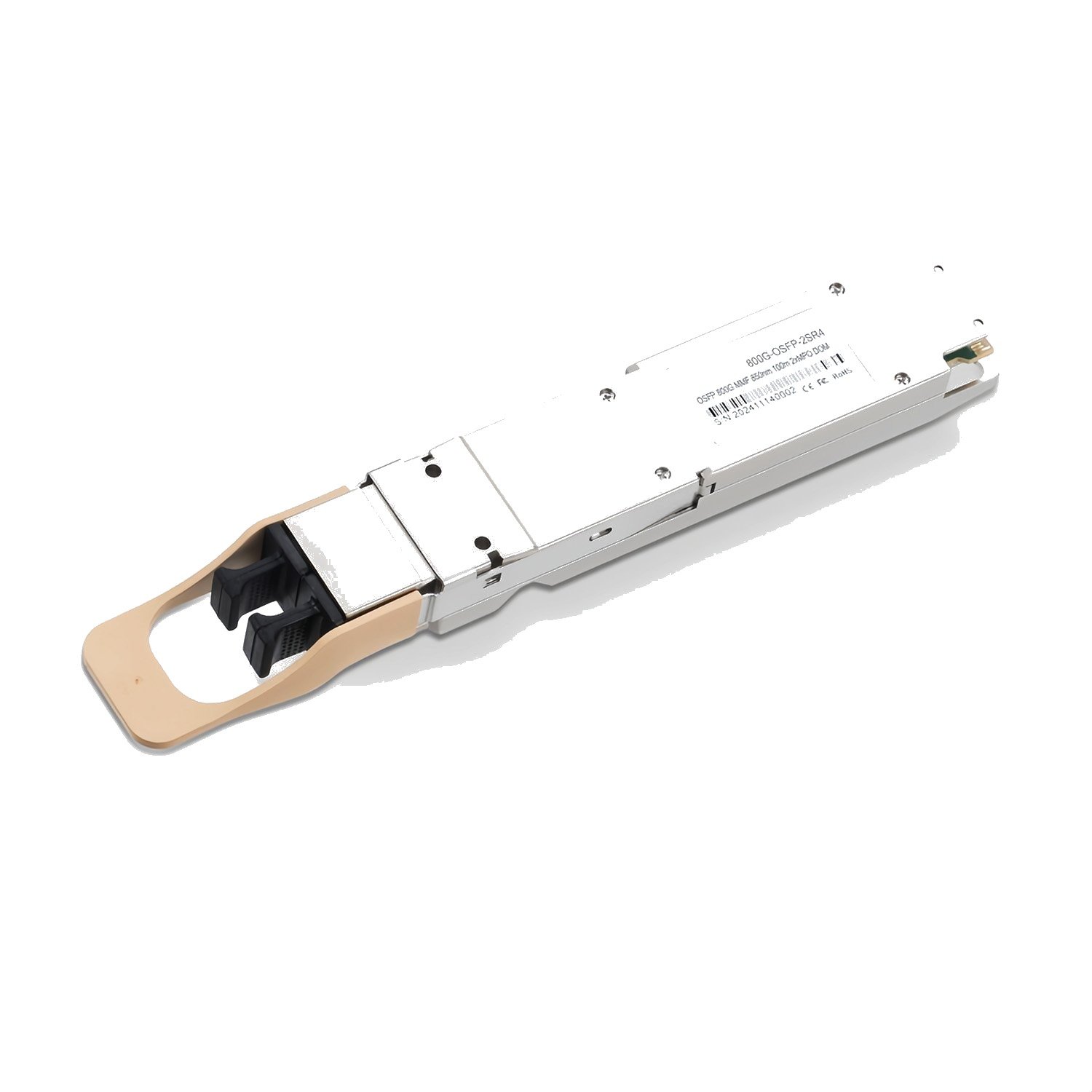

The ABPTEL 800G-OSFP-2SR4 is an eight-channel, pluggable, parallel fiber-optic transceiver designed for 800 Gigabit Ethernet applications. This high-performance module is optimized for short-reach interconnects within data centers, HPC systems, and AI clusters, providing both high speed and reliability.
Operating at 8×106.25Gb/s PAM4, the module achieves a total data rate of 850Gbps and supports transmission distances up to 70m over OM3 and 100m over OM4 multimode fiber (MMF). Utilizing 850nm VCSEL transmitters and PD receivers, it ensures low power consumption (≤16W) and stable optical performance.
Featuring a dual MPO-12 APC connector and full compliance with OSFP MSA, CMIS 5.1, and RoHS standards, the ABPTEL 800G 2xSR4 module provides seamless integration for AI computing, InfiniBand NDR, cloud-scale data centers, and 800G Ethernet environments.
Specifications
| Parameter | Specification |
|---|---|
| Form Factor | OSFP |
| Max Data Rate | 850Gbps |
| Wavelength | 850nm |
| Media | MMF |

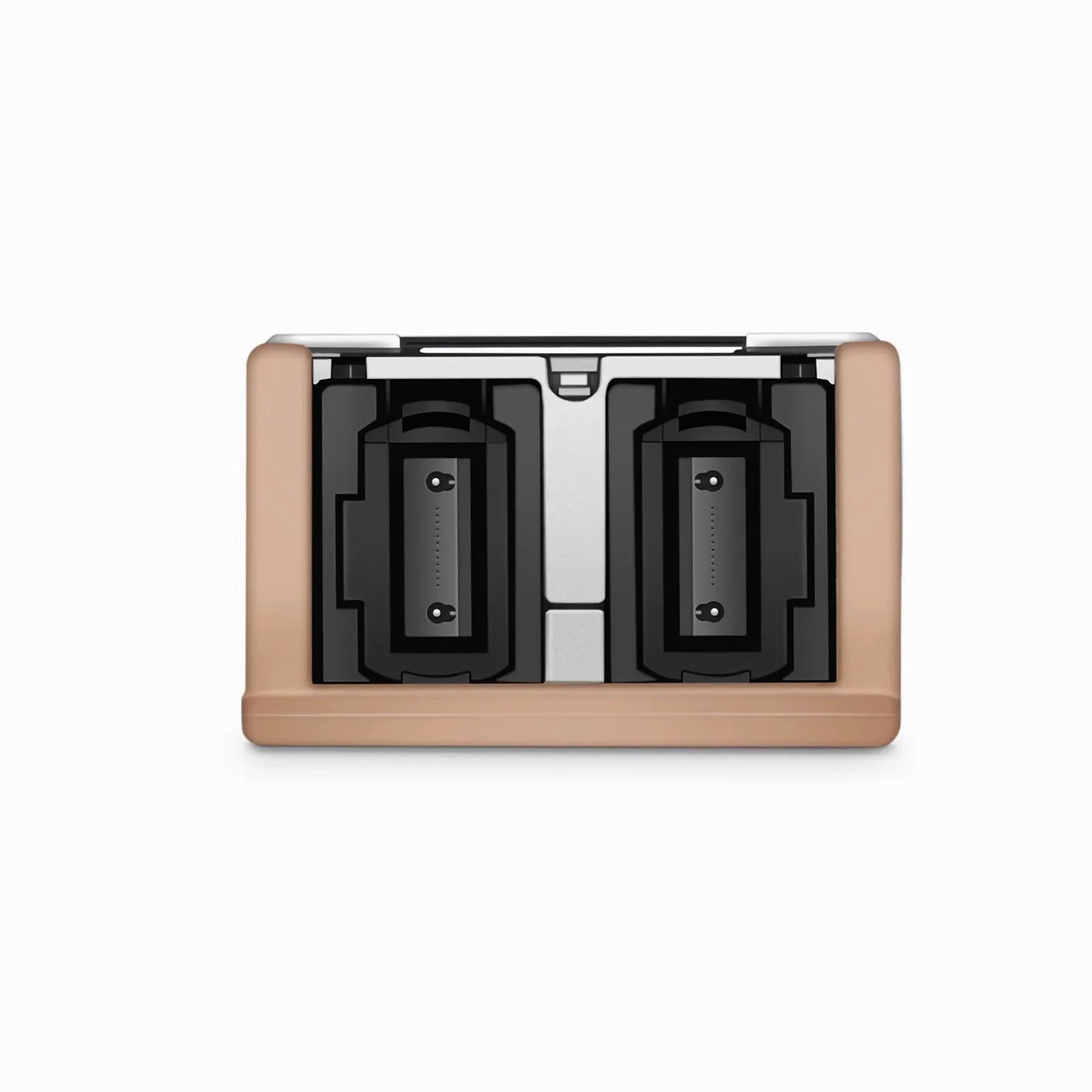

| Connector | Dual MPO-12 APC |
| Transmitter Type | VCSEL |
| Receiver Type | PD |
| TX Power | -4.6 ~ -4dBm |
| Receiver Sensitivity | < -6.4dBm |
| Electrical Modulation | 8 × 106.25Gb/s PAM4 |
| Optical Modulation | Twin port 4 × 106.25Gb/s PAM4 |
| Power Consumption | ≤16W |
| CBit Error Ratio (BER) | 1.0E-12 |
| Temperature Range | 0°C ~ 70°C (32°F ~ 158°F) |
| Operating Humidity | 5% ~ 85% |
| Host FEC | Supported |
| DDM/DOM | Supported |
| Protocols | OSFP MSA, CMIS 5.1, RoHS |
| Max Cable Distance | 100m (OM4) / 70m (OM3) |
| Main Applications | 800G Ethernet, InfiniBand NDR, Data Center Interconnect, AI & HPC Networks |
Key Benefits
- High-speed 800G OSFP 2xSR4 optical transceiver for AI and cloud-scale data centers
- Supports 100m OM4 and 70m OM3 multimode transmission at 850nm VCSEL
- Dual MPO-12 APC connectors for efficient parallel fiber interconnects
- Low latency and power consumption (≤16W) ideal for HPC and InfiniBand NDR systems
- Fully compliant with OSFP MSA, CMIS 5.1, RoHS standards
- Compatible with Arista, Juniper, Cisco, NVIDIA, Dell, and HPE platforms
