Description
The ABPTEL 800GBASE 2xFR4 OSFP optical transceiver is a high-performance solution designed for 800G Ethernet applications, enabling 800Gbps throughput over 2km single-mode fiber (SMF) via dual duplex LC/UPC connectors.
This module is fully compliant with IEEE 802.3ck, IEEE 802.3cu, and OSFP MSA standards, and operates using four CWDM wavelengths (1271nm, 1291nm, 1311nm, and 1331nm). Integrated digital diagnostics monitoring (DDM) provides real-time operating parameters for optimal link management.
Built in a twin-port OSFP closed finned-top housing, the module supports efficient air-cooled Ethernet switches, offering low latency, low power consumption (≤16.5W), and high reliability. It can be deployed for spine-leaf switch interconnects, top-of-rack (ToR) links, or connections to BlueField-3 DPUs in AI clusters and storage networks.
With exceptional optical performance, ABPTEL’s 800G OSFP 2xFR4 module is the ideal solution for AI training, HPC computing, and next-generation cloud data centers.
Specifications
Parameter | Specification |
---|---|
Vendor Name | ABPTEL |

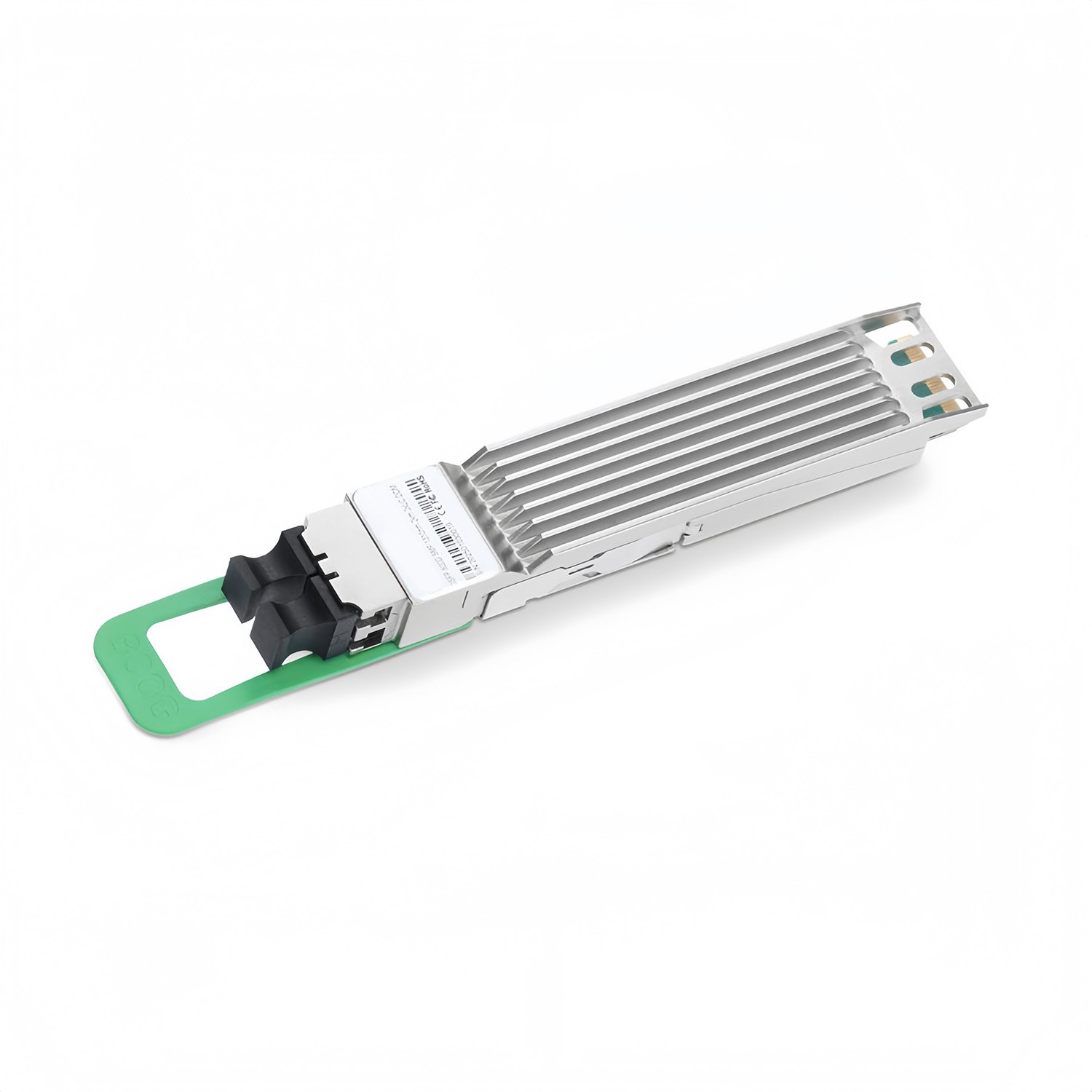

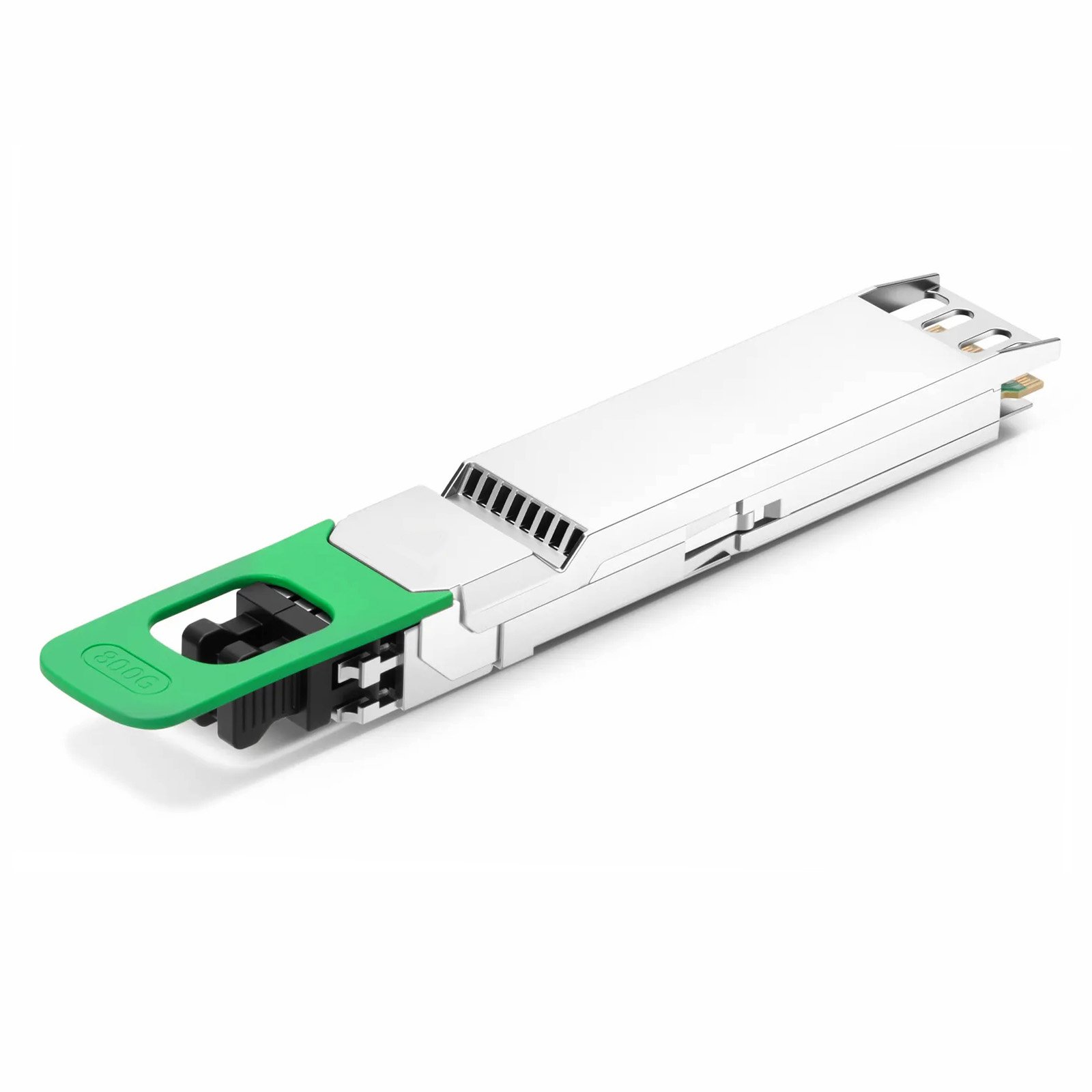

Form Factor | Twin-port OSFP Closed Finned Top |
Max Data Rate | 850Gbps (8×106.25Gbps) |
Wavelength | 1271nm, 1291nm, 1311nm, 1331nm |
Media | SMF |

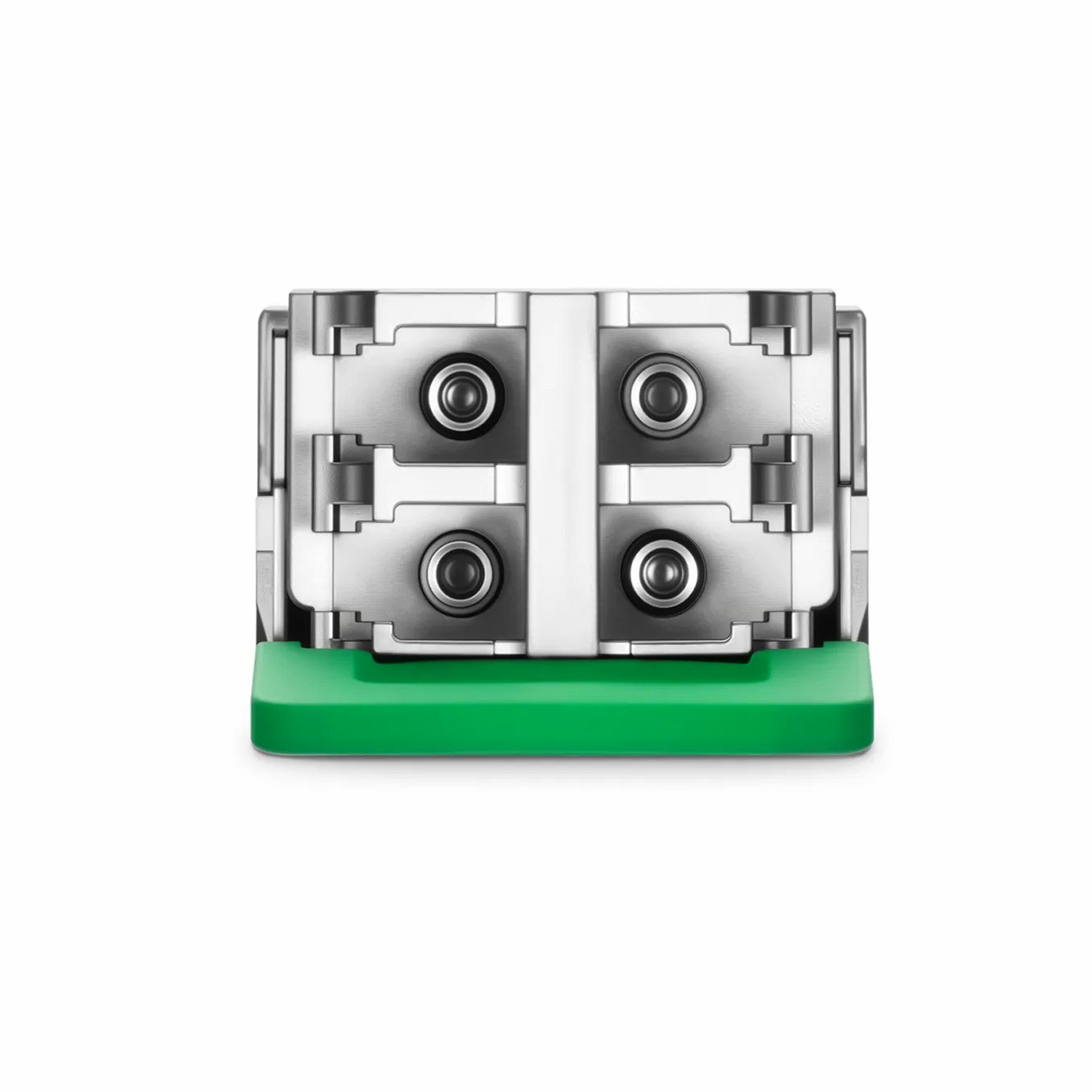

Connector | Dual Duplex LC/UPC |
Transmitter Type | EML |
Receiver Type | PIN |
TX Power | –3.2 ~ 4.4dBm |
Minimum Receiver Power | –7.2dBm |
Receiver Overload | 4.4dBm |
Extinction Ratio | >3.5dB |
Power Budget | 4dB |
Max Cable Distance | 2km |
Power Consumption | ≤16.5W |
DDM/DOM | Supported |
Modulation (Electrical) | 8×100G-PAM4 |
Modulation (Optical) | Dual 4×100G-PAM4 |
Protocols | OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu/ck 2021, IEEE P802.3ck D2.2 |
Temperature Range | 0°C ~ 70°C (32°F ~ 158°F) |
Warranty | 5 Years |
Main Applications | 800G Ethernet, InfiniBand NDR, AI/HPC Clusters, Data Center Interconnects |
Key Benefits
- High-performance 800G OSFP 2xFR4 optical module for 2km single-mode links
- Supports 1310nm CWDM4 wavelengths with dual LC duplex connectors
- Low-latency, low-power operation ideal for AI and HPC data center networks
- Twin-port closed finned-top design optimized for air-cooled Ethernet switches
- Compliant with IEEE 802.3ck, 802.3cu, OSFP MSA, CMIS 5.0 standards
- Compatible with Arista, Juniper, Cisco, NVIDIA, Dell, HPE equipment
- Ideal for spine-leaf interconnects, top-of-rack switch links, and DPU connectivity

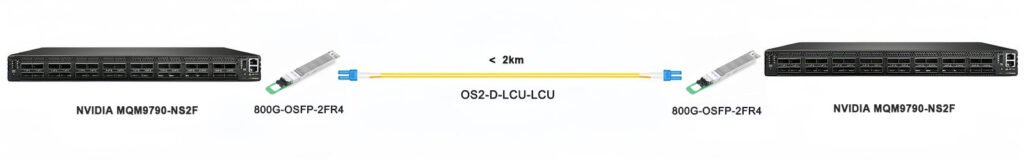

Application Scenarios
