Description

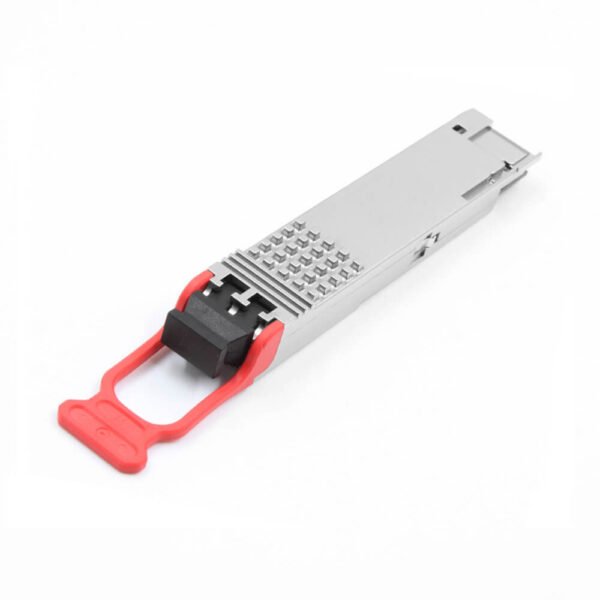

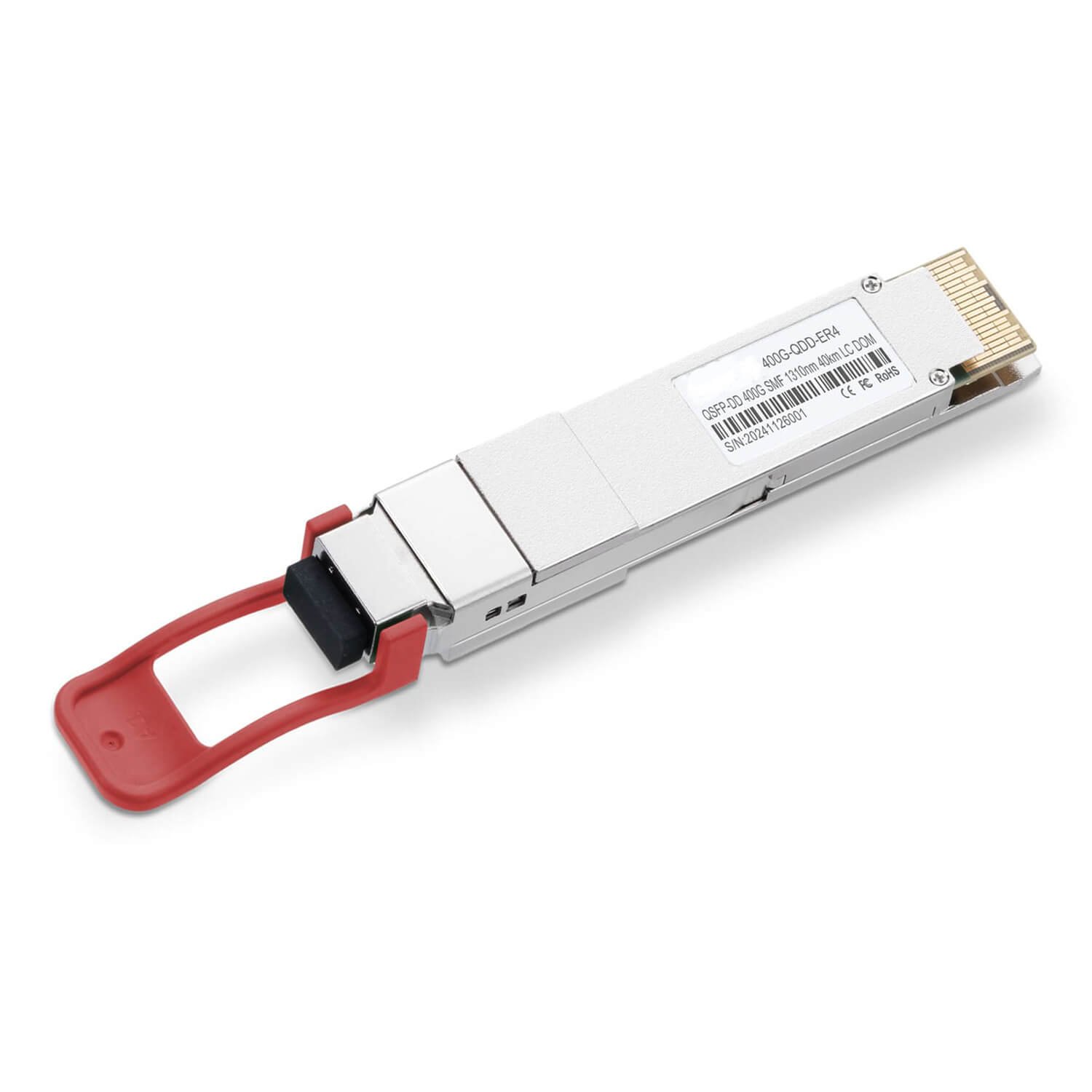

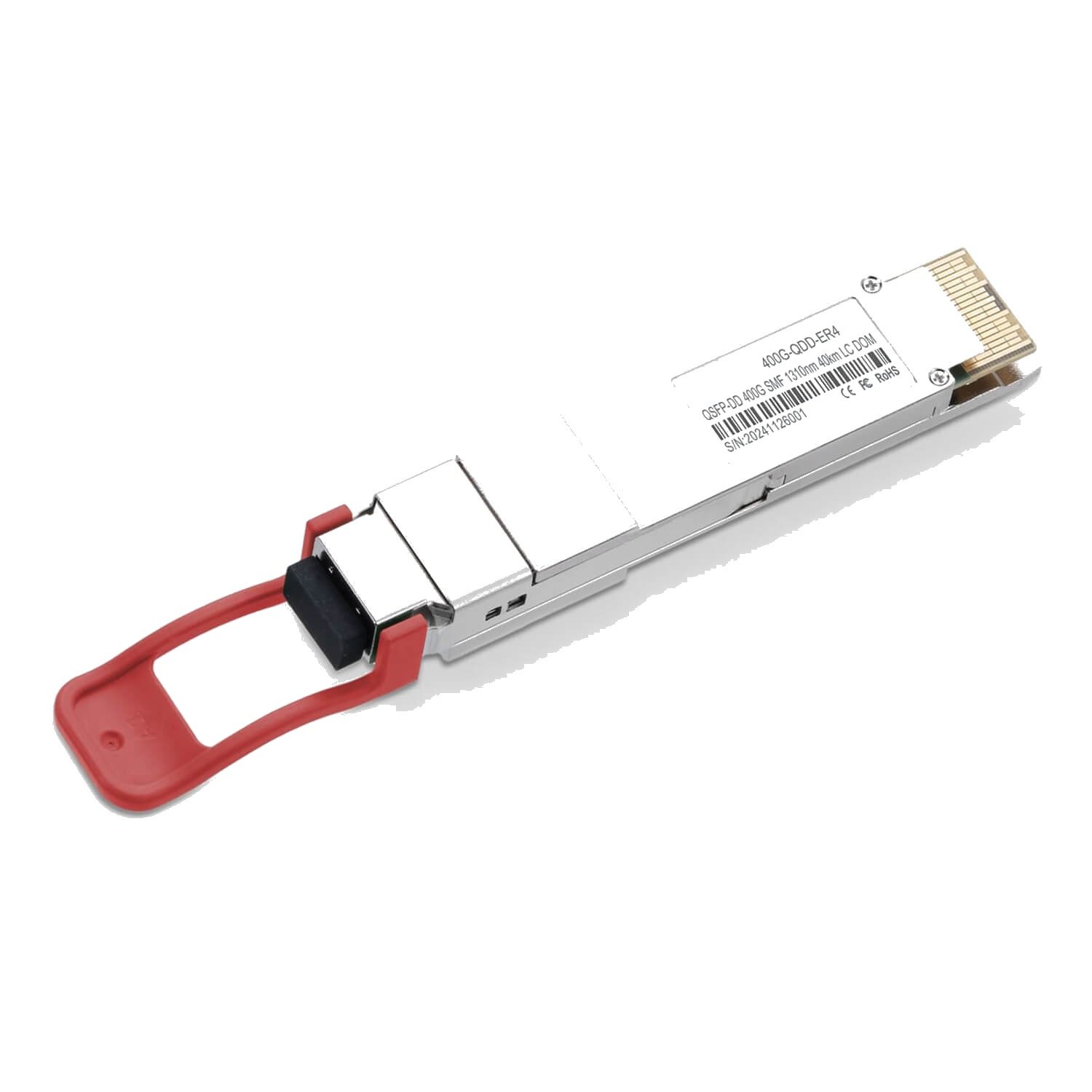

The ABPTEL 400G-QDD-ER4 is a high-performance, extended-reach optical transceiver module designed for 400 Gigabit Ethernet applications. Operating in the QSFP-DD form factor, it supports data rates of up to 425Gbps and provides reliable transmission over 40km single-mode fiber (SMF).

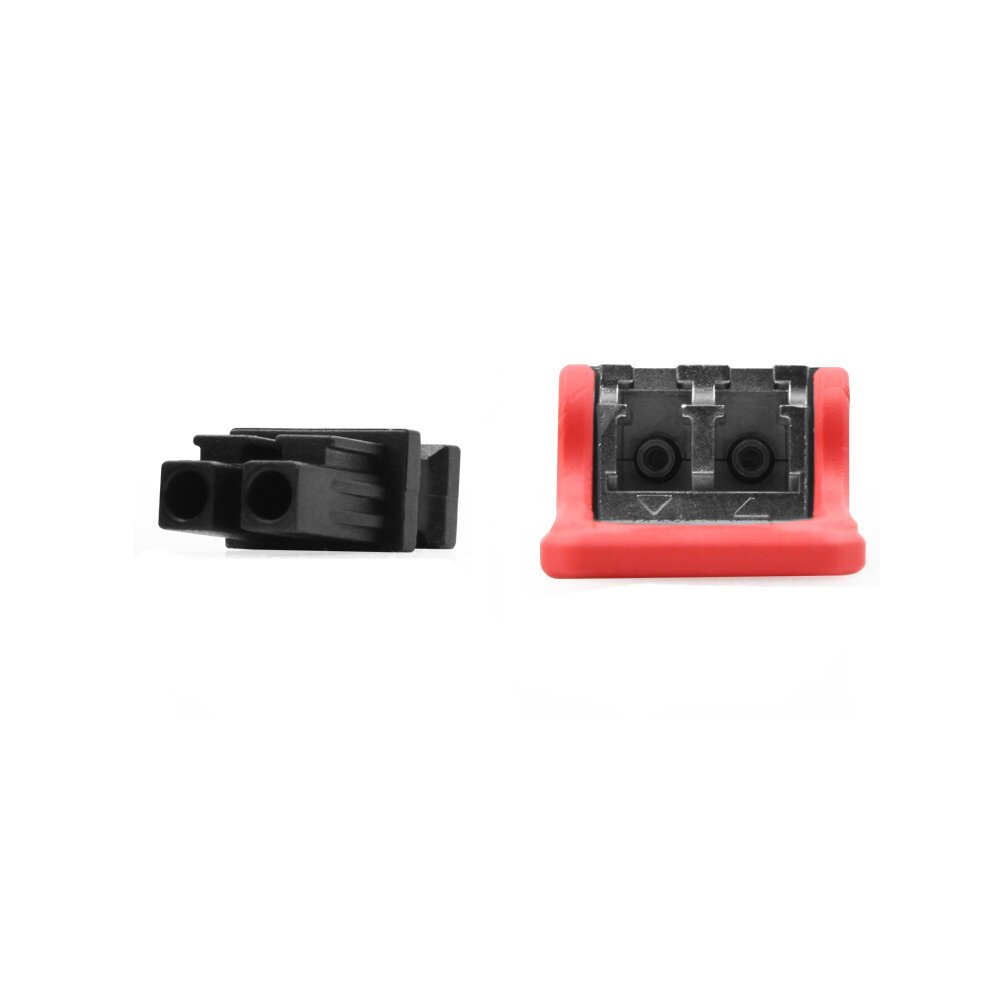

This module leverages 1310nm LWDM EML transmitters and SOA-PIN receivers, enabling superior optical performance with low bit error ratio. Featuring a duplex LC interface and supporting 8×53.125Gb/s PAM4 electrical modulation and 4×106.25Gb/s PAM4 optical modulation, the ABPTEL 400G ER4 ensures seamless long-distance connectivity.
With power consumption of ≤10W and compliance to QSFP-DD MSA, IEEE 802.3bs, CMIS4.0, and RoHS standards, it is optimized for data center interconnect (DCI), enterprise backbones, and telecom networks requiring extended 400G reach.
Choose ABPTEL’s 400G ER4 QSFP-DD transceiver for scalable, efficient, and standards-compliant 400G deployments.
Specifications
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps |
| Wavelength | 1310nm LWDM |
| Media | SMF |
| Connector | Duplex LC |
| Transmitter Type | LWDM EML |
| Receiver Type | SOA PIN |
| TX Power | -0.5 ~ 5.6dBm |
| Receiver Sensitivity | < -16.1dBm |
| Electrical Modulation | 8 × 53.125Gb/s PAM4 |
| Optical Modulation | 4 × 106.25Gb/s PAM4 |
| Power Consumption | ≤10W |
| CBit Error Ratio (BER) | 1.0E-12 |
| Temperature Range | 0°C ~ 70°C (32°F ~ 158°F) |
| Operating Humidity | 5% ~ 85% |
| Host FEC | Supported |
| DDM/DOM | Supported |
| Protocols | QSFP-DD MSA, IEEE 802.3bs, CMIS4.0, RoHS |
| Max Cable Distance | 40km |
| Main Applications | 400G Ethernet, Data Center Interconnect, Telecom Networks |
Key Benefits
- High-performance 400G QSFP-DD ER4 solution for extended 40km SMF links
- Operates at 1310nm LWDM with duplex LC interface for stable transmission
- Low power consumption (≤10W) optimized for high-density deployments
- Full compliance with QSFP-DD MSA, IEEE 802.3bs, CMIS4.0 standards
- Ideal for DCI, enterprise backbone, and telecom network infrastructures
- Tested compatibility with Cisco, Arista, Juniper, Huawei, Dell, HPE platforms
