Description
Product Overview

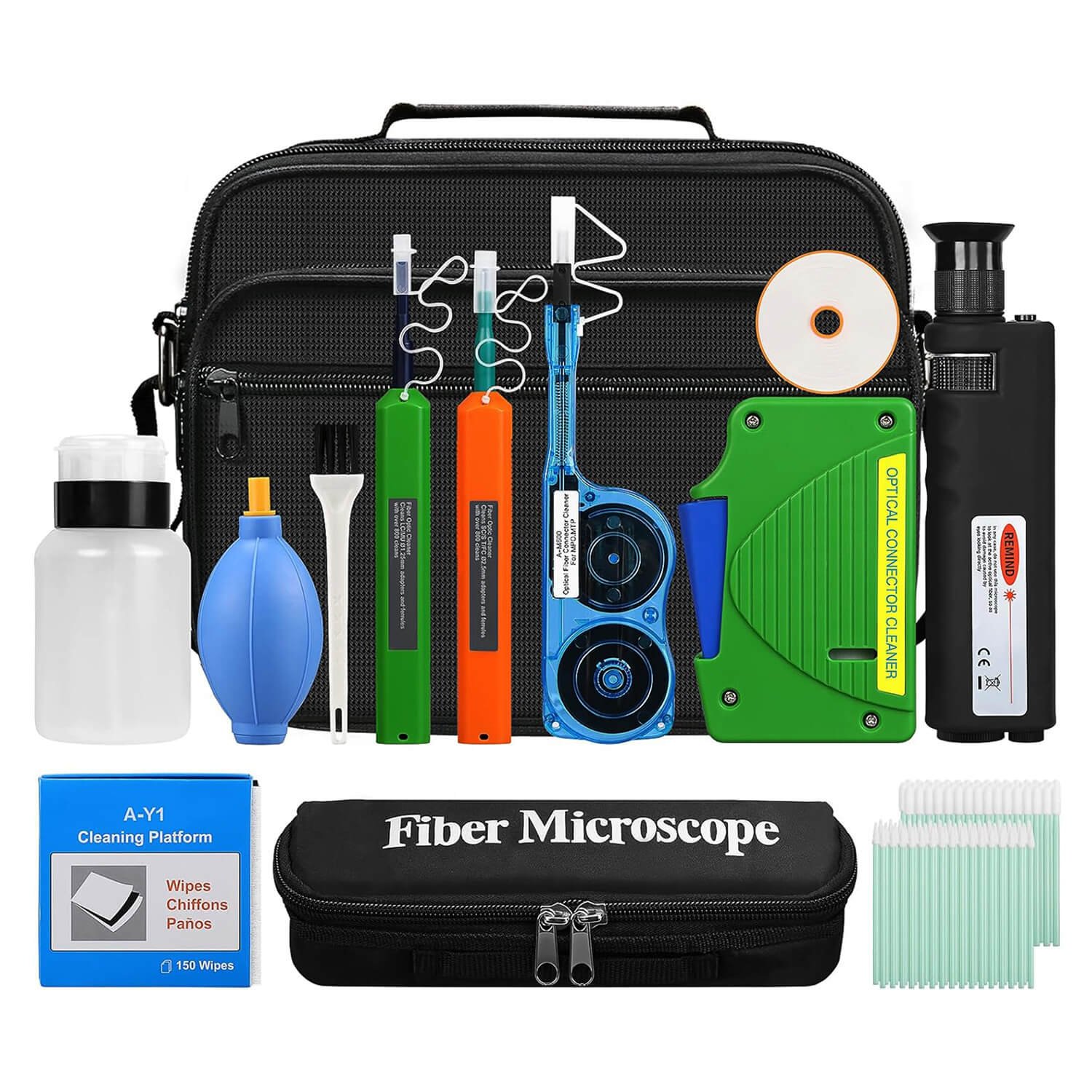

The ABPTEL 14-in-1 Fiber Optic Cleaning Tool Kit provides a complete and portable cleaning solution for fiber optic engineers.
Designed for high-density optical network environments, this multifunctional kit enables fast, precise, and residue-free cleaning of all major connector interfaces, including SC, LC, FC, ST, MU, MPO, and MTP.
Whether for FTTH installations, data center maintenance, or field testing, this set ensures optical performance remains at peak efficiency.
⚙️ Key Components
🔹 Fiber Optic Cleaning Box
- Compatible with SC/FC/LC/ST interfaces
- Replaceable cleaning core
- Up to 500 cleaning cycles per cartridge
- Compact and anti-static design

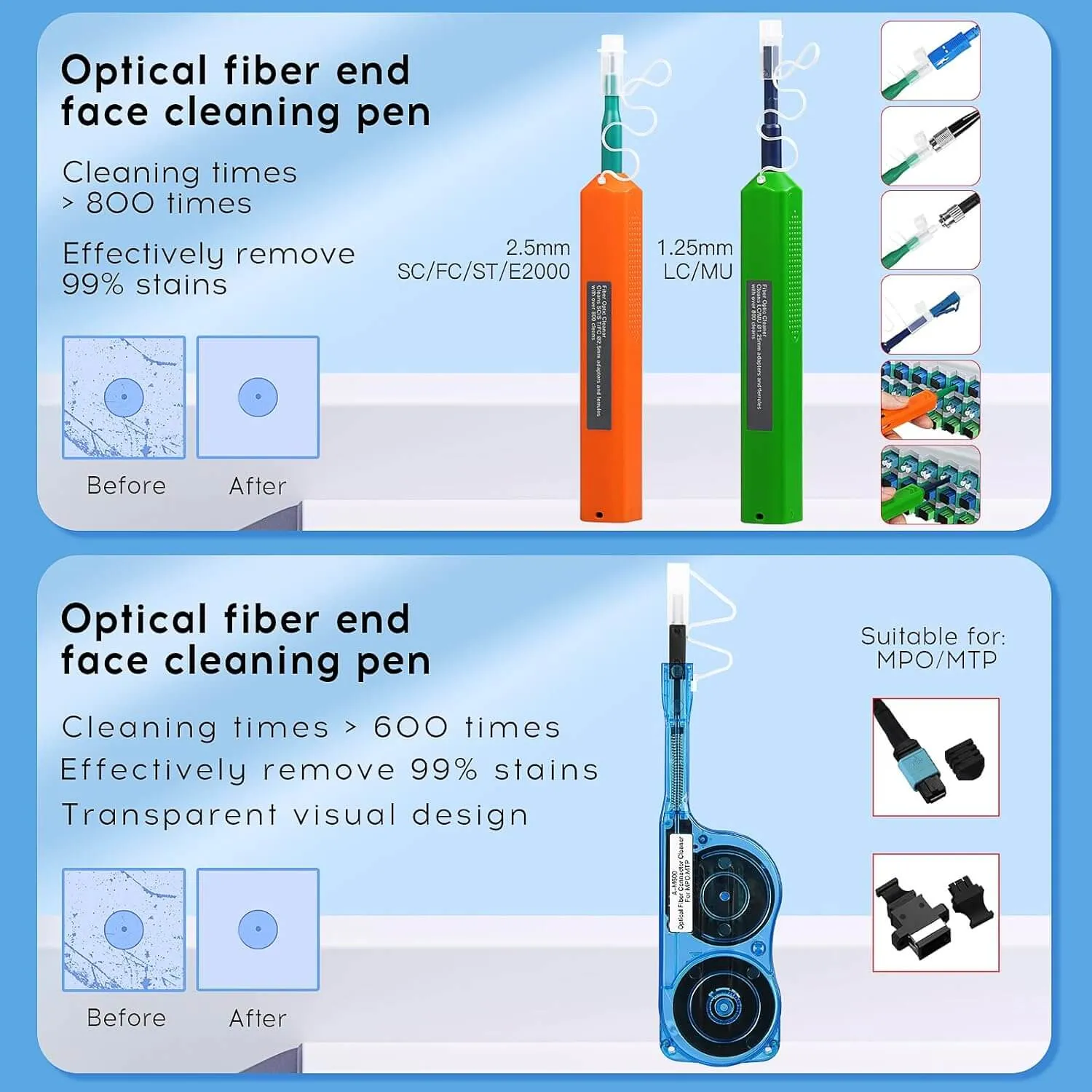

🔹 Fiber Optic Cleaning Pens
- SC Cleaner Pen (2.5mm): For SC/FC/ST connectors, 800+ cleans
- LC Cleaner Pen (1.25mm): For LC connectors, 800+ cleans
- MPO/MTP Cleaner Pen: For male and female heads, 600+ cleans, automatic cleaning thread feed

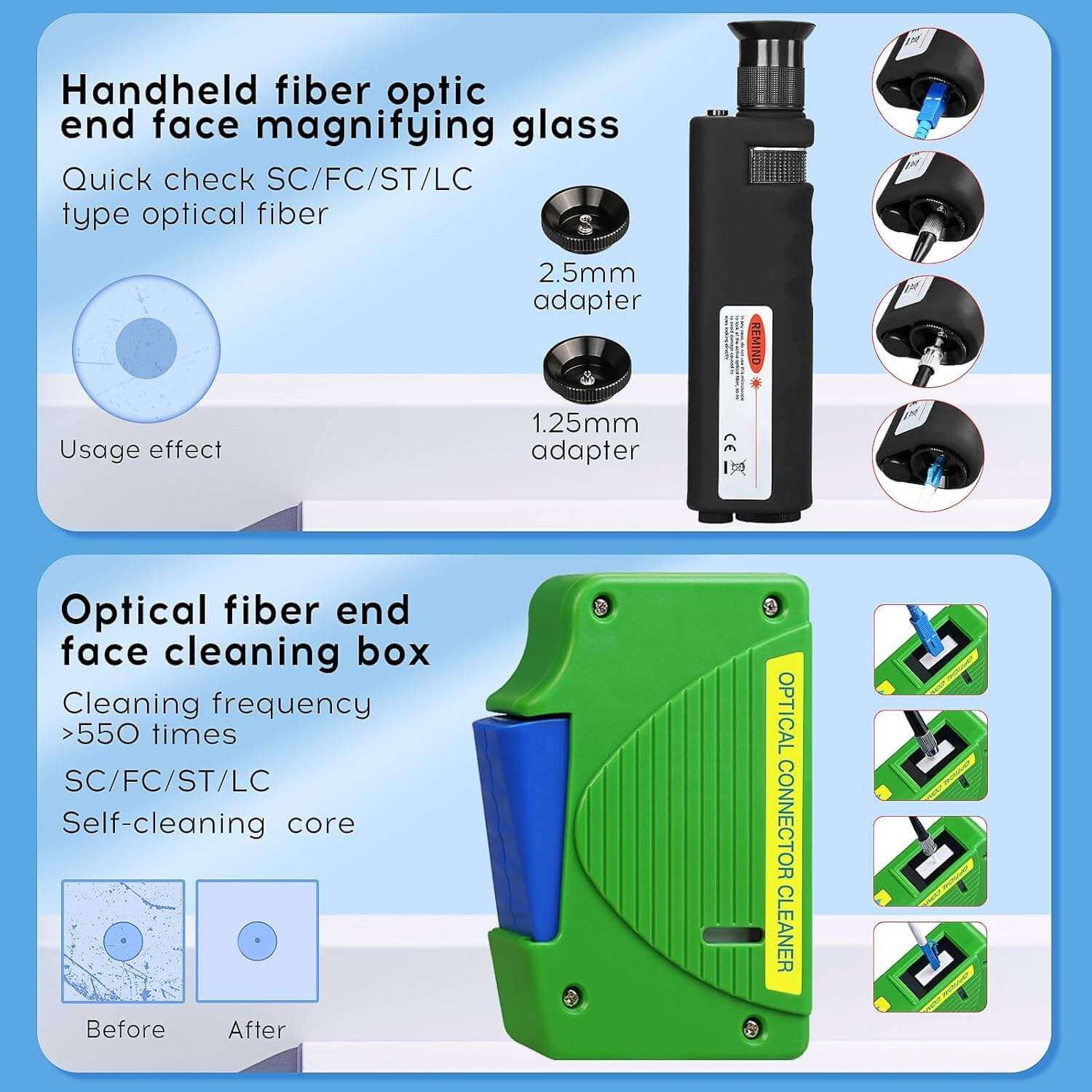

🔹 400x Fiber Optic Microscope
- Includes 1.25mm & 2.5mm adapters
- Enables direct inspection of ferrule end-faces
- High precision optical zoom for field analysis

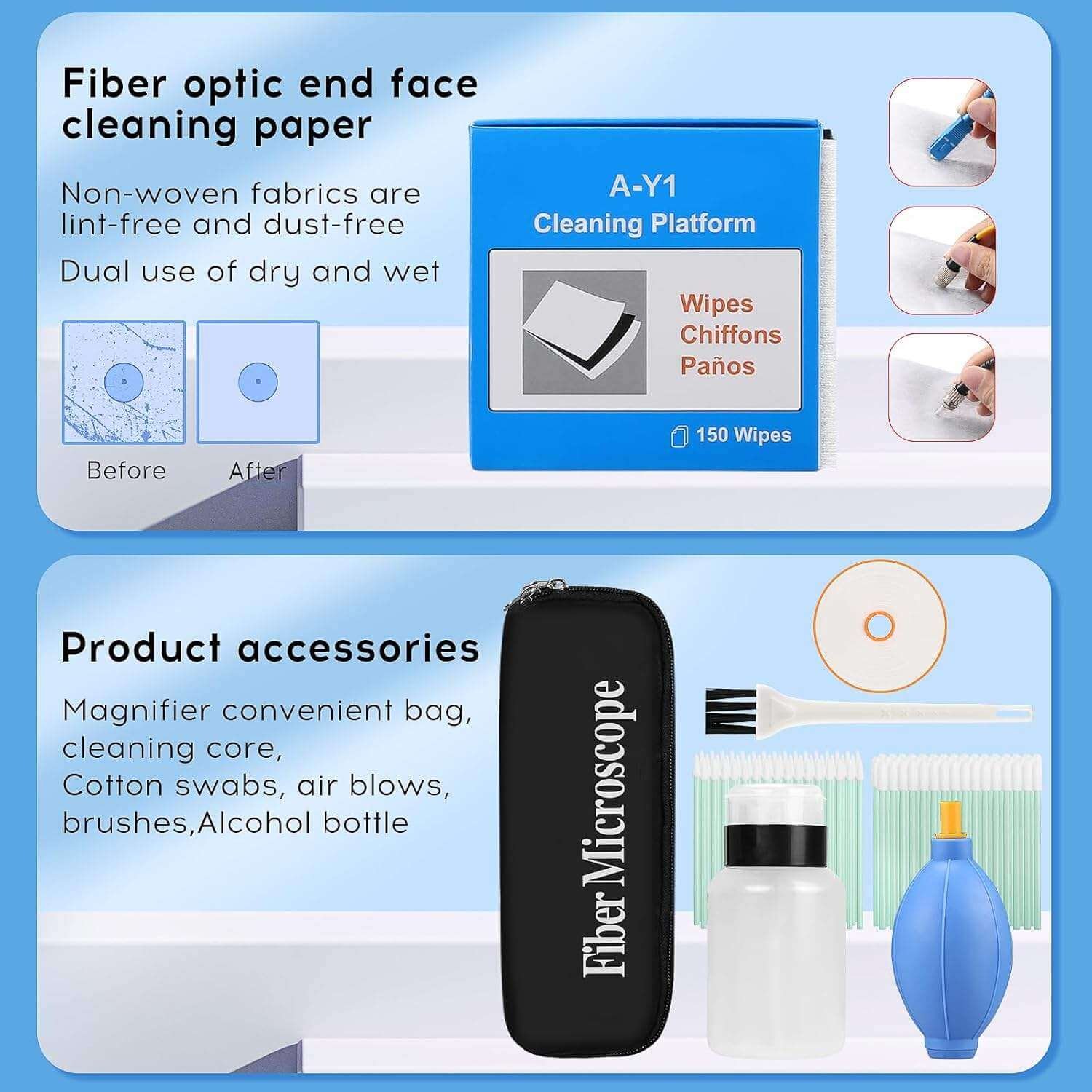

🔹 Additional Accessories
- Air blower, brush, cleaning paper, bottle, replacement cores, and tool bag
- Durable and lightweight — ideal for on-site use
Specifications
| Parameter | Description |
|---|---|
| Model Name | ABPTEL 14-in-1 Cleaning Tool Kit |

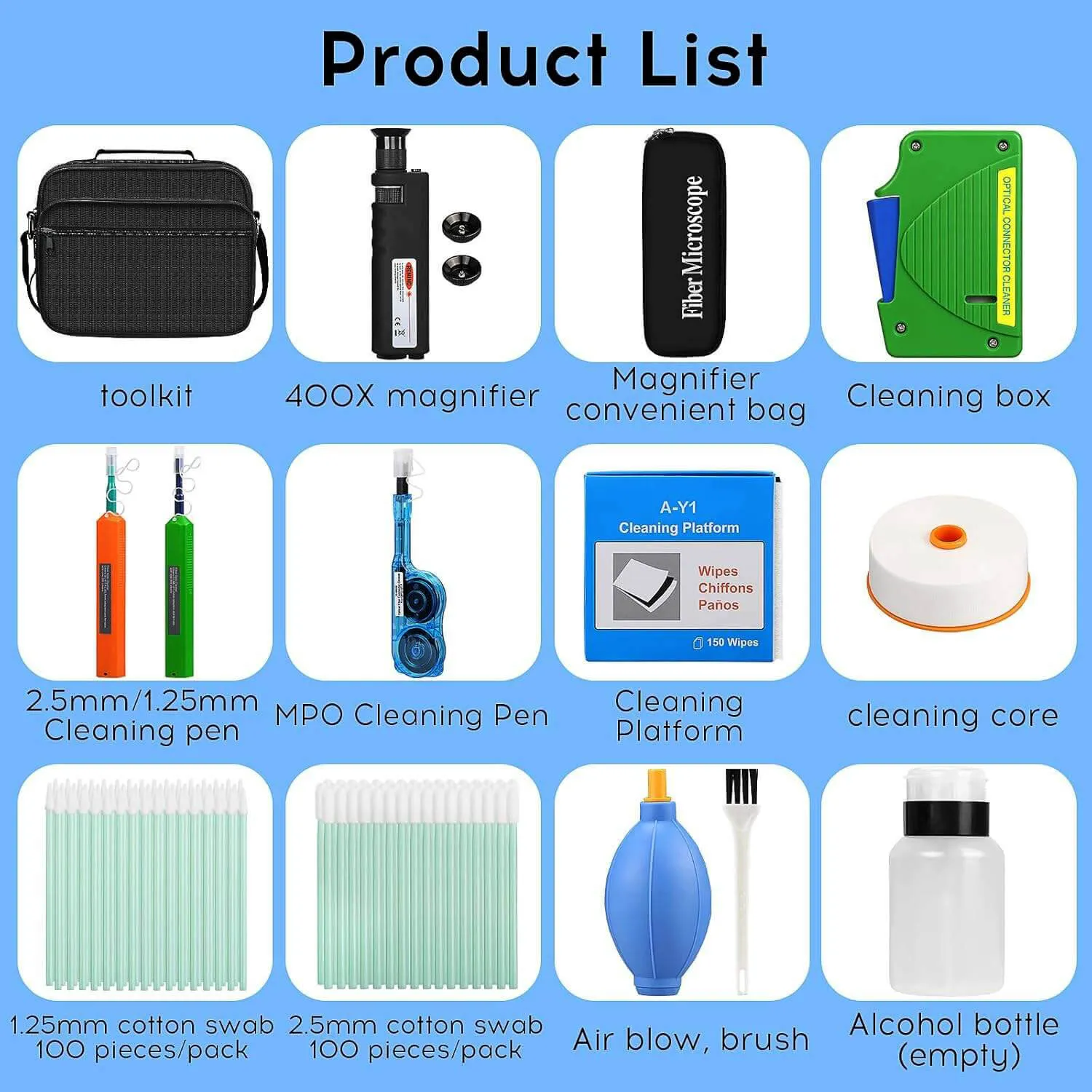

| Included Items | 400x Microscope, SC/LC/MPO Cleaners, Cleaning Box, Air Blower, Brush, Bottle, Tool Bag |
| Compatible Connectors | SC, LC, FC, ST, MU, MPO, MTP |
| Cleaning Capacity | 500–800 times (depending on tool type) |
| Replaceable Parts | Cleaning Box Cartridge, MPO Thread Core |
| Microscope Magnification | 400x |
| Microscope Adapter Sizes | 1.25mm / 2.5mm |
| Cleaning Method | Dry contact, solvent-free |
| Recommended Applications | FTTH, Data Center, Telecom Maintenance |
| Material | ABS / Optical-grade fiber fabric |
| Operating Temperature | -20°C to +60°C |
| Compliance | RoHS, ISO9001 |
| Brand | ABPTEL |
Key Benefits
✅ All-in-One Solution: 14 professional-grade tools for comprehensive fiber cleaning and inspection.
✅ High Compatibility: Works with all standard connectors including SC/LC/MPO/MTP.
✅ Long Service Life: Up to 800 cleaning cycles per pen, 500 for cleaning box.
✅ Precision Inspection: Built-in 400x microscope for ferrule end-face checking.
✅ Ergonomic Design: Lightweight, easy to use, and portable for field operations.
✅ Eco-Friendly: Alcohol-free, dry cleaning technology — safe for optical surfaces.
✅ Replaceable Cartridges: Extend lifespan and reduce maintenance cost.
