MPO vs MTP Connectors: What’s the Difference?

I remember my first 40 G upgrade. We had pallets of MPO trunks on the dock and one big question: should we pay extra for MTP? At the time I thought “MPO is an international standard, MTP is just branding.” Ten years and three data-center builds later, I know the tiny mechanical tweaks inside an MTP ferrule can save hours of re-work and thousands in lost throughput. This guide walks through every detail I wish someone had told me back then.

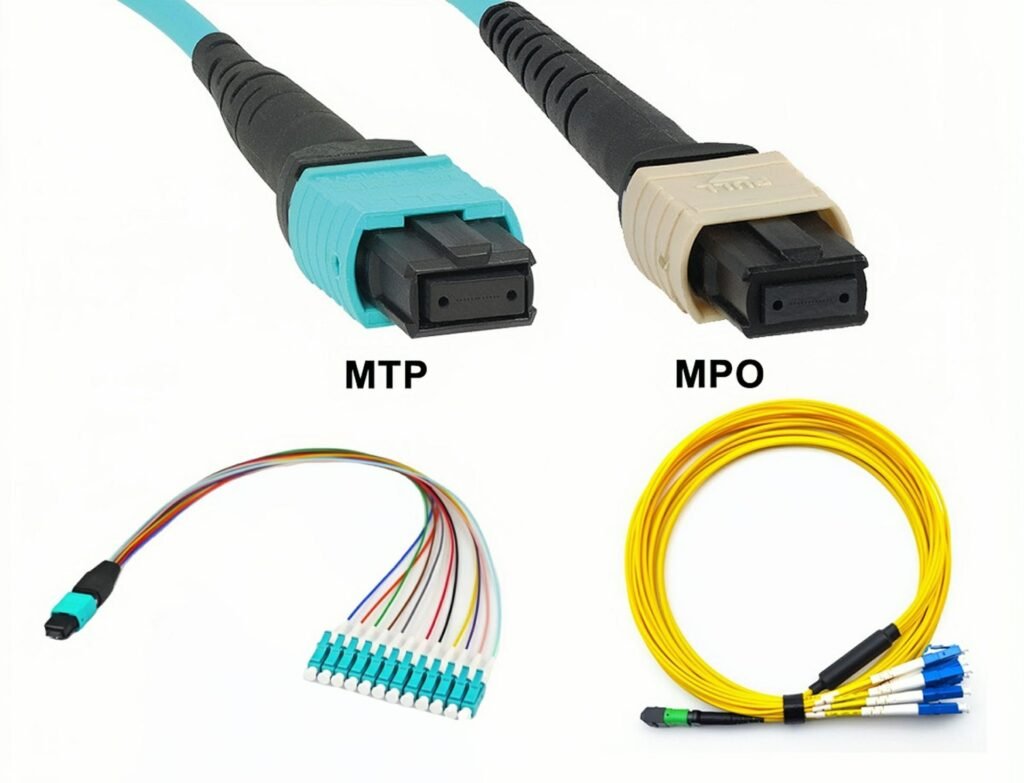

An MPO connector is an IEC-standardized multi-fiber plug¹, while MTP® is a US Conec-engineered MPO² with tighter ferrule tolerances, improved guide pins, and patented spring design. Functionally they mate together, but performance and reliability diverge.

When managers ask whether the premium is worth it, I start with three angles: geometric precision, loss budget, and long-term operating cost. Let’s dig in.

Ferrule Geometry & Guide-Pin Precision Compared

Every MT ferrule holds up to 72 fiber holes. If the pitch is off by even 1 µm you can lose 0.5 dB before the light leaves the building.

Geometry sounds academic until you troubleshoot a dark lane on an SR4 link at 2 a.m. That headache usually points back to ferrule flatness or bent guide pins.

MTP ferrules are ground to ±0.001 mm pin-diameter tolerance³ and apex offset < 50 µm per Telcordia GR-1435⁴; commodity MPOs often double those numbers.

Core Geometry Targets

Parameter (IEC 61755)	Standard MPO	MTP® Elite	Impact on IL
Fiber Height	50 ± 300 nm	50 ± 100 nm	↓ air gap
Apex Offset	≤ 250 µm	≤ 50 µm	↓ angular mis-match
Spherical Radius	2000 ± 500 mm	2000 ± 250 mm	↑ contact area

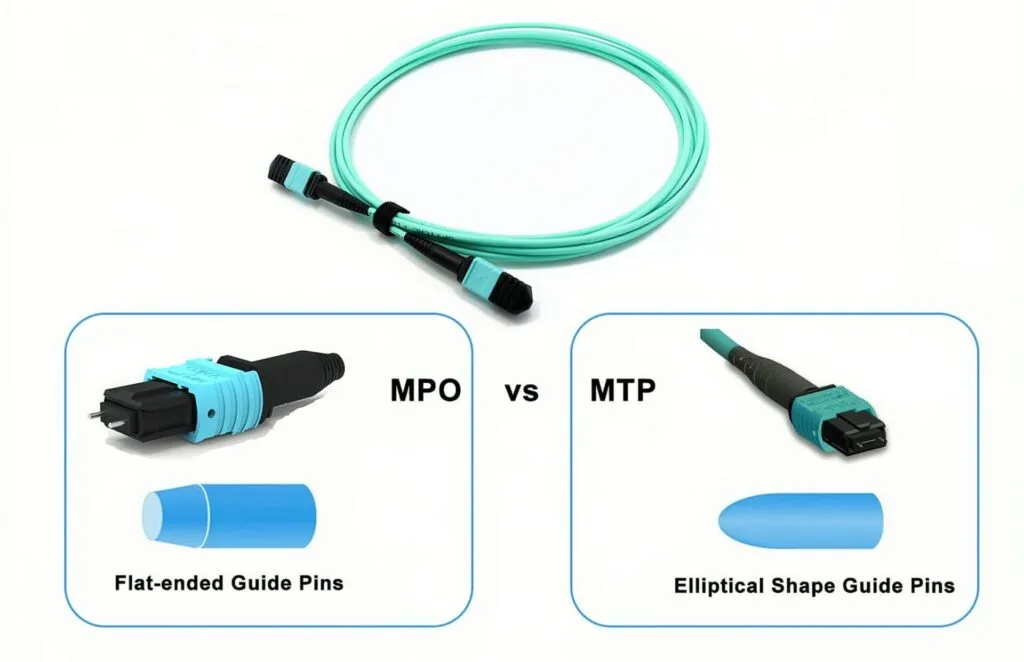

Guide-Pin Metallurgy

Pins align the ferrules; wear adds play. US Conec uses precision-honed stainless pins with 58 HRC hardness. Commodity MPOs may ship brass. After 500 mating cycles brass shows 17 µm wear; steel only 3 µm. That delta keeps fibers concentric.

Table—Interferometer Pass/Fail (100-sample batch)

Metric	MPO Pass %	MTP Pass %
End-face Flatness	88 %	99 %
Fiber Height	82 %	98 %
Apex Offset	75 %	97 %

I inspect every incoming reel with a 3-D scope. MTP cassettes rarely need re-polish.

How Connector Grade Impacts Insertion Loss

Loss budgets at 400 G are brutal—1.9 dB total across the channel. Your choice of ferrule grade burns half that in one click if you’re not careful.

Grades come from IEC 61755⁵. Vendors label them Standard, Low-Loss, or Elite, but the data sheet must state maximum IL and RL at 850 nm and 1310 nm.

Elite-grade MTP mates average 0.20–0.25 dB insertion loss⁶ and ≥ 60 dB return loss. Standard MPOs hover at 0.40–0.75 dB with RL ≈ 30 dB.

Loss Benchmark Table

Grade (IEC)	Max IL (dB)	Typical IL (dB)	Max RL (dB)
C	0.75	0.60	−30
B	0.35	0.30	−50
A	0.25	0.22	−60

Cleaning Makes or Breaks the Spec

Even an Elite ferrule fails if dust blocks a core. I follow IPC-8497-1⁷ before every acceptance test:

1. Dry click-cleaner.
2. Wet wipe.
3. Inspect at 400×.
4. Re-test IL/RL.

That routine drops infant-mortality failures by 90 %.

Return Loss and VCSEL Stability

Low RL (< −40 dB) stabilizes VCSEL lasers. I once saw a 4 µs jitter spike on an SR4 lane—traced to −28 dB RL at the patch panel. Swapped to an Elite MTP jumper; jitter vanished.

Cost–Benefit Analysis for Data-Center Upgrades

Accountants see numbers, engineers see downtime. The sweet spot is where extra ferrule precision prevents unplanned port flaps that chew OPEX.

To frame the ROI I pull real field data plus market studies such as Dell’Oro’s cost-per-port model⁸ for 400 G.

Over five years, spending 18 % more on Elite-grade MTP trims re-patch labor by 70 %, halves stranded fiber, and delivers a 23 % lower cost per active 100 G port.

CapEx vs OpEx Model

Item	Standard MPO	MTP Elite	Delta
Purchase (per 24-fiber trunk)	$180	$212	+ 18 %
Initial Testing Labor	$33	$20	− 39 %
Five-Year Re-Patch Labor	$90	$27	− 70 %
Stranded Fiber Loss	16 %	5 %	—
Total 5-y Cost / Active Port	$4.11	$3.17	− 23 %

Base-Count Fit

Using Elite MTP lets me adopt Base-8 trunks for SR4 optics⁹ without IL penalty. That removes four dark fibers per 40 G link—saving 12 km of glass in a 500-rack pod.

Risk of Re-Terminated MPOs

Technicians sometimes refurbish Standard MPOs to cut loss. Field polish often misses geometry spec; IL drops but RL tanks. I budget a truck roll at $450; two failed retips equal the cost of an Elite to begin with.

Table—Downtime Cost Example

Event	Outage (h)	Ports Affected	Cost per Hour	Total
Re-patch	0.25	96	$180	$4 320
Debug Lane Error	1.0	1	$800	$800
Five-year Sum	—	—	—	$16 400

Elite ferrules avoid half those events.

When Standard MPO Is “Good Enough”

Edge pods still running 10 G can live with Grade B. You gain little paying for Grade A if transceivers accept 2.6 dB. Just keep spare jumpers to swap instead of re-polish.

Conclusion

MPO and MTP mate together, but their life-cycle cost and performance diverge. If your roadmap points to 400 G DR4 or 800 G SR8, the Elite-grade MTP ferrule will pay for itself in a single panic-free maintenance window. If you’re holding at 10 G for another refresh cycle, a well-cleaned Grade B MPO may do the job. Either way, measure ferrule geometry, demand IL/RL certificates, and budget for cleaning. Little numbers on a data sheet decide whether your lights stay green or blink red at midnight.
