How to Keep MTP®/MPO Connectors Clean: Essential Tools and Maintenance Tips
⚡ Introduction
Even the best-designed fiber network can fail because of a simple contaminant.
Dust, oil, and microscopic debris on an MTP®/MPO connector endface can cause signal loss, high insertion loss (IL), or even complete network failure.
At ABPTEL, we specialize not only in fiber assemblies and data center solutions but also in essential MTP®/MPO accessories — including cleaning tools that ensure long-term performance, reliability, and safety in your network infrastructure.
This article explores why cleaning matters, different methods for fiber maintenance, and the top tools you can use to keep your MTP®/MPO connectors spotless and efficient.
🧠 1. Why MTP®/MPO Connector Cleaning Matters in Data Centers
Every optical link in your data center — whether it’s a MTP/MPO Trunk Cable or a MTP/MPO Cassette — depends on physical contact between ferrule endfaces.
When dust, oil, or residue interferes with that contact, optical loss rises, reflections occur, and the signal integrity collapses.
💥 Impact of Contaminants
| Type of Contaminant | Typical Cause | Effect |
|---|---|---|
| Dust particles | Airborne contamination, poor storage | Increased insertion loss (IL) |
| Oil residue | Fingerprints during installation | Surface film scattering light |
| Moisture or debris | Humidity, cleaning errors | Back reflection (high RL) |
| Fiber scratches | Improper cleaning tools | Permanent connector damage |
A single particle smaller than a grain of sand can block light in a 12-, 24-, or 48-fiber MPO connector, impacting multiple channels at once.
🚨 Common Symptoms of a Contaminated Connector
- Sudden link drops or link flapping
- Higher than expected insertion loss readings
- Signal reflection spikes detected by OTDR
- Poor performance under high-speed (400G/800G) conditions
That’s why every MTP®/MPO connector must be inspected and cleaned before mating, following the “Inspect-Clean-Connect” process recommended by IEC 61300-3-35【^1】.
💧 2. Dry vs. Wet Cleaning: Which Method Is Right for MPO Connectors?
There are two primary ways to clean fiber connectors: dry cleaning and wet cleaning.
Each has its place — but dry cleaning is generally the safer, more consistent choice for MTP®/MPO connectors.
| Cleaning Method | Description | Pros | Cons |
|---|---|---|---|
| Dry Cleaning | Uses a specialized reel, pen, or tape to remove dust and oil without liquid. | Safe, fast, reusable; no residue | May not remove stubborn debris |
| Wet Cleaning | Combines isopropyl alcohol (IPA) and lint-free wipes to dissolve dirt. | Removes oil and sticky contaminants | Can leave residue or damage optics if misused |
🧽 Dry Cleaning: The Industry Standard
Dry cleaning is the preferred choice for high-density environments, especially for data centers running 400G and 800G networks.
The method is simple, safe, and compatible with pre-terminated fiber systems.
Most professionals use:
- Reel-type cassettes
- One-click cleaners
- Lint-free wipes (for backup cleaning)
⚠️ Wet Cleaning: Use with Caution
Wet cleaning may be necessary when facing stubborn oil stains or residue from field termination, but improper use can trap liquid inside the ferrule and cause damage.
To learn more about proper cleaning procedures, see Fiber Optic Connector Cleaning Guide by IEC/SC 86B Working Group【^2】.
🧰 3. Must-Have MTP®/MPO Cleaning Tools for Technicians
Keeping your MTP®/MPO connectors clean doesn’t require complicated devices — just the right tools for the job.
Here are some of the most effective and commonly used tools across telecom and data center industries.
🔹 Fiber Cleaning Cassette (Reel-Type Cleaner)
Also known as a reel-type fiber optic cleaner, the Fiber Cleaning Cassette uses a microfiber cloth roll to remove contaminants from ferrule endfaces.
Each reel can be used more than 400 times, and its anti-static fabric prevents further contamination after cleaning.
Recommended Use:
- Suitable for SC, FC, ST, LC, MU, and MTP®/MPO connectors
- Best for field installation, inspection, and maintenance
- Ideal for both male and female connectors
👉 Available under: MTP®/MPO Accessories
🔹 NEOCLEAN-R2 Cassette Cleaner
The NEOCLEAN-R2 from NTT-AT is one of the most advanced cassette cleaners on the market.
It’s designed for SC/FC/ST/LC/MU/MTP®/MPO connectors, and provides:
- Durable, non-fraying cloth
- Smooth tape advance mechanism
- Anti-static material for stable operation
With a single turn of the winding reel, you can expose a fresh section of cleaning cloth, ensuring consistent, scratch-free cleaning.
The cleaner can be used over 400 cycles, making it an excellent investment for professional technicians.

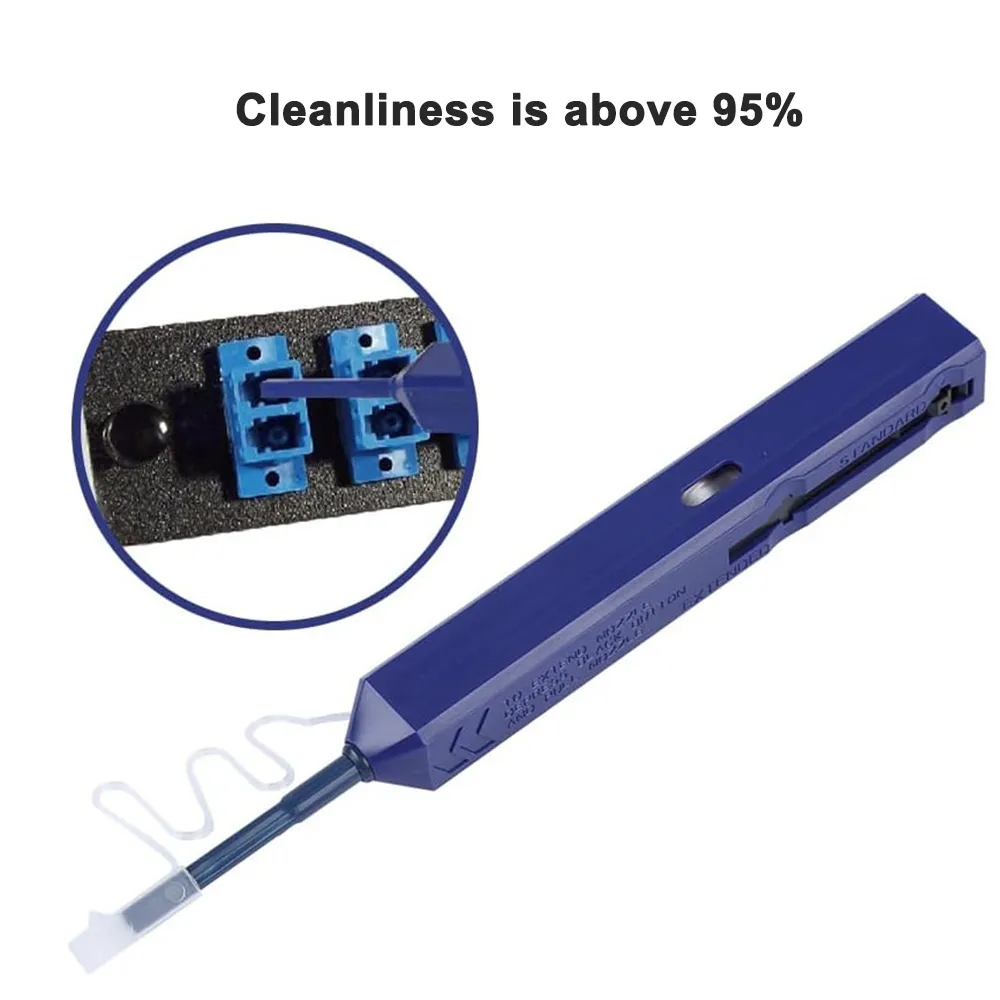

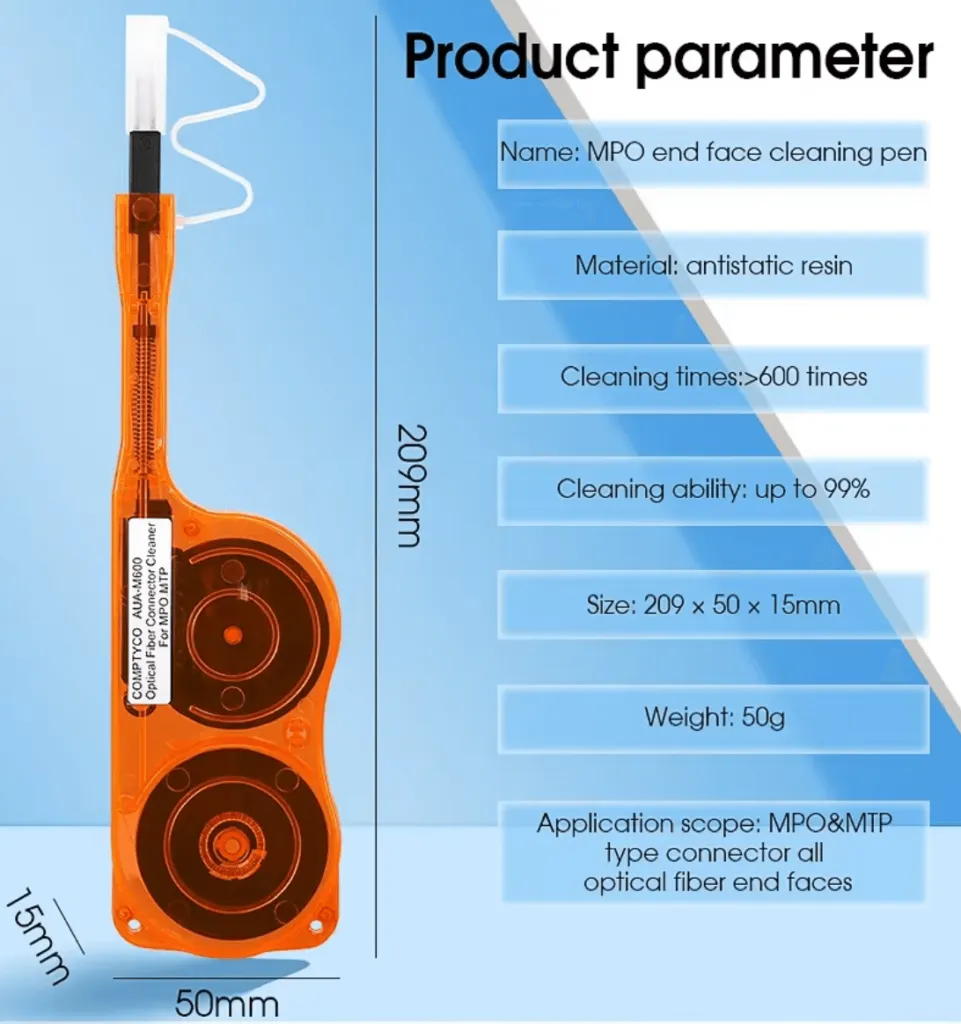

🔹 One-Click MPO Pen Cleaner
For field engineers and tight spaces, one-click MPO pen cleaners provide an easy way to clean connectors inside adapters or patch panels.
Simply insert the tip and press — the internal reel sweeps away debris from the ferrule surface.
Advantages:
- Compact and portable
- Supports both female and male connectors
- Great for multi-fiber cleaning on the go

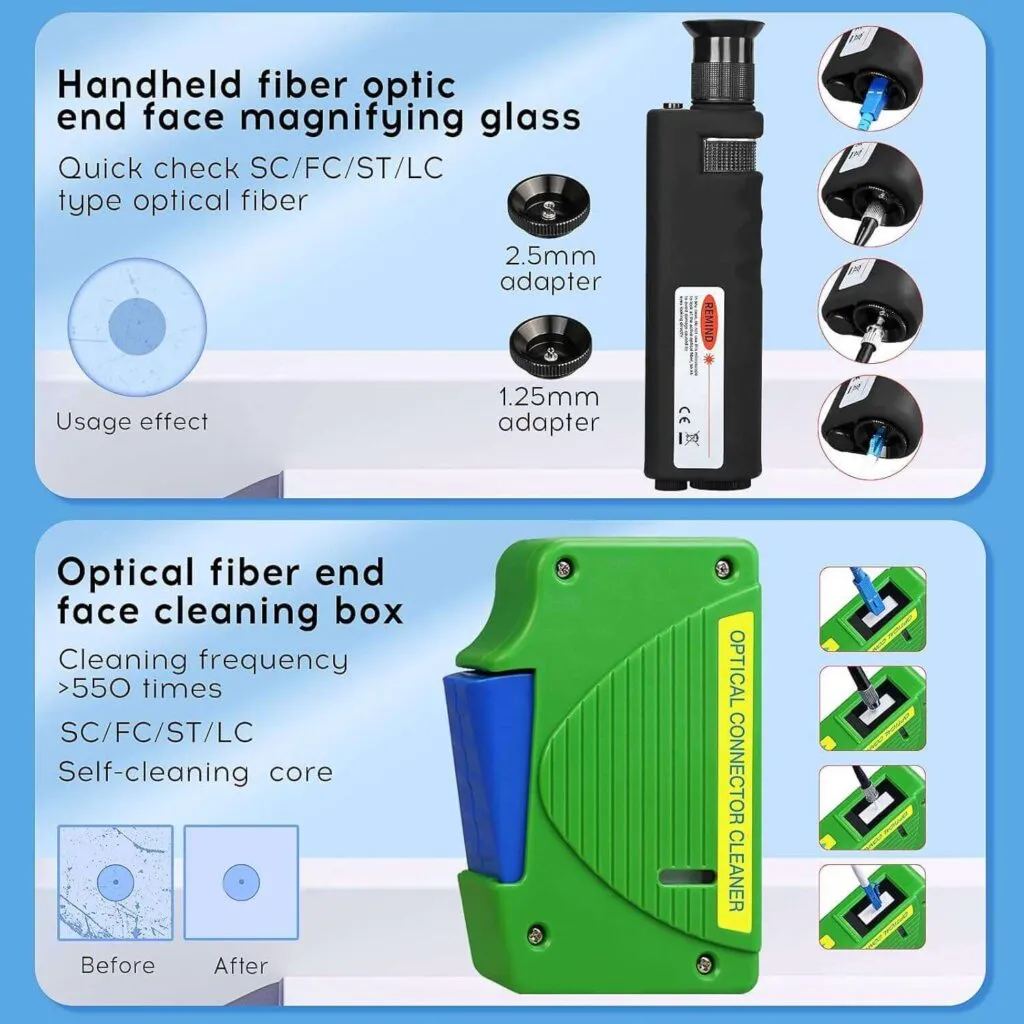

🔹 Compressed Air & Inspection Microscope
While cassettes and pens remove debris, you still need to inspect your connectors before reconnecting.
A 200x or 400x inspection microscope helps verify cleanliness, while compressed air can remove airborne dust after cleaning.
Together, they ensure your fiber link is truly ready for high-speed transmission.
🧩 4. Maintenance Best Practices to Avoid Downtime
Even the best tools can’t help if your cleaning practices are inconsistent.
Follow these maintenance strategies to keep your data center connections stable and compliant.
🧼 Inspect Before You Connect
Always inspect both connector ends — patch cords and adapters — under a microscope before mating.
If any dirt or smudge is visible, repeat dry cleaning.
🔁 Set a Regular Cleaning Cycle
| For high-density environments, schedule preventive maintenance: | Frequency | Recommended Action |
|---|---|---|
| Daily | Inspect critical MPO trunk and breakout connections | |
| Weekly | Clean high-traffic ports (switch-to-switch, cassette-to-patch) | |
| Monthly | Perform IL/RL tests and visual inspections |
🔒 Protect Unused Ports
Always use dust caps for all unused MTP®/MPO ports.
Even a short exposure to air can introduce particles that degrade performance.
🧰 Keep Spare Tools On-Site
Large-scale data centers often stock spare cleaning pens, cassettes, and pre-saturated wipes for emergency maintenance.
🔍 Partner with a Trusted Supplier
ABPTEL’s optical solutions include IL/RL-tested MTP®/MPO assemblies, ensuring every cable and connector meets rigorous performance standards.
Each batch undergoes visual endface inspection before shipment.
👉 Discover: Pre-Terminated Fiber Assemblies
🚀 5. Why Choose ABPTEL for Fiber Cleaning Solutions
As a global provider of fiber optic connectivity and data center solutions, ABPTEL not only manufactures cables but also provides comprehensive cleaning and maintenance kits to ensure your optical system stays reliable.
🌐 Our Advantages
- Factory-terminated MTP®/MPO assemblies, IL ≤ 0.35dB
- OEM/ODM fiber optic accessories and cleaning kits
- Compatibility with Cisco, Arista, Juniper, and HPE systems
- 16 manufacturing lines with strict endface inspection
- Fast delivery and global technical support
💬 ABPTEL Philosophy
We believe that fiber performance doesn’t end at production — it continues with maintenance.
That’s why we offer full-cycle solutions, from production to cleaning, inspection, and lifetime technical assistance.
